Patol 5410 Manual

Infra-red transit heat sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

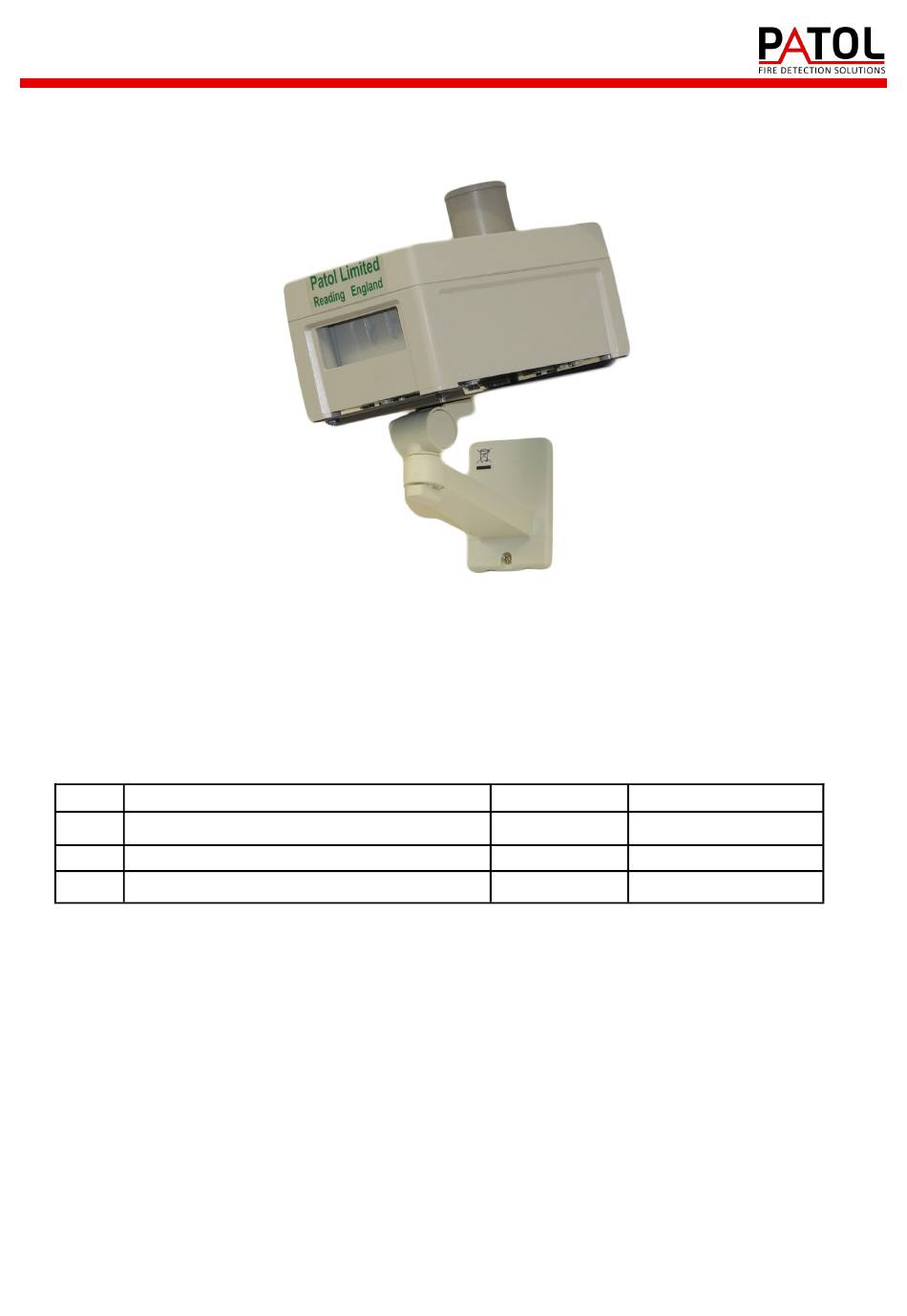

SERIES 5000
Model 5410 Infra-red Transit Heat Sensor
Issue
1
2
3
INSTALLATION - COMISSIONING
OPERATION - MAINTENANCE
Applicable to Unit Part Numbers 720-002 / 720-012
Serial Numbers 98538-01 onwards
Change
Original
Table 3 - reference corrected to D
New document format
MANUAL
Date
18/03/09
15/11/12
18/12/14
1
Remarks
Based on D1140
Page 8
Contact Details:
Patol Limited
Archway House
Bath Road
Padworth, Reading
Berkshire
RG7 5HR
Tel: +44 (0)1189 701 701
Fax: +44 (0)1189 701 700
Email: info@patol.co.uk
Web: www.Patol.co.uk
D1145-3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5410 and is the answer not in the manual?

Questions and answers

Related Manuals for Patol 5410

Summary of Contents for Patol 5410

  • Page 1 Based on D1140 Table 3 - reference corrected to D 15/11/12 Page 8 New document format 18/12/14 Contact Details: Patol Limited Archway House Bath Road Padworth, Reading Berkshire RG7 5HR Tel: +44 (0)1189 701 701 Fax: +44 (0)1189 701 700 Email: info@patol.co.uk...
  • Page 2 SERIES 5000 INDEX INTRODUCTION 1.1 General 1.2 Principles EQUIPMENT DETAIL 2.1 General Description 2.2 Relay Mode 2.3 Low Power Mode 2.4 Sensor Arrangement 2.5 Specification 2.6 Operational Programmability - SIL Switch 2.7 Connections INSTALLATION 3.1 Detection Coverage 3.2 Supply / Signal Cable 3.3 Purge Air Supply COMMISSIONING 4.1 Cable Checks...
  • Page 3 INTRODUCTION General The Patol 5000 Series of equipment is specifically designed for the protection of establishments and systems where a movement of materials with a potential fire hazard is a routine occurrence. The 5410 Sensor employs enhanced Infra-red monitoring technology that enables the detection of fire initiating materials, whilst they are being transported, and before they have reached a flame condition.

  • Page 4: Equipment Detail

    SERIES 5000 EQUIPMENT DETAIL General Description The 5000 Series system described here comprises two primary elements :- Sensor Unit - Model 5410  Air Supply / Blower Unit  The Sensor is located above the materials transit path (e.g. conveyor) by means of the adjustable mounting bracket and aligned such that the monitored hazard passes through the unit’s field of view.
  • Page 5 The unit can also be employed with the two wire connection to a remote Patol signal relay module. Refer to figures 4 & 5.

  • Page 6: Specification

    SERIES 5000 Sensor Arrangement A dual detector channel sensing module is located within an ABS housing which is mounted by means of an adjustable bracket, permitting alignment in both vertical and horizontal planes. The outer housing is equipped with an air hose spigot. The signal cable enters through glands in both outer housing and inner module and is terminated at screw terminals.
  • Page 7 SERIES 5000 Specification - Continued 2.5.2 Internal / Maintenance Features - Accessed on inner module cover removal a) Indications:- 2 off Red LEDs - One per sensor channel b) Controls:- Test Push-button Reset Push-button c) Program Switch:- Sensitivity: 4 Levels (SIL 8 Way) Alarm Operation: ‘OR’...
  • Page 8 SERIES 5000 Operational Programmability - SIL Switch An eight pole SIL switch is located within the inner sensor module which programs the unit’s operation. Most of the various option features are for special applications, factory test, commissioning or maintenance purpose. A summary of the switch functions is as follows:- 2.6.1 LED Operation - Pole 1 Normally the internal LEDs will only illuminate on ‘Alarm’...
  • Page 9 SERIES 5000 Connections 2.7.1 Relay Mode - Direct Supply - Relays Enabled 24Vdc POWER SUPPLY Fig. 8 REMOTE TEST (OPTIONAL) RESET SUPPLY POSITIVE SUPPLY NEGATIVE TEST FIRE RELAY COIL FIRE OUTPUT FAULT RELAY COIL FAULT OUTPUT PRESSURE SWITCH PRESSURE SWITCH OPTION - Green Normal LED extinguishes on:- No Link: Loss of either Electric or Air supply.

  • Page 10: Installation

    SERIES 5000 INSTALLATION Detection Coverage The angle and height of mounting determine the monitored width. Fig. 10 Fig. 11 HEIGHT HEIGHT MONITORED MONITORED WIDTH WIDTH CONVEYOR TRANSIT PATH CONVEYOR TRANSIT PATH Fig. 12 EXAMPLE 0.8m Angle -A 1.3m MONITORED WIDTH The example shown on the chart is for a sensor mounted 0.8m above the transit path at an angle of 0°.
  • Page 11 SERIES 5000 When re-fitting the inner module lid, the switch wires must be plugged into the rear board (TM 19/20), and air switch tube ’A’ must be re-fitted to the nipple located at the rear of the outer compartment. When re- fitting the outer case lid it is essential that the air switch tube ‘B’...
  • Page 12 SERIES 5000 Purge Air Supply The 5410 Sensor unit is equipped with a spigot for connection to a flexible hose. The air supply must be capable of delivering at least 5.0 ltrs/sec at this connection and maintain a minimum pressure of 4.0 mBar (1.6”...
  • Page 13 The SIL switch must be returned to the setting of 4.2 before proceeding to 4.3.3. 4.3.3 Fit Sensor inner and outer lids, switch wires & air tubes . Refer to section 3.2. Check that the air supply is connected and operational. If a 5000 Series blower is employed this must be powered. 4.3.4 Check at the Sensor that purge air is blowing from the optical aperture.
  • Page 14 SERIES 5000 Purge Air Supply, Pressure Switch and Normal LED The purge air is monitored by a pressure switch located within the inner sensor module. The operation of the switch is dependent on the differential pressure between the air input point to the Sensors outer case and the external atmosphere.

  • Page 15: Operation

    SERIES 5000 OPERATION Normal External Green Normal LED - On  Relay Mode:- Fault relay energized. Fire relay de-energized.  LP Mode:- End of line resistor connected across trigger circuit.  Alarm Condition An Alarm condition will occur on abnormal Infra-red detection by the Sensor Head. Normally this status will Latch On, however in special configurations the condition can be set to momentary operation - auto resetting after a selected delay.

  • Page 16: Maintenance

    100W Lamp Bulb - (The Sensor responds to the glass temperature - not the visible light). Domestic Flat Iron (smoothing iron). Electrical or Catalytic soldering iron. Note : Infra-red LED Torches are NOT suitable for testing 5000 Series equipment. D1145-3...
