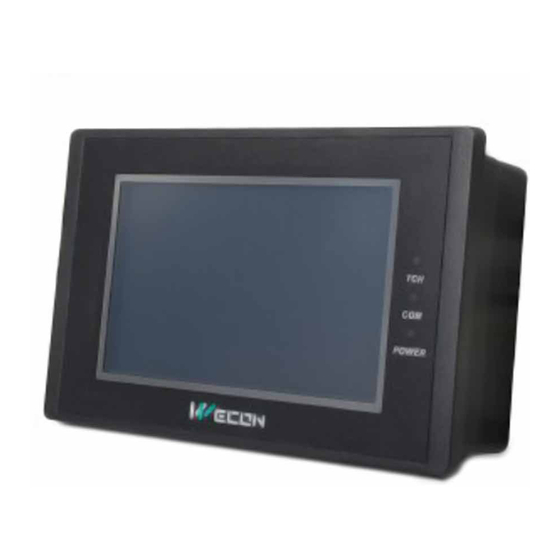

Wecon LEVI777A Manual

Embedded industrial panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

The Manual of Embedded Industrial Panel PC
www.we-con.com.cn/en/index.asp
SKYPE ID: besidinggoodmind
http://we-con.en.alibaba.com
http://www.wecon-tech.com
techinical support SKYPE ID:wecon-anne
QQ: 15506172
WECON Technology Co., Ltd.
All coprights reserved by WECON, 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEVI777A and is the answer not in the manual?

Questions and answers

Related Manuals for Wecon LEVI777A

Summary of Contents for Wecon LEVI777A

  • Page 1 The Manual of Embedded Industrial Panel PC www.we-con.com.cn/en/index.asp SKYPE ID: besidinggoodmind http://we-con.en.alibaba.com http://www.wecon-tech.com techinical support SKYPE ID:wecon-anne QQ: 15506172 WECON Technology Co., Ltd. All coprights reserved by WECON, 2014...

  • Page 2: Table Of Contents

    Directory Company Introduction ..................................3 A7 Series Industrial Panel PC ................................4 2.1 The Main Hardware Parameters ................................... 4 2.2 Software Configuration......................................4 2.3 Model and Parameters......................................6 3. A8 Series Industrial Panel PC................................8 3.1 A8 Series Hardware Features....................................8 3.2 A8 Series Software Configuration ..................................8 3.2.1 WINCE System Configuration ................................

  • Page 3: Company Introduction

    (PLC) products began in 2010 officially came into the market in June 2012. The emergence of WECON LX series PLC means that the company has again mastered a core technology in the field of automation, indicating that the product lines of WECON began to expand horizontally.

  • Page 4: A7 Series Industrial Panel Pc

    Support audio output Using the embedded installation 2.2 Software Configuration WECON LEVI series industrial penal PC can pre-install WINCE system and LINUX system according to users’ needs. A7 Series WINCE system configuration: WINCE 5.0 system NET Framework 2.0 (also support NET Framework 3.5)
  • Page 5 RDP function (Remote Desktop) (optional) OPC SERVER (optional) WIFI wireless Ethernet (optional) Serial Drivers (RS232/RS485/RS422), can support up to 921600 baud rate USB mouse, keyboard, ergonomic devices (e.g. scanner) USB mini printer (South Korea SEWOO brand) (optional) FTP SERVER (optional) CITRIX client (optional) HTTP SERVER (optional) Media Player (optional)

  • Page 6: Model And Parameters

    2.3 Model and Parameters Model/specification LEVI430T LEVI700L LEVI777A LEVI102A LEVI910T Display and Input LCD Type TFT LCD 4.3 inch 7 inch 7 inch 10.2 inch 10.4 inch Display Size LCD aspect ratio Colors 65536 colors 480*272 800*480 800*480 800*480 800*600...
  • Page 7 Interface parameters RS232/RS485/RS422 RS232/RS485/RS422 COM1 COM2 Nonsupport RS232/RS485 COM3 Nonsupport Nonsupport Extensible, Extensible, Extensible, model is model is model is LEVI777A-E LEVI102A-E LEVI910T-E Ethernet Nonsupport Nonsupport Extensible, Extensible, Extensible, model is model is model is LEVI777A-N LEVI102A-N LEVI910T-N SD card Nonsupport Nonsupport Support...

  • Page 8: A8 Series Industrial Panel Pc

    (optional) Support U disk, SD card 3.2 A8 Series Software Configuration WECON A8 Series Embedded Industrial panel PC can pre-install WINCE system, LINUX system and ANDROID system according to users’ needs. 3.2.1 WINCE System Configuration Pre-install WINCE system (all product quotations in our company are free of license fees); the standard system configuration is as...
  • Page 9 follows: WINCE 7.0 system Support. NET Framework3.5 IE browser (optional) RDP function (Remote Desktop) (optional) OPC SERVER (optional) WIFI wireless Ethernet (optional) Serial Driver (RS232/RS485/RS422), can support up to 921600 baud USB mouse, keyboard, ergonomic devices (e.g. scanner) USB mini printer (South Korea SEWOO brand) (optional) FTP SERVER (optional) CITRIX client (optional) HTTP SERVER (optional)

  • Page 10: Linux System

    3.2.2 LINUX System LINUX system can be installed in advance based on users’ needs; the standard system configuration is as follows: Operation system version: Linux-3.2.0 version CAN bus Sound card driver (optional) TCP/IP Programming tools such as QT or X11 (optional) CHROME browser or FIREFOX (optional) System desktop Available for multiple languages (Chinese, English, Japanese, etc.), can be switched online...

  • Page 11: A8 Series Model And Parameters

    JAVA Support Package (optional) FTP SERVER/HTTP SERVER (optional) Built-in standard printer driver Network printing (function) ADB dynamic debugging tool Support U disk, SD card Users can install other applications on their own Support USB keyboard, mouse, and other ergonomic equipment Note: Optional represents that ANDROID system kernel-image can be customized according to users’...
  • Page 12 CORTEX A8 720MHZ Power supply DC24 DC12-28V Voltage range Rated power <5w Operating -10℃-60℃ temperature Storage -30℃-70℃ temperature FLASH 4 GB DDR3 256 MB DDR memory Interface parameters COM1 RS232 COM2 RS485/RS422 RS232 COM3 COM4 RS485 COM5 RS485 Standard Standard configuration Standard configuration Ethernet configuration...

  • Page 13: Installation Dimension And Physical Maps

    Mounting 192*138 260*179 288*212 dimension W*Hmm Shell ABS engineering plastics (flame-retardant level) 4. Installation Dimension and Physical Maps 4.1 Installation Dimension Maps...
  • Page 14 4.3-inch Installation size 7-inch Installation size map 10.2-inch Installation size map...
  • Page 15 10.4-inch Installation size map...

  • Page 16: Physical Maps

    4.2 Physical Maps 10.2-inch physical map 4.3-inch physical map...
  • Page 17 10.2-inch physical map...
  • Page 18 10.4-inch physical map...

  • Page 19: Solutions And Applications

    5. Solutions and Applications The industrial panel PCs preloaded with the WINCE system and the LINUX system, as researched and developed in our company, have been widely applied due to complete interfaces, good open platform, fast operation, stable and reliable performance. The major applications include: Production line management: management and operation terminal for production station is used for number statistics, quality analysis or performance appraisal, and station training, etc.
  • Page 20 the operation is completed, they perform the scanning procedure again and then enter into the next process. Users require the system to achieve: 1. The process has a demonstration function so as to train workers to follow the process specification; 2.
  • Page 21 Scheme Structure of Garment Dry-cleaning Plant Implementation: 1. Use A9 Series 10.2-inch industrial panel PC, built-in WINCE system 5.0 version, and built-in Web browser; 2. Connect scanner through the USB interface for employees’ identity identification and login, and garment barcode scanning;...
  • Page 22 3. The system uses B/S structure and users can enter WEB server through a web login; 4. WEB server and database can directly communicate, inquire, enter and get access to relevant data. Achieve the above application architecture through webpage...

  • Page 23: Application Case Of Intelligent Dispatching Terminal For Forklift

    5.2 Application Case of Intelligent Dispatching Terminal for Forklift The plant is an auto part factory, and the mould warehouse has a large number of auto parts moulds. Necessary moulds for the injection molding workshop can be acquired from the specified location of the mold warehouse through forklifts; meanwhile, moulds that have been used are to be placed to the original position in the warehouse by forklifts again, so the dispatching efficiency of forklifts determines the overall working efficiency.
