Sony SA-WS888 Service Manual

SA-SS888/WS888
SERVICE MANUAL
Ver 1.0 2003. 03
• SA-SS888 is the speaker section in
DAV-S888.
• SA-WS888 is the Active Subwoofer in
DAV-S888.
• SA-SS888 is composed of following models.
As service manuals are issued for each component
model, please refer to them.
SA-SS888
Front and Rear Speakers SS-TS551
Center Speaker SS-CT551
Subwoofer (SA-WS888)
Speaker system
Speaker unit
Enclosure type
Reproduction frequency range
Amplifier section
Continuous RMS power output
Inputs
LINE IN
Dimensions (approx.)
Mass (approx.)
General
Power requirements (Subwoofer)
Power consumption (Subwoofer) 90 W (1 W in standby mode)
Design and specifications are subject to change without notice.
Sony Corporation
9-877-206-01
2003C167800-1 Home Audio Company
© 2003. 03 Published by Sony Engineering Corporation

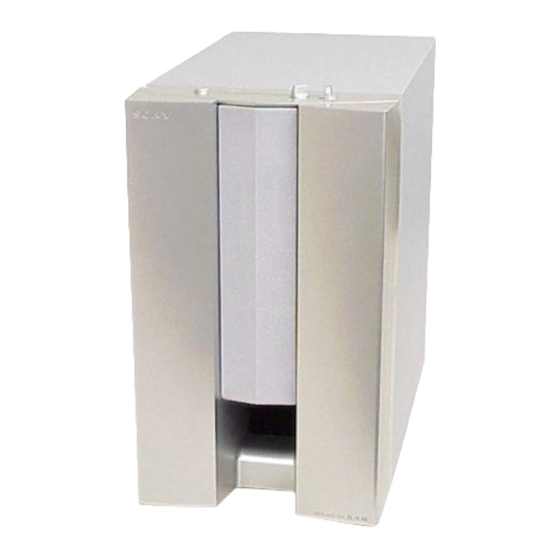

Photo : SA-WS888
SPECIFICATIONS
Active subwoofer, magnetically shielded
Woofer: 20 cm (8 inches), cone type
Advanced SAW type
26 Hz – 200 Hz
120 W (8 ohms at 20 Hz – 20 kHz, THD 10%)
Input pin jack
230 × 392 × 464 mm (9 1/8 × 15 1/2 × 18 3/8 inches) (w/h/d) incl.
front grille
13.2 kg (29 lb 2 oz)
220 – 230 V AC, 50/60 Hz
MICRO SATELLITE SYSTEM
AEP Model
UK Model
