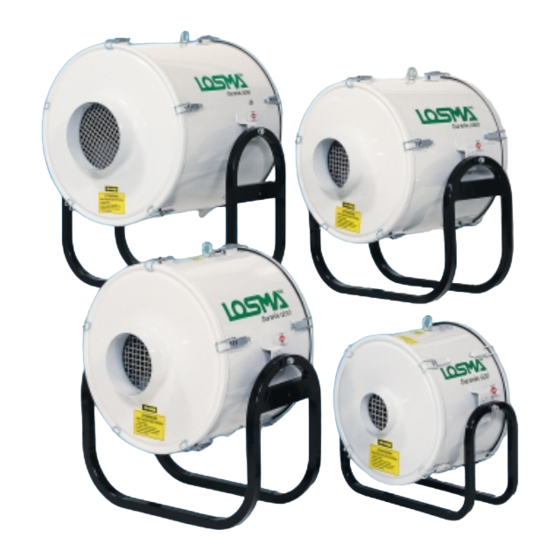

- Page 1 Mod. 600 - 1200 - 2000 - 3000 Manuale d’istruzioni Instructions manual Manuel d’instructions Handbuch Manual d’istrucciones...
-
Page 2: Table Of Contents
INDEX 1. GENERAL INFORMATION......................20 1.1. M ..........................20 ANUAL USE 1.1.2. T ........................20 YPOGRAPHIC INFORMATION 1.2. W ..........................20 ARRANTY 1.3. G ......................21 ENERAL DELIVERY NOTES 1.4. O ........................21 PTIONAL PARTS 1.5. P ......................21 RODUCT MODIFICATIONS 1.6. M .................. -
Page 3: General Information
1. General conditions Losma S.p.A. (hereinafter known as Supplier) undertakes to deliver to the purchaser products conforming to the agreement which are exempt from defects such as to make them unsuitable for the use to which products of the same type are employed and guarantees the products sold for 365 days from the date of delivery with an hourly limit of use equal to 2000 hours. -
Page 4: General Delivery Notes
1.5. Product modifications LOSMA S.P.A. reserves the right to make, at any moment and without notice, any change necessary to improve its products or to meet requirements of manufacturing or commercial nature. -
Page 5: General Safety Information
Note LOSMA S.P.A. does not accept any responsibility for any direct or indirect damage to persons or things resulting from incorrect or different use of the air filter than those prescribed in the present manual. -
Page 6: Different Models And Uses
• Suction of explosive substances in an explosive atmosphere. Note LOSMA S.P.A. declines any responsibility for damage to persons or things caused by "Non-considered uses" of the air filter unit. 1.12. Requests of technical assistance For technical assistance, please contact: LOSMA GmbH LOSMA S.P.A. -
Page 7: Technical Characteristics
2.2. Technical characteristics See: “Enclosure Technical Specifications". 3. Handling and storage 3.1. Handling of packed units Every unit is packed in highly resistant carton boxes provided with handles. When the shipment consists of more boxes, they are placed on EUR pallets, firmly tied up with hoops and fully wrapped in polyethylene film. Warning! Danger! Forklift operators, crane-operators and other adequately trained personnel must undertake the handling and transportation of the air filter units. -
Page 8: Minimum Spaces For Installation
• Temperature: from 5°C to 40°C • Relative humidity: from 30% to 85% • Maximum installation height: 1000 m a.s.l. Warning! LOSMA S.P.A. declines any responsibility for damages to the units installed in working conditions different than those specified above. -
Page 9: Installation
4.3. Installation To mount the air filter, as well as the material supplied in the assembly kit, the following components are also necessary: • Flexible suction hose TFM of adequate length + 2 hose clamps • Flexible suction hose diam. 25 mm, TFD of adequate length + 1 hose clamp •... -
Page 10: Determination Of The Functioning Position: Horizontal Or Vertical
Important! The packaged equipment is always shipped with the screws loosened. This ensures that the Ø6mm screw, which restricts the rotation, does not get damaged during transportation or when the product is being extracted from the packaging. Once the product has been extracted from the packaging, it is possible to choose the position, as shown in the illustration. - Page 11 Installation in vertical position (drawing 4) • Insert the pipe TFM on the connection plate PRT and secure it using a hose clamp. In alternative, the pipe can be inserted directly into the hole made on the machine tool cabin. •...
-
Page 12: Electrical Connections
4.4. Electrical connections It is advisable to keep the air filter in operation during the entire work shift, in order to avoid frequent starting and stopping. In this way the air filter ensures the best performance and is not subject to unnecessary and detrimental thermal and mechanical stress. -
Page 13: Inspection
4.5 Inspection Each air filter is carefully inspected at the factory. The inspection certificate is delivered together with the present manual. 5. Use Danger! Do not start the air filter if the synthetic rear filter is missing. 5.1. Starting up and stopping On request a running/stop switch is available to be mounted on the machine tool control panel. -
Page 14: Programmed Maintenance
6.3. Programmed maintenance In order to ensure the maximum efficiency of the air filter it is necessary to undertake a preventive programmed maintenance at regular intervals. The programmed and preventive maintenance operations consist in the periodic cleaning or substitution of filters, seals, etc. Note Consult enclosure "Spare parts list"... -
Page 15: Programmed Maintenance Table
6.3.1. Programmed maintenance table DARWIN 500 h 1000 h 1500 h 2000 h DARWIN T FPS / FPSE Clean / replace Replace Clean / replace Replace Replace Replace TURBINE Clean Clean Clean Clean DARWIN M FCS / FCSE Replace Replace FPS / FPSI / FPSE Replace Replace... -
Page 16: Rotor, Seal And Filter Maintenance
6.3.2. Rotor, seal and filter maintenance Warning! Do not forget any objects or tools inside the air filter. DARWIN M • Release and remove the rear lid. • Extract the FPS filter (for D 3000: FPSE, the net and FPSI) and the net from the rear lid. •... -
Page 17: Filter Cleaning
6.3.3. Filter cleaning Note The used filters and the liquids used for washing are special waste. Take this waste to authorised collection and disposal centres. It is advisable to regularly replace the synthetic filters as indicated in the Programmed Maintenance Table (item 6.3.1). If the filters structure is fully integral, it is possible to regenerate them (instead of replacing them) by putting them into a solution of industrial detergent and water for about 12 hours. -
Page 18: Motor Maintenance
• The correct assembly of filters and seals. • The correct assembly of electrical connections. • That there are no objects or tools inside the air filter. • Check through the suction mouth that the direction of rotation of the air filter rotor corresponds to that indicated by the arrow-label (the rotor must rotate in a clockwise direction). -
Page 19: Structural Checks
The synthetic material parts. Note LOSMA S.P.A. does not assume any responsibility for damage to persons or things resulting from reutilization of individual parts of the machine for operations or in assembly condition others than the original ones for which the machine was... - Page 22 SCHEMA DI FORATURA - DRILLING SCHEME - BOHRSCHEMA SCHEMA DE PERCAGE - TABLA DE TALADRADO Montaggio verticale/vertical installation/verticale Ausrichtung/montage verticale/montaje vertical Mod. φ E φ F φ G φ I φ M D 600 100 M 8/φ10 D 1200 122,5 137,5 125 M 8/φ10 D 2000...
- Page 23 LOSMA S.p.A. Via E. Fermi, 16 - 24035 Curno (BG) Italia Tel. +39.035.461444 - Fax +39.035.461671 www.losma.it - e-mail: info@losma.it...
