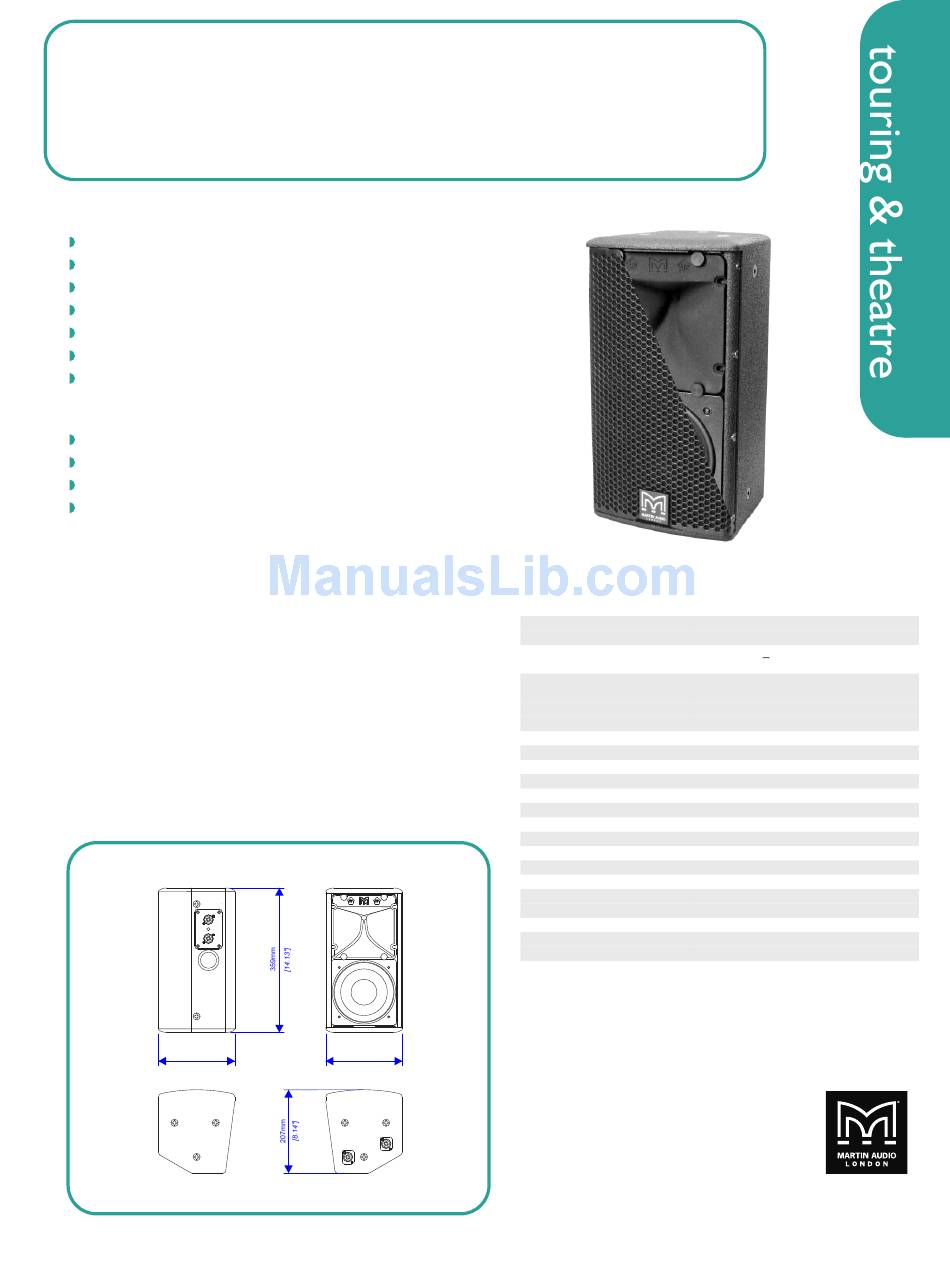

Martin Audio DD6 Datasheet

DD6
Ultra-compact Differential Dispersion™ System
PRELIMINARY DATA
features
Ultra-compact, ultra-versatile, passive 2-way system
Differential Dispersion™, rotatable horn, configurable without tools
Portrait or landscape surface mount or stage monitor use
High-linearity 6.5" (165mm) bass / mid driver
0.5" (12.5mm) exit HF driver
Magnetically retained, quick-release perforated steel grille
Comprehensive mounting and flying options
applications
Theatre & live sound reinforcement
Corporate audio-visual events
Houses of worship
Front fill and under-balcony
The DD6's Differential Dispersion technology provides an advanced
solution to the requirements of even coverage over wide angles and
medium throw distances.
Designed using Martin Audio's in-house BEM (Boundary Element Method)
tools, the short throw horizontal dispersion of the horn is 120°, narrowing
to 90° as throw increases. Vertically, the horn covers 60º, with greater
output above the horizontal centre plane.
The combination of narrower horizontal dispersion and greater output
above the horn's horizontal centre plane creates progressively more HF
output as the throw distance increases. The resultant dispersion pattern is
ideally suited to covering audiences located on flat or gradually sloping
surfaces.
overall dimensions
190mm
[7.48"]
190mm
[7.48"]
DD6
technical specifications
TYPE Differential Dispersion™ ultra-compact,
multi-angled, two-way passive
FREQUENCY RESPONSE 70Hz-20KHz +3dB
-10dB @ 55Hz
DRIVERS 6.5" (165mm)/1.75" (44mm) voice coil
neodymium magnet LF driver
0.5" (12.5mm) exit neodymium magnet HF
compression driver
RATED POWER (a) 150W AES, 600W peak
RECOMMENDED AMPLIFIER 400W-1200W into 4 ohms
SENSITIVITY (b) 91dB
MAXIMUM SPL (c) 113dB continuous, 119dB peak
NOMINAL IMPEDANCE 16 ohms
DISPERSION (-6dB) 90°-120° horizontal, 60° vertical
CROSSOVER 2.7kHz passive
ENCLOSURE 7 litre, multi-laminate birch ply
FINISH Textured black polyurethane coating
PROTECTIVE GRILLE Black perforated steel
CONNECTORS 4 x Neutrik® NL4, connected in parallel
INPUT CONNECTIONS 1+,1- or 2+,2- selected via rear-mounted
switch
FITTINGS 10 x M8 threaded inserts
DIMENSIONS (W) 190mm x (H) 359mm x (D) 207mm
(W) 7.5inx x (H) 14.1ins x (D) 8.1ins
WEIGHT 5.9Kg (13lbs)
Notes
(a) AES Standard ANSI S4.26-1984
(b) Measured in open (4 ) space at 2 metres with 1 watt input, using band limited
p
pink noise, then referred to 1 metre
(c) Measured in open (4 ) space at 2 metres using band limited pink noise, then
p
referred to 1 metre
