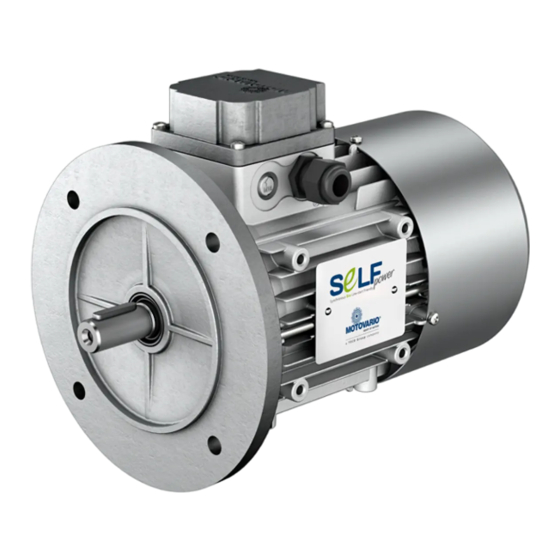

USE AND MAINTENANCE MANUAL FOR ELECTRIC MOTORS CONTENTS Chapter Scope General safety warning Compliance with EU directives – CE marking Electric motor identification Mechanical installation Electrical installation and start-up Incremental encoder Forced ventilation Electric motor protection Maintenance / spare parts Assembly/disassembly instructions Disposal and recycling Storage... -
Page 4: Scope
"Machinery Directive" and the EMC Directive is the responsibility of the machine's manufacturer. According to EC Regulation no. 640/2009, starting from 01/01/2015 the motors of the TH series (IE2, high efficiency) with power greater than or equal to 7.5 kW can be started in the European Union only if supplied by an inverter. -
Page 5: Electric Motor Identification
USE AND MAINTENANCE MANUAL FOR ELECTRIC MOTORS 4. ELECTRIC MOTOR IDENTIFICATION The electric motor is equipped with a metal silk-screen printed and/or punched nameplate or an adhesive label glued on metal support. Symbols and abbreviations are detailed in the following page. NAMEPLATES THREE-PHASE MOTOR SINGLE-PHASE MOTOR... - Page 6 (1) Serial number (21) Brake power supply (2) Year of manufacture – order number (single-phase version only) (22) running capacitor [μF] (3) Motor type code (series/size/no. poles) (23) starting capacitor [μF] (4) Insulation class (UL/CSA version only) (5) Maximum ambient operating temperature (24) “NEMA Electrical Design Classification”...
-
Page 7: Mechanical Installation
USE AND MAINTENANCE MANUAL FOR ELECTRIC MOTORS 5. MECHANICAL INSTALLATION Before installation please check that: 1) the electric motor is not visibly damaged (whether damaged in transit or during storage). 2) the information on the nameplate corresponds with the features of the electric motor and its intended use; the power supply voltage matches the mains voltage;... -
Page 8: Electrical Installation And Start-Up
6. ELECTRICAL INSTALLATION AND START UP 1) Connect the motor to the mains as shown in the diagram inside the terminal block box (the wiring diagrams are also included at the end of this manual). 2) Do not connect up or start the motor if the wiring diagram is absent. -
Page 9: Incremental Encoder
USE AND MAINTENANCE MANUAL FOR ELECTRIC MOTORS 7. INCREMENTAL ENCODER Motors can (optionally) be supplied with standard or low-resolution incremental encoders (for further information see product catalogue). Safety information 1) Wiring must always be done by fully qualified specialist personnel. 2) Shut off the power to all equipment/machinery involved in the wiring process. -
Page 10: Forced Ventilation
8. FORCED VENTILATION It may be necessary on all model sizes to resort to forced ventilation (cooling method IC416), obtained by means of an axial flow servo-fan whose air flow rate is independent of the speed of rotation of the drive shaft. The power supply, independent from that of... -
Page 11: Electric Motor Protection
USE AND MAINTENANCE MANUAL FOR ELECTRIC MOTORS 9. ELECTRIC MOTOR PROTECTION All electrical equipment must be protected against damage deriving from trouble or abnormal operation. The following phenomena must be taken into consideration: - overcurrents deriving from short-circuiting; - overload currents; - break or dip in supply voltage;... -
Page 12: Maintenance / Spare Parts
In the event that the motor needs to be disassembled and its internal components examined, then qualified personnel must be enlisted who use appropriate equipment and follow the relevant procedures; Motovario is in no way responsible for any damage or injury that results from the improper use of its parts by unauthorised personnel. Removing parts without the manufacturer's authorisation voids the warranty and the manufacturer is not liable for any claims resulting therefrom. -
Page 13: Storage
USE AND MAINTENANCE MANUAL FOR ELECTRIC MOTORS 13. STORAGE The motors must be stored in temperate, dry, clean conditions away from bad weather, vibrations and collisions. The shaft ends must be protected with rustproofing paint or grease (do not allow such products to come into contact with the seal rings, if present). Condensation heaters (where present) should ideally be kept energised. -
Page 14: 16 "Fm Type" Direct Current Brake
16. "FM TYPE" DIRECT CURRENT BRAKE 1. Brake magnet 2. Moving coil 3. Brake disc 4. Driving hub 5. Manual release lever (option) 6. Protective boot + O-ring (option) 7. Thrust springs 8. V-Ring (option, combined with 6) 9. Mounting bolts 10. - Page 15 "direct" or "separate" brake power respectively in Motovario supplies brakes hooked up as shown in types 1 and 2 the order. Type 3 and 4 connections must be implemented by the client.
-
Page 16: 17 "Ms Type" Alternating Current Brake
17. "MS TYPE" ALTERNATING CURRENT BRAKE 14 16 15 1. Brake magnet 2. Moving coil 3. Brake disc 4. Driving hub 5. Manual release lever (option) 6. Protective boot + O-ring (option) 7. Thrust springs 8. V-Ring (option, combined with 6) 9. - Page 17 USE AND MAINTENANCE MANUAL FOR ELECTRIC MOTORS Connecting up the MS brake the brake is powered directly off the motor's terminal block; when the motor is powered up, the brake coil is 1. Direct brake power: automatically energised and the brake is released; when power to the motor is shut off, the brake coil is automatically de-energised and the brake brakes the motor.
-
Page 18: 18 "Ml Type" Direct Current Brake
18. "ML TYPE" DIRECT CURRENT BRAKE 10° 1. Brake magnet 2. Moving coil 3. O-Ring 4. Thrust springs 5. Manual release lever 6. Mounting bolts 7. Studbolt 8. Return spring 9. Cast iron fan 10. Key 11. Gap adjuster locknut 12. - Page 19 Motovario supplies brakes hooked up as shown in types 1 and 2 to be specified as "direct" or "separate" brake power respectively in the order.
-
Page 20: Motor Power Supply Wiring Diagrams
19. MOTOR POWER SUPPLY WIRING DIAGRAM TS-TH-TP-TSX-THX-TPX series with TS-TH-TP-TSX-THX-TPX series 6 terminals with 9 terminals MOTOR - TS/TH MOTOR - TS/TH Wiring diagram Wiring diagram tightening tightening torque torque M4 = 2Nm M4 = 2Nm M5 = 3Nm... - Page 21 www.motovario.com...
- Page 22 www.motovario.com...
- Page 23 www.motovario.com...
- Page 24 www.motovario.com...
