This package includes (Style of pushbutton and chime may vary from illus-
tration):
• Wireless chime
• Wireless pushbutton w/battery
• Hardware pack
You'll need to buy 2 "C" alkaline batteries for the chime. In typical use,
alkaline batteries will last up to one year.
Case Style "A"
Case Style "B"
© 2003 DESA Specialty Products™

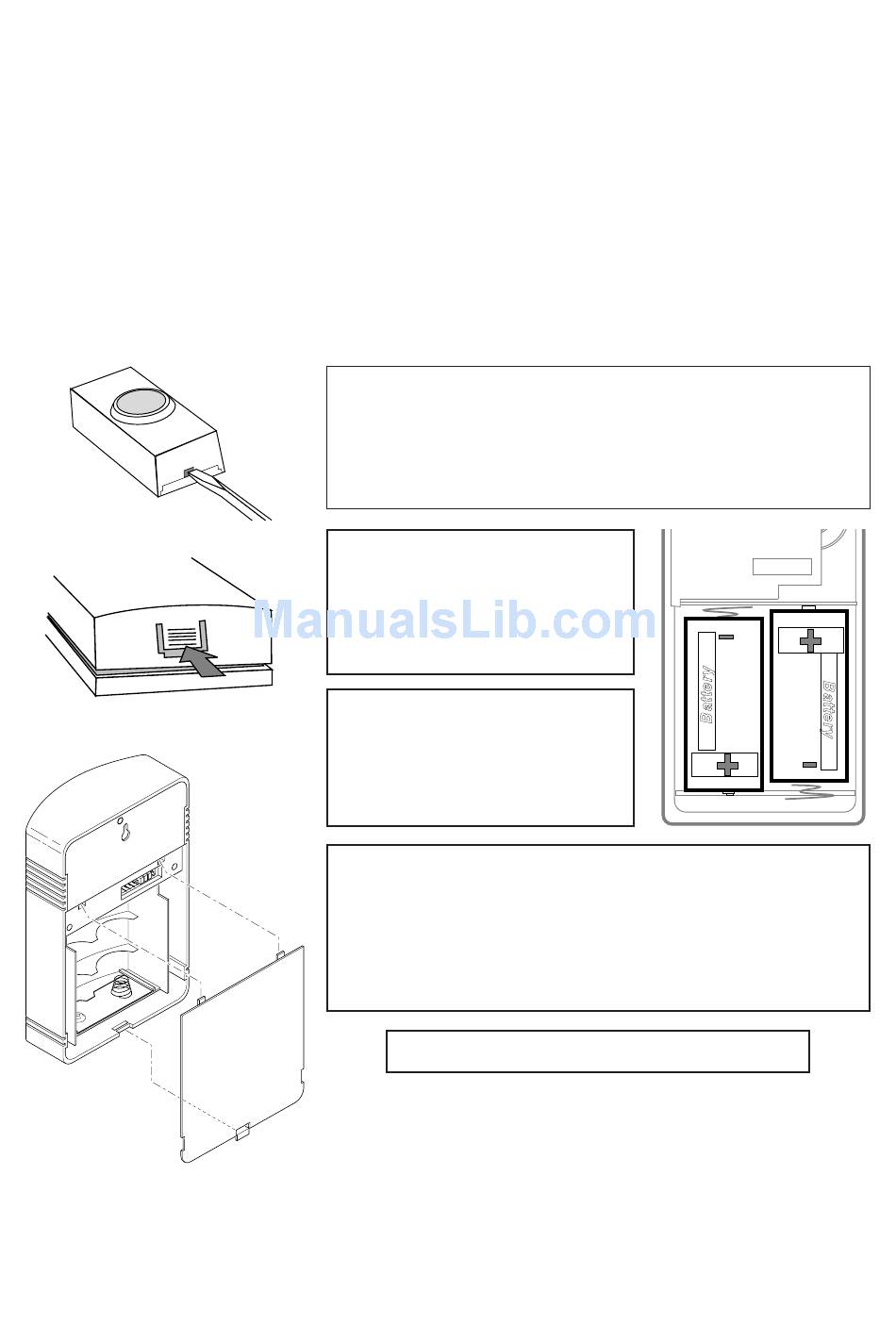

Wireless Chime
1.
Install alkaline type A23 12 volt pushbutton
battery. Remove back of case by pushing in
tab on bottom with a small screwdriver. Make
sure battery is oriented properly (see page 3).
2.
Open chime case.
Press in catch on bot-
tom of chime and lift the
case open.
3.
Install 2 alkaline "C"
batteries. Make sure
batteries are oriented
properly.
4.
Test range. Temporarily position chime and
pushbutton where you want them mounted.
Press pushbutton to verify chime and
pushbutton work properly. If chime does not
sound, see Troubleshooting.
Use either screws or double sided tape to mount
pushbutton.
To mount with screws, remove back of case by
pushing in tab on bottom with a small screwdriver.
5.
Mount pushbutton and chime.
12345678
595-5551-09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Door and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Desa Door

  • Page 1 Case Style "A" Case Style "B" © 2003 DESA Specialty Products™ Install alkaline type A23 12 volt pushbutton battery. Remove back of case by pushing in tab on bottom with a small screwdriver. Make sure battery is oriented properly (see page 3).
  • Page 2 Note: Jumpers in positions 1 through 7 must be exactly the same for both the pushbutton and chime for this sys- tem to function. Attach back of case to door jamb or wall. Snap front of pushbutton on. When attaching pushbutton using double sided tape, make sure the surface of the door jamb or wall is clean.
  • Page 3: Tune Settings

    Chime: Add a jumper to location 8. Note: All models have both front and back door tune capabilities. We recom- mend the back door use the Ding tune and the front door use the Ding- Dong tune (or Westminster tune, available on selected chimes). Models that include two pushbuttons will come factory set for front and back doors.
  • Page 4: Troubleshooting

    If the problem persists, call* for assistance at 1- 800-858-8501, 7:30 AM to 4:30 PM CST (M-F). You may also write* to: DESA Specialty Products™ P.O. Box 90004, Bowling Green, KY 42102-9004 ATTN: Technical Service Specialty Products * If contacting Technical Service, please have the following information avail- able: Model Number, Date of Purchase, and Place of Purchase.
  • Page 5 Retain receipt for warranty claims. DESA Specialty Products™ reserves the right to discontinue and to change specifications at any time without notice without incurring any obligation to incorporate new features in previously sold products.
  • Page 6: Campana Inalámbrica

    1 año. Caja Estilo “A” Caja Estilo “B” © 2003 DESA Specialty Products™ Instalar pila alcalina de botón tipo A23 de 12 voltios. Extraer la parte posterior de la caja presionando la aleta en el botón con un destornillador pequeño.
  • Page 7 Agujero de montaje 40 mm Huecos Para Montaje en Pared Caja estilo “A” Atrás Programaciones del código y del tono Nota: En la mayoría de instalaciones no será necesario que cambie ningún puente en su campana o en su pulsador. El pulsador y la campana se comunican usando un código que puede ser cambiado quitando y/o añadiendo puentes en el pulsador y la campana.
  • Page 8 3. Para cambiar el código añade y/o quite los puentes, como sea necesario. Se recomienda cambiar tan sólo un puente por vez y luego comprobar si el sistema funciona correctamente. Nota: Para que funcione este sistema, las posiciones de la 1 a la 7 de los puentes deben ser iguales tanto en el pulsador como en la campana.
  • Page 9: Análisis De Averías

    Si tiene algún problema por favor siga esta guía. Lo sentimos, pero no podemos contestar preguntas en español por teléfono. Usted puede también escribir* a: DESA Specialty Products™ P.O. Box 90004, Bowling Green, KY 42102-9004 * Si se llama al Servicio Técnico, por favor tener lista la siguiente información: Número de Modelo, Fecha de compra y Lugar de compra.
  • Page 10 Ud. Guarde el recibo para reclamos de garantía. DESA Specialty Products™ se reserva el derecho de descontinuar y de cambiar las especificaciones a cualquier momento, sin previo aviso, sin incurrir en ninguna obligación de tener que incorporar nuevas características...
  • Page 11 Boîtier, style «A» Boîtier, style «B» 595-5551-09 © 2003 DESA Specialty Products™ Installation de la pile alcaline 12 V de type A23 pour bouton-poussoir. Ôtez la partie arrière du boîtier en enfonçant la patte du bas au moyen d’un petit tournevis.
  • Page 12 trou de serrure 40 mm les deux trous du dos du boîtier Boîtier, style «A», dos Réglages du code et de la mélodie Remarque : Avec la plupart des installations, vous n’avez pas à chan- ger aucun cavalier sur votre carillon ou votre unité de bouton-poussoir. L’unité...
  • Page 13 le système fonctionne correctement. Remarque : Les cavaliers des posi- tions 1 à 7 doivent être exactement les mêmes, pour le bouton-poussoir et le carillon, pour que ce système puisse fonctionner correctement. Votre carillon sans fil peut jouer différents airs à sélectionner : Ding (une note), Ding-Dong (deux notes) et Westminster (huit notes) (Disponible sur certains modèles de carillon).
  • Page 14: Service Technique

    (N'envoyez pas de produits) Si vous éprouvez des difficultés, suivez ce guide. Vous pouvez également écrire à l'adresse suivante : DESA Specialty Products™ P.O. Box 90004, Bowling Green, KY 42102-9004 * Lors d’un appel au service technique, veuillez avoir les renseignements suivants à...
  • Page 15 à vous. Conservez le reçu pour réclamations sous garantie. DESA Specialty Products™ se réserve le droit de mettre fin à la production de ses produits ou d’en modifier les spécifications à tout moment, et elle n’est pas tenue d’incorporer les nouvelles caractéristiques de ses produits aux produits...
