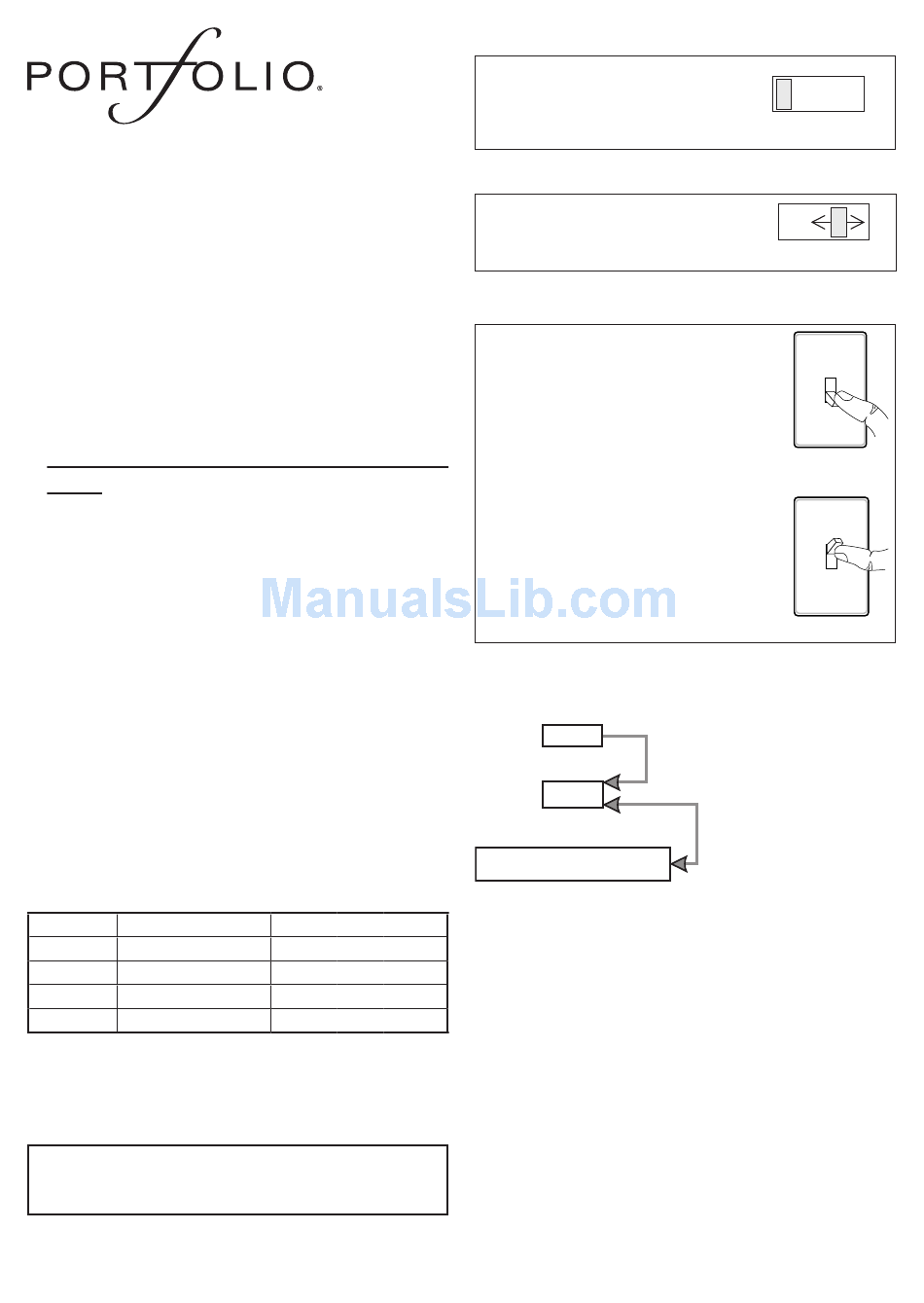

Features
• Light comes on when motion is detected.
• Automatically turns light off.
• Dusk Accent lighting.
• Photocell keeps the light off during daylight
hours.
This package includes:
• Lantern
• Easy to use universal mounting bracket
(X-Bar)
• Mounting hardware
• Wire nuts
Requirements
• The Light Control requires 120 volts AC.
• If you want to use Manual Mode, the control
must be wired through a switch.
• Some codes require installation by a
qualified electrician.
OPERATION
Mode:
On-Time
Test
5 Sec
Auto
1, 5, or 10 Min
Manual
To Dawn*
Accent
3,6 Hr. to Dawn
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
minutes for the circuitry to calibrate.
IMPORTANT: Attach receipt in case of
possible warranty issues.
© 2006 DESA Specialty Products™
Motion
®
Works: Day Night
x
Set the ON-TIME switch
on the bottom of the cover
plate to TEST.
Set ON-TIME switch to 1,
5, or 10 minutes.
Manual mode only works at
night because daylight re-
turns the sensor to AUTO.
Flip the light switch off for
one second then back on to
toggle between AUTO and
MANUAL MODE.
Manual mode works only
with the ON-TIME switch in
the 1, 5, or 10 position.
Mode Switching Summary
TEST
AUTO
MANUAL MODE
* If you get confused while switching modes,
turn the power off for one minute, then back
x
on. After the calibration time the control will
x
be in the AUTO mode.
x
x
D
B
UAL
Light comes on half bright for selected time
/
1
2
after dusk (3 hr., 6 hr., until dawn). If motion
is sensed, the light turns on full bright for the
ON-TIME (1, 5, or 10 minutes) then returns
to dim mode.
TEST
TEST 1 5 10 MIN
AUTO
TEST 1 5 10 MIN
MANUAL MODE
ON-TIME Switch at 1,
5, or 10 minutes
Flip light switch
off for one second
then back on*
Dimmer Control
®
RITE
1 Second
OFF then...
... back on.
598-1234-01
