Siemens OpenAir GDE131.1T Technical Instructions

OpenAir™ Electric Damper Actuator
GDE/GLB Series
Non-spring Return Rotary
24 Vac Floating Control
Description
Features
Application
Product Numbers
Torque
GDE131.1U
GDE131.1U/B (24 pk)
GDE131.1P
GDE131.1P/B (24 pk)
44 lb-in
GDE131.1Q
(5 Nm)
GDE131.1Q/B (12 pk)
GDE131.1N
GDE131.1N/B (24 pk)
GDE131.1T
GDE131.1T/B (24 pk)
88 lb-in
GLB131.1P
(10 Nm)
GLB131.1Q

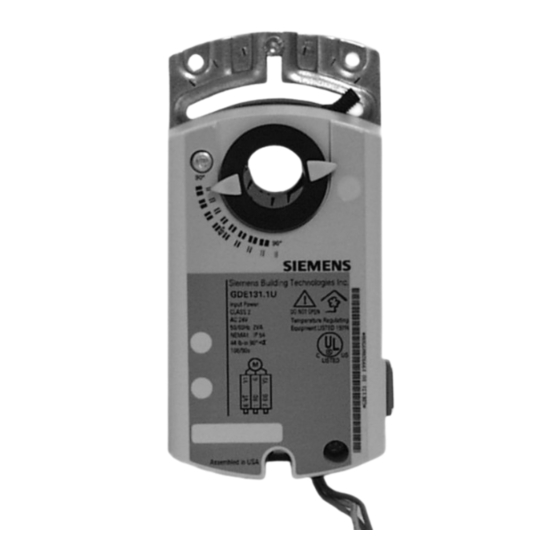

OpenAir direct coupled 24 Vac non-spring return rotary electric actuators are
designed for floating control of dampers.
•
Compact, lightweight design
•
Manual override
•
Standard and plenum models available
•
Feedback potentiometer models available
•
cUL and UL listed, CE certified
•
Independently adjustable dual auxiliary switches available
These actuators are used in constant or variable air volume installations for control
of HVAC dampers requiring up to 44 lb-in (5 Nm) or 88 lb-in (10 Nm) of torque.
Standard
Potentiometer
GDE132.1P
GLB132.1P
Technical Instructions
Document No. 155-188P25
Table 1.
With Dual Auxiliary
Switches Only
— —
— —
GDE136.1P
— —
— —
— —
— —
— —
— —
— —
GLB136.1P
— —
EA GDE/GLB-2
December 26, 2007
Pre-Cabled No Cables
—
Standard
—
—
Plenum
—
—
6 ft length
—
—
Post Header AMP
—
—
Terminal Strip
—
Plenum
—
6 ft length —
