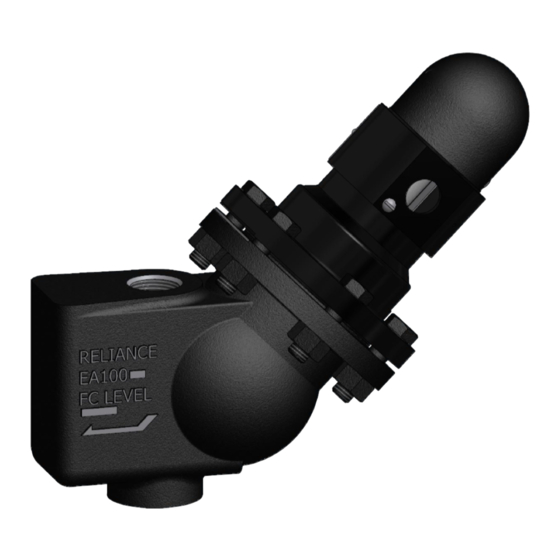

Instructions for Installing and Operating Clark‐
Reliance EA100 Series Levalarm®
This manual covers the following model numbers: EA100D, EA100S, EA100SW, EA100DP, EA100SP,
EA100DRPT, and EA100SRPV
16633 Foltz Parkway, Strongsville, OH 44149 USA
Telephone: (440) 572-1500
Fax: (440) 238-8828
www.clark-reliance.com
Section: R500.532F
Bulletin: 532F
Date: 7/1/2015
Supersedes: 532E
