Incorporated

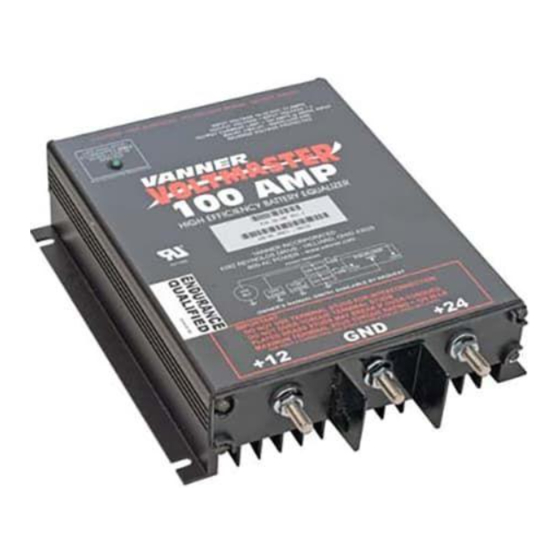

VoltMaster Battery Equalizer
Family 1
60-10B
60-20A
60-50A
60-50E
60-50M
Introduction............................................................................... 2
Specifications............................................................................. 3
Theory of Operation..................................................................... 4
Typical Applications..................................................................... 5
Installation Instructions................................................................. 7
Testing and Troubleshooting......................................................... 9
Warranty................................................................................... 15
BATTERY EQUALIZER
24 V
G N D
12 V
Family 2
60-100C
60-100D
60-100E
Table of Contents
1
Owner's Manual
Family 3
Family 4
60-60
65-60
60-60M
65-60M
60-80
65-80
60-100
65-100
OWNER'S MANUAL
Family 5
66-60
66-80
66-100
Advertisement
Table of Contents
Related Manuals for Vanner VoltMaster 66-100
Summary of Contents for Vanner VoltMaster 66-100
-
Page 1: Table Of Contents
¢ ¡ ¤ £ ¥ £ ¥ ¦ ¨ § ¢ ¡ ¤ £ ¥ £ ¥ ¦ ¨ § Owner’s Manual Incorporated VoltMaster Battery Equalizer 24 V G N D 12 V Family 1 Family 2 Family 3 Family 4 Family 5 60-10B... -
Page 2: Introduction
Incorporated Introduction Thank you for purchasing a Vanner VoltMaster Battery Equalizer. We are confident that you will be very pleased with its performance because our Battery Equalizers are designed and manufactured by skilled professionals using the highest standards in workmanship. With minimum maintenance and care, you can be assured of many years of trouble free service. -
Page 3: Specifications
¢ ¤ ¥ ¥ ¨ ¢ ¤ ¥ ¥ ¨ Specifications Incorporated Specifications Family 1 Family 2* Family 3* / Family 4 Family 5 60-60* 60-80* 60-100* Model Number 60-10B 60-20A 60-50A* 60-100E*... -
Page 4: Theory Of Operation
A key advantage of a system containing a Vanner VoltMaster Battery Equalizer, compared to a DC to DC converter, is that if the 12 volt load requires a momentary surge current which exceeds the rated capacity BATTERY EQUALIZER OWNER’S MANUAL... -
Page 5: Typical Applications
In addition to Battery Equalizers, Vanner manufactures a wide range of complementary products such as DC to DC converters, DC to AC inverters, battery charger/conditioners, and battery isolators. - Page 6 ) ¢ 0 ¤ 1 ¥ 1 ¥ 2 ¨ 3 Typical Applications Incorporated PRIVATE COACH Battery Isolator or Paralleling Switch HOUSE BATTERY SYSTEM COACH BATTERY SYSTEM +24V +24V +24V +24V VANNER VANNER Battery B Battery VANNER Battery B Battery DC to AC Equalizer Equalizer +12V +12V...
-
Page 7: Installation Instructions
Products damaged by improper torque may not be covered by warranty. Do not connect more than one conductor per available post on any model of Vanner Equalizer. Multiple wires and cables may overstress internal components, resulting in poor performance or creating hazardous conditions. - Page 8 GND terminal must be wired to the battery side of the ground-side disconnect switch circuit for the equalizer to work properly. Install the external High Current Diode, such as Vanner Model 52-75 (45 amp continuous rating) to protect polarity sensitive 12 volt loads if these loads do not already contain input diode protection. This prevents a reverse polarity on the 12 volt equipment when the battery switch is open.
-
Page 9: Testing And Troubleshooting
Vanner Repair Service Vanner offers a quick turn around factory repair service for Family 1 and Family 2 models. (Family 3, 4 and 5 models are non-repairable.) Send the unit to the address below with a note instructing us to repair it. - Page 10 I ¢ P ¤ Q ¥ Q ¥ R ¨ S I ¢ P ¤ Q ¥ Q ¥ R ¨ S Testing and Trouble Shooting Incorporated Test Procedure for Family 1 Battery Equalizers Models 60-10B, 60-20A, 60-50A CAUTION To avoid Reverse Polarity Damage to Family 1 and Family 2 Equalizers when servicing the electrical system or when performing any work which involves making battery connections always: 1.
- Page 11 T ¢ U ¤ V ¥ V ¥ W ¨ X T ¢ U ¤ V ¥ V ¥ W ¨ X Testing and Trouble Shooting Incorporated No, the Battery Equalizer electronically limits the output current to a value less than the amount required to trip the circuit breaker.
- Page 12 Y ¢ ` ¤ a ¥ a ¥ b ¨ c Y ¢ ` ¤ a ¥ a ¥ b ¨ c Testing and Trouble Shooting Incorporated Test Procedure for Family 2 Battery Equalizers 2 4 V G N D 1 2 V Models 60-100C, 60-100D and 60-100E General: Family 2 Equalizers were designed to be more energy conservative during low power...
- Page 13 d ¢ e ¤ f ¥ f ¥ g ¨ h d ¢ e ¤ f ¥ f ¥ g ¨ h Testing and Trouble Shooting Incorporated 12. If the voltage drops below the calculated value from Step 9 and the clamp-on ammeter has not jumper from approximately 0 to more than 3 amps of current wait for an additional 30 seconds.
- Page 14 i ¢ p ¤ q ¥ q ¥ r ¨ s i ¢ p ¤ q ¥ q ¥ r ¨ s Testing and Trouble Shooting Incorporated Subtract Battery A voltage from Battery B voltage and compare readings. Indicator Voltage Comparison Equalizer Status Light Stand-by Mode.
-
Page 15: Warranty
3. The product was purchased after January 1, 2000. Vanner does not warrant its products against any and all defects when: defect is a result of material or workmanship not provided by Vanner; normal wear and tear, or defects caused by misuse or use in contrary to instructions supplied, neglect, accident, reversed polarity, unauthorized repairs and/or replacements. - Page 16 ¢ € ¤ ¥ ¥ ‚ ¨ ƒ y ¢ € ¤ ¥ ¥ ‚ ¨ ƒ BATTERY EQUALIZER OWNER’S MANUAL Incorporated Vanner Incorporated 4282 Reynolds Drive Hilliard, Ohio 43026 1-800-AC POWER (1-800-227-6937) Tel: 614-771-2718 Fax: 614-771-4904 www.vanner.com...
