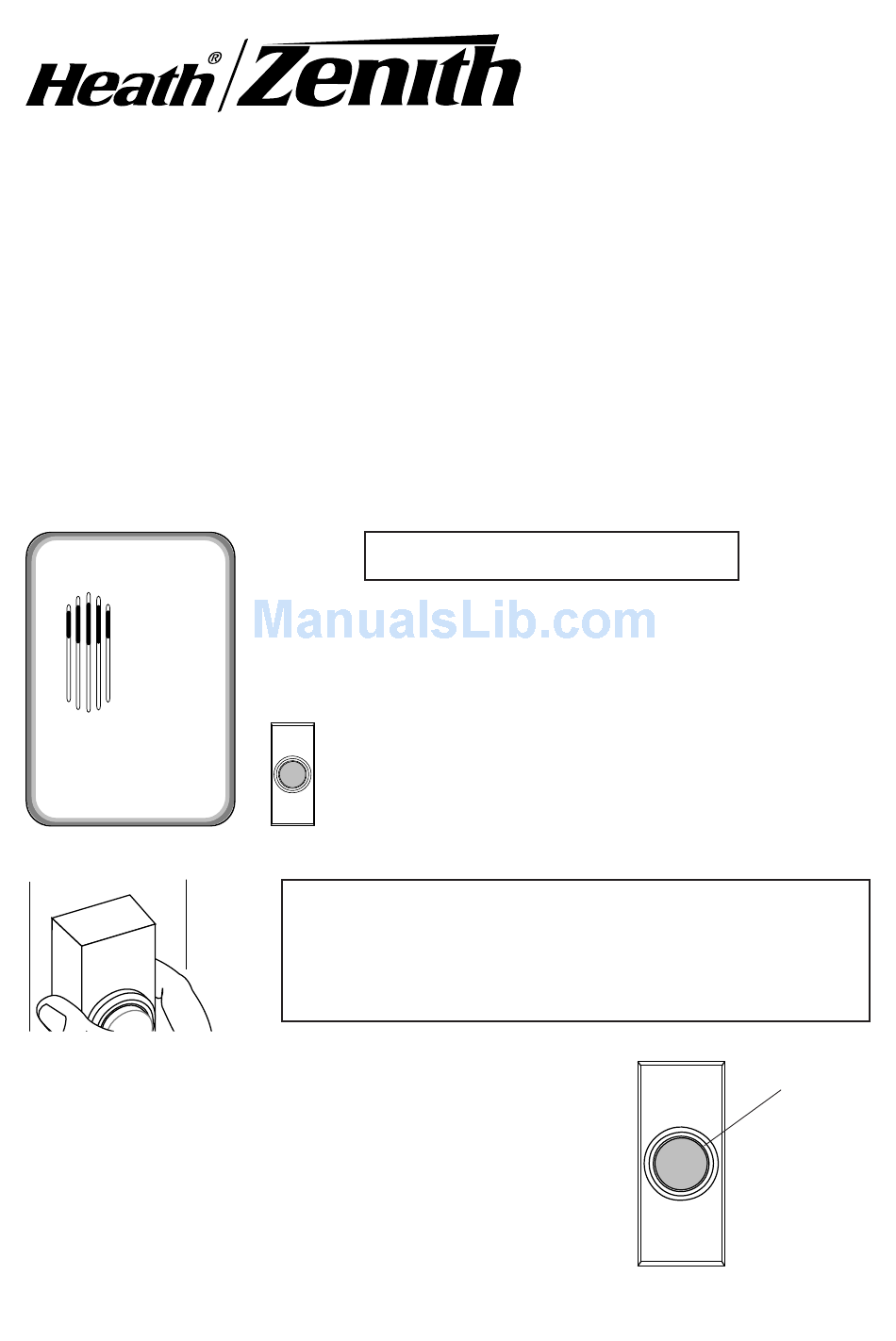

Your doorbell system includes:

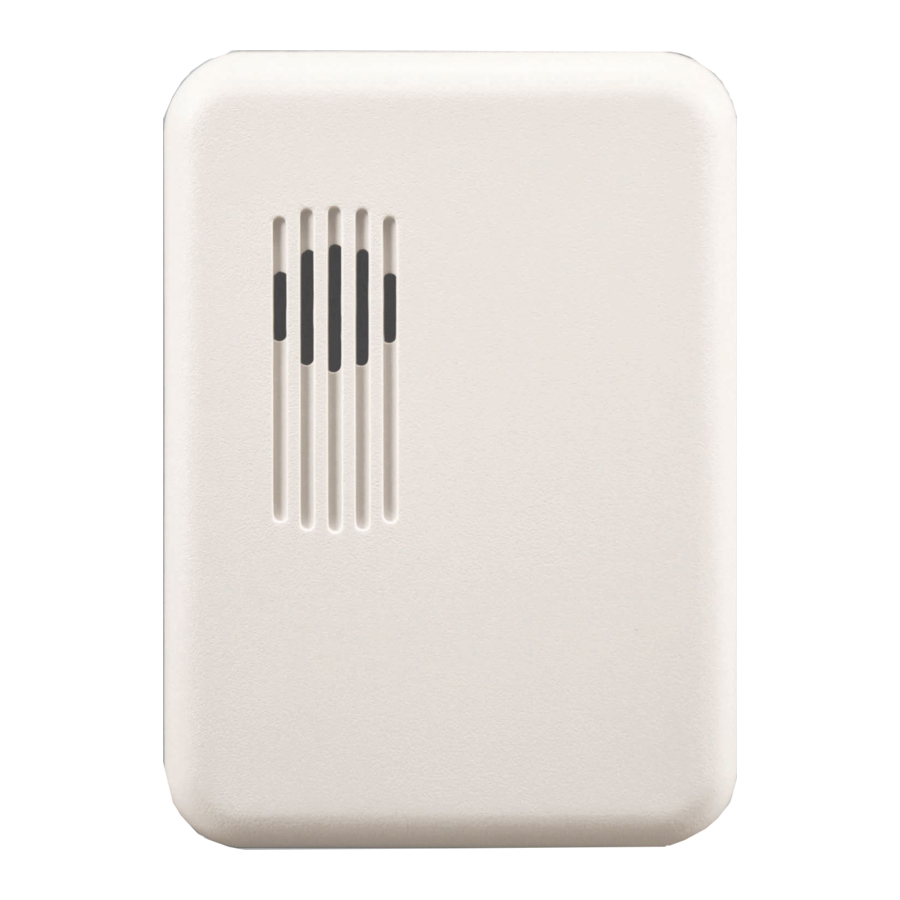

• Two plug-in doorbell chimes
• Two doorbell buttons/transmitters
with batteries
• Two hardware packs
As shipped from the factory:
• Both chimes will sound when either button is pushed. The system can be
changed so that one chime responds to the factory set door button, while
the other chime responds to a new customer setting.
• See pages 2 and 3 to change codes and sounds.
Operation
Press the doorbell button to verify that the
doorbell and chime work properly. If the chime
does not sound see the Troubleshooting guide
on page 4.
© 2003 DESA Specialty Products™
1.
Plug-in the doorbell chime.
To reduce the risk of electrical shock, this
equipment has a polarized plug (one blade is
wider than the other). This plug will fit in a po-
larized outlet only one way. If the plug does
not fit fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician
to install the proper outlet. Do not change the
plug in any way.
2.
Before mounting, test the doorbell range.
Plug-in the chime where you want to mount it
and temporarily place the doorbell button on the
doorjamb. Press the doorbell button.
Wireless
Plug-In
Doorbell
System
Doorbell Button
598-1034-02
Push
Button
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Heath Zenith 598-1034-02
Summary of Contents for Heath Zenith 598-1034-02
- Page 1 If the chime does not sound see the Troubleshooting guide on page 4. © 2003 DESA Specialty Products™ Plug-in the doorbell chime. To reduce the risk of electrical shock, this equipment has a polarized plug (one blade is wider than the other).
- Page 2 The code is factory set; however, there are 128 selectable codes that allow you to expand your system and prevent outside interference. Another wireless doorbell system or other wireless products may cause interference and the system may not function properly. Follow the instructions below for setting a new code. 598-1034-02...
- Page 3 Doorbell button: Remove jumper from location 8. Remove screw to open access door Back of Chime Used 598-1034-02 Tune Settings Doorbell Button Battery Replacement Install an alkaline type A23 12 Volt bat- tery. The positive terminal should be po- sitioned as shown.
-
Page 4: Troubleshooting
If the problem persists, call* for assistance at 1- 800-858-8501, 7:30 AM to 4:30 PM CST (M-F). You may also write* to: DESA Specialty Products™ P.O. Box 90004, Bowling Green, KY 42102-9004 ATTN: Technical Service Specialty Products * If contacting Technical Service, please have the following information avail- able: Model Number, Date of Purchase, and Place of Purchase. -
Page 5: One-Year Limited Warranty
Retain receipt for warranty claims. DESA Specialty Products™ reserves the right to discontinue and to change specifications at any time without notice without incurring any obligation to incorporate new features in previously sold products. - Page 6 Presione el botón del timbre para verificar que el timbre y la campana funcionen correctamente. Si la campana no suena, ve la guía de análisis de averías en la página 9. © 2003 DESA Specialty Products™ Inalámbrico Enchufe la campana en un tomacorriente de pared.
- Page 7 128 códigos elegibles que le permiten expandir su sistema y evitar interferencia externa. Otro sistema inalámbrico de timbre de puerta u otros productos inalámbricos pueden causar interferencia y pueda ser que el sistema no funcione correctamente. Para programar un nuevo código siga las siguientes indicaciones: 598-1034-02...
- Page 8 Botón Programación Interno del del tono Timbre Cambio de pila * Las programaciones de código del 1 al 7 deben ser iguales al botón del timbre de puerta y al de la campana 598-1034-02...
-
Page 9: Análisis De Averías
Si tiene algún problema por favor siga esta guía. Lo sentimos, pero no podemos contestar preguntas en español por teléfono. Usted puede también escribir* a: DESA Specialty Products™ P.O. Box 90004, Bowling Green, KY 42102-9004 * Si se llama al Servicio Técnico, por favor tener lista la siguiente información: Número de Modelo, Fecha de compra y Lugar de compra. - Page 10 Ud. Guarde el recibo para reclamos de garantía. DESA Specialty Products™ se reserva el derecho de descontinuar y de cambiar las especificaciones a cualquier momento, sin previo aviso, sin incurrir en ninguna obligación de tener que incorporar nuevas características...
- Page 11 NOTES/NOTAS _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ 598-1034-02 -11-...
- Page 12 NOTES/NOTAS _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ 598-1034-02 -12-...
