- Page 1 S O U N D B A R I N S TA L L AT I O N U S E R M A N U A L Origin Soundbars SB.5 SB3, SB1 & SB.5 Installation Manual...
-
Page 2: Table Of Contents
S O U N D B A R I N S TA L L AT I O N U S E R M A N U A L Table of Contents Introduction Specifications Mounting Wiring Completing The installation Sound Adjustments Troubleshooting Technical Assistance Warranty... -
Page 3: Introduction

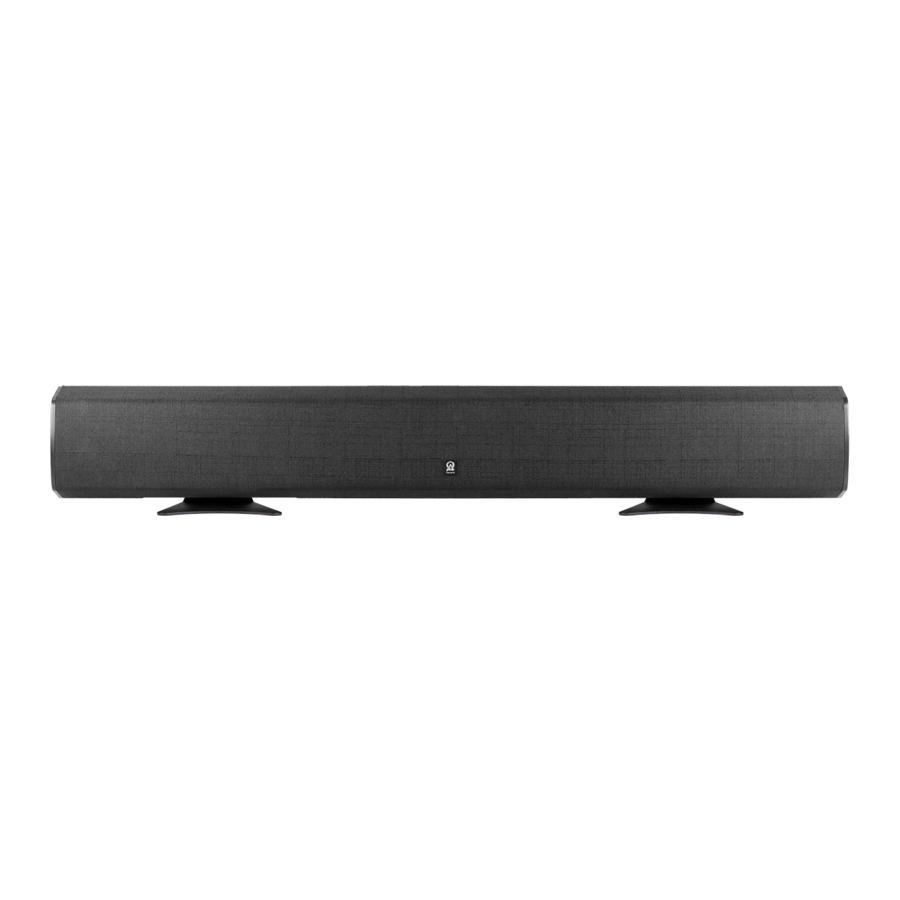

S O U N D B A R I N S TA L L AT I O N U S E R M A N U A L Introduction Thank you for choosing an Origin Soundbar/LCR. The Soundbar is a passive speaker system that contains all three channels, Left, Center and Right. The SB1 and SB.5 LCR utilize the same components but divides them into three separate enclosures to be placed on the left, in the center either above or below the video display and on the right. -
Page 4: Specifications
S O U N D B A R I N S TA L L AT I O N U S E R M A N U A L SOUNDBAR SPECIFICATIONS Model: SB3 Part: SBC3000 • Extruded Aluminum Cabinet • Frequency Response: 65Hz •... -
Page 5: Mounting
(See diagram 3) Make sure the hole is large enough for all three wires to pass through. The SB3 Soundbar requires a single hole for all three wires. The SB1 and SB.5 LCR requires a hole for each speaker. - Page 6 S O U N D B A R I N S TA L L AT I O N U S E R M A N U A L FINISHED INSTALLATION Listening area Ensure Template is Level Before Drilling Pilot Holes Pilot Hole Pilot Hole Wall Mount Template...
-
Page 7: Wiring
Once the mounting screws are installed and the wire hole has been drilled it is time to run the wires. The SB3 Soundbar requires three pair of speaker wires while the SB1 and SB.5 LCR will have an individual pair for each speaker. Each pair will have a positive (+) and negative (-) connection. -
Page 8: Completing The Installation
S O U N D B A R I N S TA L L AT I O N U S E R M A N U A L COMPLETING THE INSTALLATION Once the speaker has been wired the soundbar/LCR can be secured to the wall by sliding it over the screws. - Page 9 S O U N D B A R I N S TA L L AT I O N U S E R M A N U A L NOTES...
-
Page 10: Troubleshooting
S O U N D B A R I N S TA L L AT I O N U S E R M A N U A L Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works. -
Page 11: Technical Assistance
If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return attempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide... -
Page 12: Warranty
S O U N D B A R I N S TA L L AT I O N U S E R M A N U A L Limited Warranty Origin Acoustics warrants to the original retail purchaser only that for a period of Five (5) years from the original date of purchase. This Origin Acoustics product will be free from defects in materials and workmanship, provided the speaker was purchased from an Origin Acoustics authorized dealer. -
Page 13: Return Process
Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product. - Page 14 6975 S Decatur BLVD, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2016 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
