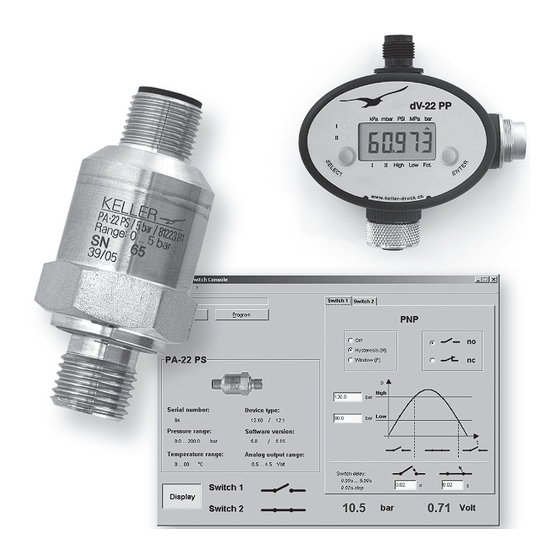

- Page 1 OPERATING MANUAL PA-22 PS PRESSURE SWITCH dV-22 PP PROGRAMMER Pressure PROGRAMMING SOFTWARE Switch Console > > > > > May 2011...
-
Page 2: Table Of Contents
CONTENTS Pressure switch PA-22 PS / PAA-22 PS Connector pin assignment M12 Connection diagram Programmer dV-22 PP Overview Programming / Pressure switch configuration Programming with the Programmer dV-22 PP Programming with the PC / Laptop Connections of the dV-22 PP... -
Page 3: Pressure Switch Pa-22 Ps / Paa-22 Ps
Pressure switch PA-22 PS / PAA-22 PS Electrical Pressure connection connection M12 Connector pin assignment M12 Pin 1: +VCC (8…40 V DC) Pin 2: Switch output 2 Pin 3: GND Pin 4: Switch output 1 Pin 5: Analog output The switch outputs are factory configured as PNP (switch switches load to +VCC) or NPN (switch switches load to ground) and can be programmed independently. -
Page 4: Programmer Dv-22 Pp
2) 5-pole connector Connection to PC / laptop with a converter (K-107 / K-104B) 3) M-12 socket Connection of the pressure switch 4) LED Indicates the status of the switches (switch 1 and switch 2) 5) LCD Main display 6) Keys SELECT and ENTER - 4 - www.keller-druck.com... -
Page 5: Programming / Pressure Switch Configuration
Pressure switch Programming with a PC / Laptop If an interface cable from KELLER (K-107 / K-104 B) is connected to the programmer, programming can be carried out with a PC / laptop using the “Pressure Switch Con- sole” software. In this case, the power supply for the programmer comes directly via the converter. -
Page 6: Connections Of The Dv-22 Pp
The interface cable (K-107 / K-104B) can be con- nected here. Pressure switch connection M12 socket The pressure switch is connected to the M12 socket. If necessary, a M12 extension cable (5-pole) can be used between the programmer and the pressure switch. - 6 - www.keller-druck.com... -
Page 7: Display
Display In normal mode the programmer displays the actual pressure value of the pressure switch (only for pressure switches with an analog output), and the status of the switch outputs with LED’s. LEDs for the indication of the Pressure measuring units status of the switch outputs Pressure value Menu Navigation... -
Page 8: Menu Structure
The currently selected menu item is Change the pressure indicated at the bottom of the display display unit ( Unit with arrows. These point to the corre- ENTER sponding designations: , High, Low, Fct. SELECT ENTER mbar Saves the selection - 8 - www.keller-druck.com... -
Page 9: Programming Mode
Menu Navigation Programming mode Programming mode (see the menu structure) allows the switching thresholds and switching functions to be set. Example: Changing the switching threshold The switching threshold to be changed is selected with SELECT (see the menu struc- ture). The currently selected menu item is indicated at the bottom of the display: I, II, Low, High, Fct. -
Page 10: Selection Of The Pressure Unit Display
The nearest possible value is set. When programming is complete, the pressure switch can be disconnected and used: the configuration in the pressure switch remains stored. - 10 - www.keller-druck.com... -
Page 11: Display Of The Pressure Value And Status Of The Switches
A pressure trend curve can be dis- played and recorded graphically with the KELLER “Read30” soft- ware. Pressure Switch Console - 11 -... - Page 12 As criteria for the electromagnetic compatibility, the following norms are applied: EN 61000-6-2 EN 61000-6-3 EN 61000-6-4 This declaration is given for the manufacturer: KELLER AG für Druckmesstechnik, St. Gallerstrasse 119, CH-8404 Winterthur in full responsibility by KELLER GmbH, Schwarzwaldstrasse 17, D-79798 Jestetten Jestetten, 25 May 2011 H.W. Keller...
