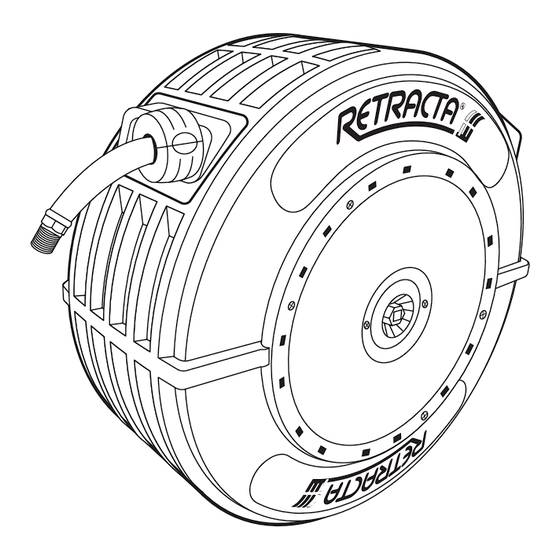

- Page 1 OWNERS MANUAL AIR / WATER / COOLANT Hose Reels INCLUDES MODEL NOs: AR320 ARC420 CL315 ARC320 AW315 CL320 AR415 AW320 CLC320 ARC415 AW415 AR420 AW420 PREMIUM HOSE REELS IMR3AIR - issue 1...
- Page 2 INTRODUCTION Thank you for purchasing the Retracta R3 retractable hose reel. PLEASE READ THIS SAFETY INFORMATION CAREFULLY BEFORE USE. Read and retain this instruction manual to assist you in the operation of your new product. ‘CAUTIONS’ are listed throughout this manual to advise of actions that may cause damage to you’re the operator or to the equipment.
-
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS Use appropriate hardwear to secure and support the reel and bracket to desired location and weight of the fluids. 2. Prevent the reel from swiveling in the overhead position (figure 2) by installing the locking bracket supplied. 3. Use the 8mm screw provided to secure the pin to the BU200 bracket. -
Page 4: Hose Replacement
HOSE REPLACEMENT Before attempting any maintenance, disconnect and turn off the supply line, then CAUTION release the line pressure 1. Pull out hose and 2. Remove screws 3. Remove screws 4. Remove plate latch 5. Remove cable tie 6. Remove swivel 7. - Page 5 SWIVEL or SWIVEL SEAL REPLACEMENT Before attempting any maintenance, disconnect and turn off the supply line, then CAUTION release the line pressure 1. Pull out hose and 2. Remove screws 3. Remove screws 4. Remove plate latch 5. Remove cable tie 6.
- Page 6 REMOVE / REPLACE TENSION SIDE PLATE Before attempting any maintenance, disconnect and turn off the supply line, then CAUTION release the line pressure 1. Remove screws with 2. Hold hub and remove 3. Release spring 4. Remove screw and madnetic screwdriver screws tension center hub...
-
Page 7: Troubleshooting Guide
TROUBLESHOOTING GUIDE Before attempting any maintenance, disconnect and turn off the supply line, then CAUTION release the line pressure Hose does not retract correctly A) Outlet nozzle, gun or tool is too heavy Refer to INCREASE SPRING B) Spring is fatigued and TENSION on page 3. -
Page 8: Spare Parts List
REFER TO : Page 5 SWIVEL OR SWIVEL SEAL REPLACEMENT INSTRUCTIONS SWIVEL ASSEMBLIES Air / Air Water O’Ring seal kit BS115VS Swivel Assembly kit 1/2”(12.5mm) - RS115As 3/8”(10mm) - RS116As Coolant O’Ring seal kit BS115VS Swivel Assembly kit 1/2”(12.5mm) - RS117As SPARE PARTS LIST Description Spart... -
Page 9: Exploded Diagram
EXPLODED DIAGRAM Hose reel master assembly (Refer to spare parts list on previous page) Note: 1. Outer casing is supplied as a single half only. 2. Standard bracket not shown. INSTRUCTION MANUAL PAGE 9... - Page 10 INSTRUCTION MANUAL PAGE 10...
- Page 11 INSTRUCTION MANUAL PAGE 11...
- Page 12 Macnaught Pty Limited ABN 66 000 075 785 41 - 49 Henderson St Turrella, NSW, 2205 Sydney, Australia. Postal Address PO Box 90 Arncliffe NSW 2205 Sydney, Australia. +61 2 9567 0401 +61 2 9597 7773 W. www.macnaught.com.au Note: This product should be disposed of according to all applicable local and national government environment regulations and guidelines.
