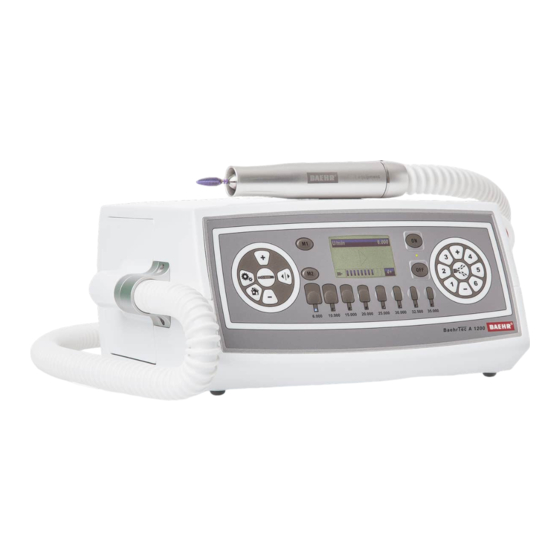

- Page 1 Operating Manual BaehrTec A1200 / A2000 BaehrTec A1200 A2000 Dry technology pedicure device with hand piece Operating Manual English – V100 - Date 09/2017 Page 1/64...
-
Page 2: Table Of Contents
2.1.2 Type rpm with output details ..............5 2.1.3 Symbols on the packaging ..............6 2.1.4 Differences between BaehrTec A1200 and BaehrTec A2000 ....7 Foreword ......................9 General product description and application purpose ........10 2.3.1 Operator requirements................. 10 2.3.2... - Page 3 Operating Manual BaehrTec A1200 / A2000 Care (Disinfection) ..................... 45 Guarantee......................45 Recycling/disposal ..................... 46 Self-help in the event of malfunctions ............... 47 5.5.1 Change fuse..................49 5.5.2 Cleaning the handpiece button ............49 5.5.3 Changing the dampers for the handpiece case ........51 5.5.4...
-
Page 4: Note To Users
Operating Manual BaehrTec A1200 / A2000 Note to users This operating manual must be read through thoroughly before using the device for the first time and the contained instructions and rules must be precisely observed. These operating instructions form part of the device user agreement. By thoroughly... -
Page 5: Symbols
Please observe the customary power supply specifications before connecting the device to the mains. Before using the device, be sure to observe section "Differences between BaehrTec A1200 and BaehrTec A2000". Symbols 2.1.1... -
Page 6: Symbols On The Packaging
Operating Manual BaehrTec A1200 / A2000 CE mark (Communauté Européenne) with the number of the certification authority. A product bearing this mark meets the requirements of the corresponding EU guideline (the applicable European Standard). Application part of type B This application part guarantees protection against electric shock due to the compliance of the leakage currents with standards (Type B). -
Page 7: Differences Between Baehrtec A1200 And Baehrtec A2000
(see Fig. 9 (48)) For details about the speeds of the handpiece motor and suction please see chapter "Technical Data". Please particularly note the differences between the BaehrTec A1200 and BaehrTec A2000 when using instruments and when adjusting the handpiece speed. - Page 8 Operating Manual BaehrTec A1200 / A2000 Unless otherwise specified, all images below always show the BaehrTec A2000. Page 8/64 English – V100 - Date 09/2017...
-
Page 9: Foreword
(however, this is no substitute for the user checking that the maximum speed for the instrument currently in use is not exceeded). In addition to the easy-speed concept, the BaehrTec A1200/A2000 has a colour display that provides you with further information and which will facilitate adjusting some device settings (e.g. -
Page 10: General Product Description And Application Purpose
Operating Manual BaehrTec A1200 / A2000 General product description and application purpose The BaehrTec A1200/A2000 foot care device is intended for use in medical foot care. It must only be used by trained professionals. Rotating instruments (grinder, files, etc.) are actuated with the BaehrTec A1200/A2000. These can be used to strip away hard skin, calluses, nails etc. - Page 11 Operating Manual BaehrTec A1200 / A2000 • Only use high-quality rotating instruments with standardised shaft (diameter 2.35 mm) from the Baehr product range. • Please observe the specific instructions of rotating instruments when using them. Above all, observe the manufacturer's information on maximum speeds, cleaning, disinfection and sterilisation.
-
Page 12: Information On Electromagnetic Compatibility
Operating Manual BaehrTec A1200 / A2000 2.3.3 Information on electromagnetic compatibility We would like to point out that due to EN 60601-1 on the electromagnetic compatibility of electromedical devices that: • medical, electric devices are subject to particular precautionary measures and so must be operated according to the requirements of these operating instructions. -
Page 13: Before Using The Device For The First Time
It is essential that you read this section with the utmost care! It contains important information on protecting yourself, others and the device from damage! The designation BaehrTec A1200/A2000 used in this section refers both to the control unit and the handpiece. English – V100 - Date 09/2017... - Page 14 Please ensure that the device is positioned so that a disconnection is unlikely at all times. Do not use the BaehrTec A1200/A2000 in damp areas such as saunas or swimming complexes. Wetness and moisture on the controller can lead to dangerous current leaks, which poses the risk of an electric shock.
- Page 15 Operating Manual BaehrTec A1200 / A2000 If you suck up any cotton wool, paper or the like, this may cause the suction openings in the handpiece to become blocked. This may heavily affect the suction power. If the symbol for a filter change appears on the display, it is essential that you change the dust bag (the display can only function reliably if all filters are correctly applied.
- Page 16 Operating Manual BaehrTec A1200 / A2000 Warning – risk of injury! As shown in the illustration, you should avoid "pulling motions" during your work, as this may cause the instruments to slip out. Please take care not to exert too much pressure when using the instrument (burns on skin).
-
Page 17: Device Description
Operating Manual BaehrTec A1200 / A2000 Device description Description control unit 4.1.1 Front view BaehrTec A1200 Fig. 4a (1) Controller housing Main switch: (2) "ON" and (3) "OFF" with corresponding (4) LED (5) – (12) Push buttons for instruments speeds (6,000 – 35,000 rpm) with the corresponding (5a) –... -
Page 18: Front View Baehrtec A2000
Operating Manual BaehrTec A1200 / A2000 4.1.2 Front view BaehrTec A2000 Fig. 4b (1) Controller housing Main switch: (2) "ON" and (3) "OFF" with corresponding (4) LED (5) – (12) Push buttons for instrument speeds (6,000 – 40,000 rpm) with the corresponding (5a) –... -
Page 19: Side View With Handpiece Holder
Operating Manual BaehrTec A1200 / A2000 4.1.3 Side view with handpiece holder Fig. 5 (32) Handpiece holder English – V100 - Date 09/2017 Page 19/64... -
Page 20: Side View With Dust Bag Lid (Closed)
Operating Manual BaehrTec A1200 / A2000 4.1.4 Side view with dust bag lid (closed) Fig. 6 (33) Dust bag lid with handle (34) Handpiece outlet (35) Screws for handpiece outlet Must only be unfastened by the manufacturer (36) Suction hose Page 20/64 English –... -
Page 21: Side View Without Dust Bag Lid And Turbine Protection Filter (Open)
Operating Manual BaehrTec A1200 / A2000 4.1.5 Side view without dust bag lid and turbine protection filter (open) Fig. 7 (37) 4x magnet holder (38) Filter grille English – V100 - Date 09/2017 Page 21/64... -
Page 22: Dust Bag Lid (Inside)
Operating Manual BaehrTec A1200 / A2000 4.1.6 Dust bag lid (inside) Fig. 8 (39) Receptacle for dust bags (40) Mounting bolts for magnet holder (41) Rubber seal for dust bag lid (42) Dust bag Page 22/64 English – V100 - Date 09/2017... -
Page 23: Rear View
Operating Manual BaehrTec A1200 / A2000 4.1.7 Rear view Fig. 9 When working from the case, we recommend removing the storage tray from the case in order that the heat created by the device can escape from the case and to avoid potential head build-up. -
Page 24: Bottom View
Operating Manual BaehrTec A1200 / A2000 4.1.8 Bottom view Fig. 10 (49) Housing screws All housing screws must only be unfastened by the manufacturer. (50) Housing seal As soon as the housing seal is breached or removed, all guarantee claims shall expire. -
Page 25: Description Of The Handpiece
Operating Manual BaehrTec A1200 / A2000 Description of the handpiece Fig. 11 (36) Suction hose (52) Opening for DIN instruments with a shaft diameter of 2.35 mm (for instruments with a maximum diameter of 12 mm) (53) Handpiece case (can be unscrewed) - Page 26 Operating Manual BaehrTec A1200 / A2000 max. instrument diameter no greater than 12 mm Warning: Always observe the maximum permissible instrument diameter and the respective maximum permissible speed of the instrument manufacturer. Please ensure that this is never exceeded since it can result in serious injuries to the patient and the operator.
-
Page 27: Description Non-Heating Device Connecting Cable
Operating Manual BaehrTec A1200 / A2000 Description non-heating device connecting cable Fig. 13 (56) Device connector (57) Cable (58) Safety plug English – V100 - Date 09/2017 Page 27/64... -
Page 28: Description Of Suction System
Operating Manual BaehrTec A1200 / A2000 Description of suction system When developing the suction system of the BaehrTec A1200/A2000 we have placed a great deal of emphasis on operating safety and operating speed. We would therefore like first and foremost to give you an insight into the operation of the suction system. - Page 29 Operating Manual BaehrTec A1200 / A2000 Here, ready for operation does not necessarily mean that the suction is actually active, as the suction only becomes active when the suction is ready for operation and the handpiece motor is also in operation.
-
Page 30: Colour Display
Operating Manual BaehrTec A1200 / A2000 Colour display The BaehrTec A1200/A2000 has two operating modes, which are indicated to you on the display: Work mode Adjustment mode (Options Menu) 4.5.1 Work mode As the name suggests, you can operate and work with your device in "Work mode". As soon as you turn on your device, you will automatically be in "Work mode". -
Page 31: Adjustment Mode (Options Menu)
Service Control The BaehrTec A1200/A2000 has a service interval display. The service interval is 905 hours, and refers to the operating hours of the handpiece motor as of the delivery/the last service. You must send your device for servicing when the service key lights up on the display (or within 24 months;... - Page 32 - Version of your A1200/A2000 Your BaehrTec A1200/A2000 goes through various quality controls prior to delivery. Amongst other things, your A1200/A2000 will undergo a functional test during this process. Please do not be surprised therefore, if the device already has some meter readings.
-
Page 33: Home Function (Button (17))
Operating Manual BaehrTec A1200 / A2000 Home function (button (17)) This button has two functions: By briefly pressing the Home button you will be taken directly from the options menu to the Work mode (see section "Work mode"). By pressing this button for approximately 5 seconds, the base settings made by the factory will be restored: •... -
Page 34: Disconnecting/Connecting The Dust Bag Lid To The Controller
Operating Manual BaehrTec A1200 / A2000 The indication of the memory button will only appear on the display if you select the settings via the memory button. If you (accidentally) make settings that are saved to a memory button, you will not be shown on the display that these settings are already stored on a memory button. -
Page 35: Changing The Filter
Before we describe how to change the filter, we would like to provide you with some quick information on the filtration system in the BaehrTec A1200/A2000. 1. Filter: Dust bag This filter has been proven in many suction systems to this day. It filters out the majority of dust particles. -
Page 36: Changing The Dust Bag
Clean the filter chamber and the dust bag lid each time you change the dust bag in order to guarantee proper suction power and to prevent germ formation. Think of your health! For cleaning, we recommend the Baehr cloths Art. No. 11000. Push the dust bag carefully with the opening on the receptacle (39), until the (cardboard) reinforcement of the dust bag locks into the slot on the dust bag lid. -
Page 37: Changing The Turbine Protection Filter
Changing the turbine protection filter The turbine protection filter and all other filters must be replaced immediately if you have been working with your BaehrTec A1200/A2000 without a dust bag (if you forgot) or if a dust bag has burst. -
Page 38: Changing The Filter Cartridge
Fig. 17 Remove the filter cartridge (43) and clean the exhaust duct on the controller using Baehr cloths Art. No.11000. Remove the knurled screws from the filter cartridge and open it by pulling the filter cartridge grille from the base of the filter cartridge. - Page 39 Operating Manual BaehrTec A1200 / A2000 Now change the inner fleeces in the order indicated on the outside of the filter cartridge and then put them back into the filter cartridge. Next, put the filter cartridge grille back into the base of the filter cartridge.
-
Page 40: Getting Started
4.10 Getting started Make sure that there is a dust bag in your BaehrTec A1200/A2000. To do this, you must disconnect the dust bag lid from the controller (see section "Disconnecting/connecting the dust bag lid to the controller"). On the receptacle (39) on the inside of the dust bag lid, a dust bag is pushed on as far as the stop. - Page 41 Operating Manual BaehrTec A1200 / A2000 Never use instruments with an oily, worn or bent shaft. Otherwise, it cannot be guaranteed that your instrument can be held firmly in the handpiece! Caution – risk of injury! Never attempt to insert or remove instruments into/ out of the opening (52) when the handpiece motor is running.
- Page 42 Operating Manual BaehrTec A1200 / A2000 You can now turn on the handpiece motor using the push button (13) on the controller or the push button (55) on the handpiece. The arrow in the display will now be filled blue. The instrument will now turn clockwise at the speed you have selected. You can now change the motor speed of the handpiece by pressing the buttons (5) –...
-
Page 43: Accessories
Operating Manual BaehrTec A1200 / A2000 You can turn the handpiece motor on/off using the push button (13) on the controller or the push button (55) on the handpiece. Please note that the suction is automatically switched off as soon as you turn off the handpiece motor. -
Page 44: Servicing And Care
Therefore, set the maximum speed before you work with the instrument and check it each time you change instruments. Only the original Baehr foot pedal may be used with the BaehrTec A2000. Other foot pedal are not approved for use with the BaehrTec A2000. -
Page 45: Care (Disinfection)
Never immerse the device in water or any other liquids, as this poses a risk of electric shock. Clean the handpiece daily. Use a small brush or a tooth brush and the Baehr wipes (Art-No. 11000). We recommend changing the dust bag and all filters regularly and at least every four weeks (even if the filter display does not indicate a filter change), in order to prevent excessive germ build-up. -
Page 46: Recycling/Disposal
Operating Manual BaehrTec A1200 / A2000 Recycling/disposal Old devices must be disposed of as electronic waste and should not be disposed of with household waste. Please refer to the country-specific particularities for this. The resulting waste must be recycled or disposed of in a way that is not hazardous to humans or the environment. -
Page 47: Self-Help In The Event Of Malfunctions
Operating Manual BaehrTec A1200 / A2000 Self-help in the event of malfunctions Fault Cause Solution • • Main switch off Turn on main switch • • Control unit not connected to Connect device to power power supply supply • •... - Page 48 Operating Manual BaehrTec A1200 / A2000 • • Maximum permitted speed Only work with for instrument in use is maximum permissible exceeded speed for the instruments used • • Instrument shaft worn Check the instrument shaft and use a new instrument if necessary •...
-
Page 49: Change Fuse
Operating Manual BaehrTec A1200 / A2000 5.5.1 Change fuse The fine fuses protect your device from damage caused by two high currents. Attention! Only these fuses may be used with the A1200/A2000: 2X microfuse, 3.15 A delay (Type H) Switch off your device at the main switch and disconnect the device from the mains. Use a screwdriver to open the fuse compartment on the device socket. - Page 50 Clean the button pusher and the button housing with a brush. Fig. 26 Fig. 27 Next, wipe the button pusher and button housing with Baehr quick surface disinfectant (Art No. 11015). Fig. 28 Apply a little oil with a cotton swab to the button pusher and reinsert it into the button housing.
-
Page 51: Changing The Dampers For The Handpiece Case
Operating Manual BaehrTec A1200 / A2000 Fig. 29 Checker that the functioning is back to normal by pushing the button pusher with your finger. Fig. 30 5.5.3 Changing the dampers for the handpiece case If you notice that the handpiece motor no longer sits comfortably in the handpiece case, this means that the dampers for the handpiece case are worn. - Page 52 Operating Manual BaehrTec A1200 / A2000 Take the nine dampers for the handpiece case from the slots on the handpiece motor (possibly using a pair of tweezers) and dispose of these properly. Fig. 33 Now reinsert the new dampers for the handpiece case. Make sure that you insert the three black dampers in the middle row.
-
Page 53: Easy-Clean Clamping Mechanism
Operating Manual BaehrTec A1200 / A2000 5.5.4 Easy-Clean clamping mechanism We are delighted to inform you that your handpiece contains our newly developed, innovative and patented Easy-Clean clamping mechanism (hereinafter referred to as "Easy-Clean"). In a conventional clamping mechanism, the dirt that arises when working can cause an instrument you are operating with your handpiece to stop, even though the motor is running. - Page 54 (see Fig. 38). Now pull out the clamping mechanism cleaner 2 from the opening. Only clean the clamping mechanism cleaner 2 with water, then with Baehr quick surface disinfectant (Art-No. 11015) and then with Baehr Alcohol (Art-No. 11032) to degrease the tool.
- Page 55 Operating Manual BaehrTec A1200 / A2000 To do so proceed as follows. Turn off the device at the main switch and disconnect it from the power supply. Never clean the device while the handpiece motor is still running! Risk of injury! In addition, the clamping mechanism will suffer damage! Moisten the clamping mechanism cleaner 2 with alcohol (Art-No.
-
Page 56: Instrument Changing Aid (Insertion And Removal Aid For Very Small Instruments)
For hygiene reasons, please clean the instrument changing aid after use under running water and then with Baehr quick surface disinfectant (Art-No. 11015). The images are for illustrative purposes only. Subject to technical and optical changes. - Page 57 Operating Manual BaehrTec A1200 / A2000 Inserting Insert the instrument shaft in the clamping mechanism on the handpiece. Fig. 39 Hold the instrument changing aid horizontally to the handpiece. Fig. 40 With the countersink on the head of the instrument...
- Page 58 Operating Manual BaehrTec A1200 / A2000 Pull out Hold the instrument changing aid horizontally to the handpiece. Fig. 42 Position the instrument head behind the notch on the instrument changing aid. Place your thumb over the notch on the instrument changing aid, so that the instrument does not drop when removing.
-
Page 59: Technical Data
Operating Manual BaehrTec A1200 / A2000 Technical Data BaehrTec A1200 Medical device Class 2A according to EU Directive 93/42 Medical devices EMC test Under EN 60601-1 Operating voltage 110 – 240 V AC voltage Frequency 50 – 60 Hz Micromotor speed range 6,000 –... - Page 60 Operating Manual BaehrTec A1200 / A2000 BaehrTec A2000 Medical device Class 2A according to EU Directive 93/42 Medical devices EMC test Under EN 60601-1 Operating voltage 110 – 240 V AC voltage Frequency 50 – 60 Hz Micromotor speed range 6,000 –...
- Page 61 Operating Manual BaehrTec A1200 / A2000 Guidelines and MANUFACTURER statement – ELECTROMAGNETIC EMISSION The model BaehrTec A1200/A2000 is intended for use in the ELECTROMAGNETIC ENVIRONMENTS specified below. The customer or end user N11) of the model BaehrTec A1200/A2000 should ensure it is used in such an environment.
- Page 62 AM and FM radio and television channels cannot be theoretically determined precisely beforehand. order ascertain the ELECTROMAGNETIC ENVIRONMENT as a result of stationary HF transmitters, an investigation of the location is recommended. If the determined field strength at the location of the model BaehrTec A1200/A2000 exceed CONFORMANCE LEVEL,...
-
Page 63: Spare Parts/Accessories
The BaehrTec A1200/A2000 model is intended for operation in an ELECTROMAGNETIC ENVIRONMENT in which radiated HF disturbances are controlled. The customer or the user of the model BaehrTec A1200/A2000 can help prevent, electromagnetic disturbances by observing the minimum distances between portable and mobile HF communication facilities... - Page 64 Operating Manual BaehrTec A1200 / A2000 Contact address & manufacturer Gustav Baehr GmbH Max-Eyth-Str. 39 D-71332 Waiblingen Tel.: 07151 95 90 20 Fax: +49 7151 1 84 44 www.baehrshop.de Page 64/64 English – V100 - Date 09/2017...
