SLiDe HAMMeR Set
ASSeMBLY & OPeRAtiNG iNStRUctiONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVe tHiS MANUAL.
Copyright
1997 by Harbor Freight Tools
©
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 10b
15 Piece
Model
5469
. All rights reserved. No portion of this manual or any artwork
®
Advertisement
Related Manuals for U.S. General 15 PIECE SLIDE HAMMER SET
Summary of Contents for U.S. General 15 PIECE SLIDE HAMMER SET
- Page 1 15 Piece SLiDe HAMMeR Set Model 5469 ASSeMBLY & OPeRAtiNG iNStRUctiONS Visit our website at: http://www.harborfreight.com Read this material before using this product. Failure to do so can result in serious injury. SAVe tHiS MANUAL. Copyright 1997 by Harbor Freight Tools .
- Page 2 Operation iMPORtANt SAFetY Do not try to use inappropriate iNStRUctiONS! attachments in an attempt to exceed the tool’s capacity. Approved accessories are Read all instRuctions befoRe available from Harbor Freight Tools. using this pRoduct! Never force the tool or attachment to do the Operator the work of a larger industrial tool.
- Page 3 Thread the assembled Jaws/Jaw Adapter UNPAckiNG onto end of Slide Screw (C). Unpack and check contents. If any parts Attach the Jaws to the object to be are missing or broken, please call HARBOR pulled. FREIGHT TOOLS at 1-800-444-3353. Make sure you have all parts described in the Parts Push the Slide Hammer (C) toward the List on page 5.

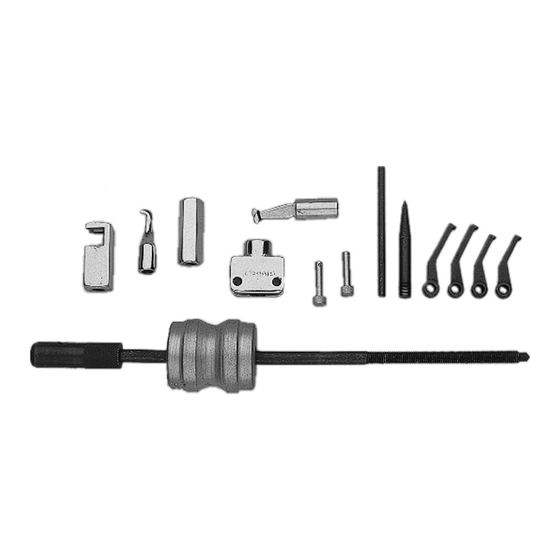

- Page 4 PARtS LiSt AND ASSeMBLY DiAGRAM Part Description Qty. Locking Pin Handle Crossbar Slide Screw Two-jaw Puller Square Hook Cone Rod Screw Adapter* Jaw Adapter Small Jaws Large Jaws Puller Hook Slide Hammer *Note: The thread-on Screw Adapter allows the use of additional pulling attachments that use a smaller diameter thread.
