SERVICE, INSTALLATION AND
OPERATION
MANUAL
For AUTHORIZED PARTS or TECHNICAL SERVICE, please contact:
1-887-368-2797
7750 Georgetown Road, Indianapolis, IN 46268 USA
Phone: (317) 634-2550
69K-769 w/1 DOOR
69K-770 w/2 DOORS
69K-771 w/2 DOORS

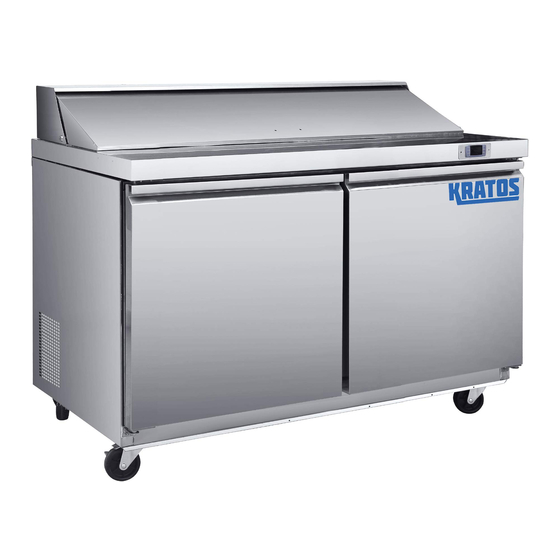

SANDWICH/SALAD PREPARATION TABLES
PLEASE READ CAREFULLY
8/24/2018
Advertisement
Table of Contents
Related Manuals for KRATOS 69K-769
Summary of Contents for KRATOS 69K-769
- Page 1 SERVICE, INSTALLATION AND OPERATION MANUAL For AUTHORIZED PARTS or TECHNICAL SERVICE, please contact: 1-887-368-2797 7750 Georgetown Road, Indianapolis, IN 46268 USA Phone: (317) 634-2550 69K-769 w/1 DOOR 69K-770 w/2 DOORS 69K-771 w/2 DOORS SANDWICH/SALAD PREPARATION TABLES PLEASE READ CAREFULLY 8/24/2018...
-
Page 2: Table Of Contents
TABLE of CONTENTS SERIAL NUMBER INFORMATION ............................. 3 APPLIANCE SAFETY ................................... 4 IMPORTANT SAFEGUARDS ............................... 4 CASTER INSTALLATION ..............................6 DIMENSIONS ....................................7 TECHNICAL INFORMATION ..............................7 RECEIVING AND INSPECTING THE EQUIPMENT ......................... 8 INTRODUCTION ..................................8 COMPONENT INFORMATION ..............................9 APPLIANCE INSTALLATION .............................. -
Page 3: Serial Number Information
Fill out and return the enclosed warranty postcard. Keep the dated proof of purchase invoice which establishes the appliance's warranty period. SERIAL #:______________________________________________________________________________________________ MODEL #:________________________________________ DATE OF PURCHASE:_______________________________ SERIAL NUMBER INFORMATION The serial number of all self-contained refrigerators is located inside the unit on the left hand side near the top on the wall. -
Page 4: Appliance Safety
APPLIANCE SAFETY Your safety and the safety of others are very important. Always read and obey all safety messages in this manual. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can injure or kill you and others. -
Page 5: Important Safeguards
IMPORTANT SAFEGUARDS Before appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. We strongly recommend that you have a professional install your new machine. The warranty may be affected or voided by an incorrect installation. -
Page 6: Caster Installation
IMPORTANT SAFEGUARDS (cont.) Electrical Connection Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded. The power cord of this appliance is equipped with a 3-prong grounding plug that mates with a standard 3-prong grounding wall outlet to minimize the possibility of electric shock hazard from the appliance. -
Page 7: Dimensions
DIMENSIONS 69K-769 69K-770 48.4 in (1230 mm) 29 in (735 mm) 44.7 in (1130 mm) 69K-771 61.2 in (1555 mm) 18.5 in (470 mm) 57.5 in (1460 mm) 3.1 in (80 mm) 30.3 in (770 mm) TECHNICAL INFORMATION Model 69K-769... -
Page 8: Receiving And Inspecting The Equipment
It meets or exceeds the safety standard of UL 471 and sanitation standard NSF 7. Kratos assumes no liability or responsibility of any kind for products manufactured by Kratos, that have been altered in any way, including the use of any parts and/or other components not specifically approved by the manufacturer. -
Page 9: Component Information
COMPONENT INFORMATION 69K-770 69K-769 THERMOSTAT CONTROL PANEL THERMOSTAT PAN COVER POWER PAN COVER CONTROL PANEL SWITCH REFRIGERATOR REFRIGERATOR REFRIGERATOR SOLID DOOR SOLID DOOR SOLID DOOR (LEFT) (RIGHT) POWER POWER SWITCH SWITCH & CORD & CORD ON UNIT REAR ON UNIT REAR CASTERS CASTERS (refer to caster... -
Page 10: Appliance Installation
APPLIANCE INSTALLATION WARNING Excessive Weight Hazard Use two or more persons to move and install appliances. Failure to do so may result in back or other injury. Remove Packaging Materials IMPORTANT: Do not remove any permanent instruction labels or the data label on your appliance. •... -
Page 11: Installation Clearance
APPLIANCE INSTALLATION (cont.) Installation Clearance MXSR27S MXSR60S 69K-770 58 in 59.5 in 2” 69K-770/ MXSR60S 69K-769 53 in 1473 mm 1511 mm 1346 mm Max Door Swing Clearance Max Door Swing Clearance 51mm Max Door Swing Clearance Leveling Ensure the floor where the unit is to be located is level, or shim the unit to level. Stabilizing All models are supplied with casters for your convenience (refer to caster installation for mounting). -
Page 12: Operation
OPERATION Refrigerated cycle Refrigerators: During the refrigeration cycle, the evaporator fans will run continuously even when one or more doors are open. The door switch will activate the lights when opened on solid door models only. Glass door models lights are turned on manually using a switch located next to the main power switch. -
Page 13: Main Functions
OPERATION (cont.) 2. MAIN FUNCTIONS 2.1 HOW TO SEE THE SET POINT 1. Push and immediately release the SET key, the set point will be showed; 2. Push and immediately release the SET key or wait about 5s to return to normal visualization. -
Page 14: Cleaning And Maintenance
CLEANING AND MAINTENANCE DANGER The unit must be turned off and disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. Failure to comply may result in death or severe personnel injury. Exterior and Interior Cleaning of Appliances Clean using soap and warm water. -
Page 15: Stainless Steel Care And Cleaning
CLEANING AND MAINTENANCE (cont.) Stainless Steel Care and Cleaning To prevent rust or discoloration on stainless steel several important steps need to be taken. First, we need to understand the properties of stainless steel. Stainless steel contains 70-80% iron which will rust. It also contains 12-20% chromium which forms an invisible passive film over the steels surface which acts as a shield against corrosion. -
Page 16: Troubleshooting Guide
TROUBLESHOOTING GUIDE BEFORE CALLING FOR SERVICE If the unit appears to be malfunctioning, read through the OPERATION section of this manual first. If the problem persists, see Troubleshooting below. The problem may be something very simple that can be solved without a service call. -
Page 17: Wiring Diagrams
WIRING DIAGRAMS 69K-769 Page 17 of 18... - Page 18 WIRING DIAGRAMS (cont.) 69K-770 / MXSR60S Page 18 of 18...
