Albatron DM-5952KF User Manual

High definition multimedia pure flat monitor

Advertisement

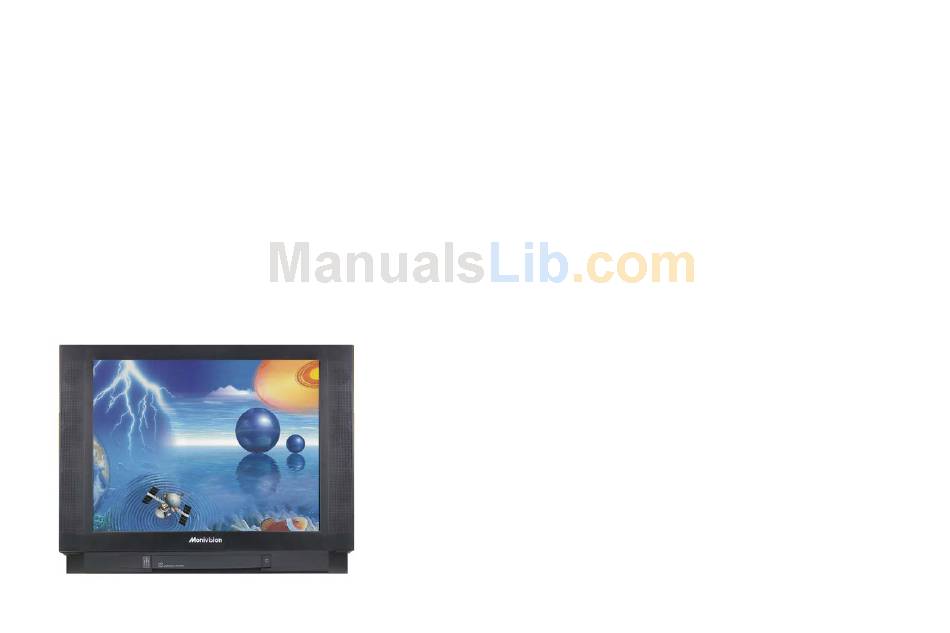

USER MANUAL

High Definition Multimedia
Pure Flat Monitor
DM-5952KF / DM-6952KF
A73110002790

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM-5952KF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Albatron DM-5952KF

  • Page 1: User Manual

    USER MANUAL High Definition Multimedia Pure Flat Monitor DM-5952KF / DM-6952KF A73110002790...
  • Page 2: Table Of Contents

    13. REAR CONNECTORS【CT-1890∕CT-1892】 ... 24 14. SIMPLE TROUBLE SHOOTING TIPS ... 25 15. Model:DM-6952KF SPECIFICATIONS... 26 16. Model:DM-5952KF SPECIFICATIONS... 27 17. VGA CONNECTOR ASSIGNMENT ... 28 18. RS-232 CONNECTOR ASSIGNMENT ... 29 19. FACTORY PRESET AND COMPATIBLE MODE ... 30 20.
  • Page 3: Safety Instructions

    2. SAFETY INSTRUCTIONS 1. Read all of these instructions. 2. Save these instructions for later use. 3. Follow all warnings and instructions marked on the product. 4. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
  • Page 4: Readme First

    3. README FIRST These easy start-up tips will guide you in making the connections to get you up and running. USING WITH A DESKTOP PC OR LAPTOP 1. Prior to connecting the monitor, if you have a desktop monitor connected to your PC, please insure that the video card refresh rate is set within the Monitors frequency range by going to:...
  • Page 5: Without Vision Converter

    5. WITH CT-1871 VISION CONVERTER 【 】 4. WITHOUT VISION CONVERTER Note:Only for Rev.K-1 or higher. FIGURE 1:DM-XX52KF W/O VISION CONVERTER CONNECTION FIGURE 2:DM-XX52KF CONNECT WITH CT-1871 VISION CONVERTER...
  • Page 6: With【Ct-1890∕Ct-1892】Vision Converter

    6. WITH 【 CT-1890 ∕ CT-1892 】 VISION CONVERTER Note:Only for Rev.K-1 or higher. FIGURE 3:DM-XX52KF CONNECT WITH CT-1890/CT-1892 VISION CONVERTER 7. INSTALLATION Precautions Monitor shall be placed at least 6 inches away from the obstructer. a. Monitor will work well when connect with computer and any high definition receiver.
  • Page 7 6. Connect the Left and the Right audio channel to monitor. 7. Start the VCR. 8. Press the TV∕PC∕AV button or press S-VHS button by remote control until S-VHS appears on the screen. DVD player 1. Connect the Video input with Left and Right speaker on DVD. 2.
  • Page 8: Using The Monitor

    8. USING THE MONITOR This section describes how to use and make adjustments to the monitor. It also provides a reference to the control panel and the remote control. Using the Control Panel Using control panel to control the monitor instead of the remote control. However, some other functions are not set on control panel.
  • Page 9: Using The Remote Control

    9. Using the Remote Control Using remote control instead of the control panel is convenient to operate the monitor. Some of the keys must to work by connect with MATE, and these are DISP, SLEEP, MTS, JUMP, ADD ∕ ERASE, AUTO, TV, VIDEO, S-VHS, COMPONENT, TV∕PC∕AV, TV∕CATA, PIC-STD, PIC∕PAGE, PIC-SEL, SYSTEM, FINE TUNING, CH-LOCK, FIELD, LANG, CAP∕TXT, CCD.
  • Page 10 Note : Volume control function will effect while connect with Vision Converter. Through DM RS232 V0.9 (Serial Transmission Communication interface) to remote control the device. To identify the monitor, you must to set an ID number (ID=1~99) to each of the monitor under DM RS232 V0.9 Control page.
  • Page 11: Accessing The Main Menu

    10. ACCESSING THE MAIN MENU Access the OSD Menu by control panel on the monitor or the remote control to make the operation. Screen-1 Screen-2 Screen-4 Screen-5 Screen-7 Screen-8 OSD FUNCTION CHART Following lists the function keys on the OSD: Note: Press the Menu button on the control panel or the remote control to display the main menu.
  • Page 12 Special Menu Fine tunes and sets the special functions manually: ID-NUMBER ( 1~99 ) 、 INSTANT-ON 、 DEGAUSS 、 AUTO-SAVING 、 AUTO DEGAUSS 、 AUTO SHIFT 、 OSD BACKGROUND、OSD CONTRAST、AND OSD H ∕V-POSITION、MOIRE、 KEY LOCK、PASSWORD. a. ID Number Through DM RS232 V0.9 (Serial Communication interface) to remote control the device.
  • Page 13: Energy Saving

    Automatic Stand By and Shut OFF are set through a software program on your computer. Model MAX. Power on Stand by DM-6952KF 200W DM-5952KF 210W POWER CONSUMPTION STATUS 12. REAR CONNECTORS 1. AC in 2. VGA out 3. Video out 4.
  • Page 14: Rear Connectors Ct-1890 Ct-1892

    13. REAR CONNECTORS CT-1890 【 1. AC in Connect the power source to the monitor. 2. VGA out Video signal connector Output the signal to another monitor. 3. Video out Composite Video output to another device. 4. Audio out (Left) Left speaker signal to another device.
  • Page 15: Model:dm-6952Kf Specifications

    Dimension (mm) Net weight (kg) H:30 to 80 % RH Operating Environment H:10 to 90 % RH Storage environment DM-5952KF SPECIFICATIONS : 27V Pure flat square screens with 108-degree magnetic deflection, dynamic focus forming, and 53.5% transmission. 0.68mm XGA;1024×768 Non-Interlaced 30 kHz to 52 kHz Auto Synchronous 50-120 Hz...
  • Page 16: Vga Connector Assignment

    17. VGA CONNECTOR ASSIGNMENT --------------------------- --------------------------- --------------------------- --------------------------- --------------------------- --------------------------- --------------------------- --------------------------- --------------------------- --------------------------- --------------------------- --------------------------- --------------------------- --------------------------- --------------------------- Green Blue Ground No Connection R-Ground G-Ground B-Ground No Connection Ground Ground H-sync V-sync 18. RS-232 CONNECTOR ASSIGNMENT Input Connector Assignment 1.
  • Page 17: Factory Preset And Compatible Mode

    19. FACTORY PRESET AND COMPATIBLE MODE Mode Resolution H freq (kHz) V freq (Hz) H polarity 640×480 31.469 59.941 720×400 31.469 70.087 640×350 31.469 70.087 800×600 37.879 60.317 800×600 48.077 72.188 1024×768 48.363 60.004 480P 31.469 60.000 1080I 33.750 60.000 720P 45.000 60.000...
  • Page 18: Dm Rs232 Quick Installation

    21. DM RS232 QUICK INSTALLATION Before install DM RS232 V0.9 software, you must to follow the steps below: 1. Make sure the monitors and computer is turned OFF. 2. Connect the Monitor (COM1/COM2 port) with your computer by DM RS232 V0.9 cable.
  • Page 19: Audio Control

    STATUS CONTROL There are 6 control entries under status control, the following statements are related to each Control function: See Figure A ( While without setting ID, ID=NO the Power ( ) Saving Auto- Degauss Auto- Shift modes and select mate signal can be 、...
  • Page 20: Picture Control

    Moire. Degauss Control: Select Moire. Degauss tab to adjust the H moire / V moire by drag the H scroll in the scroll bar. Color Control: 1. In the Color frame, select a direct label what you want to adjust to. 2.
