68 QDIN
Type
No
Code
EN 50022 modules
GW 68 017 N
GW 68 018 N
GW 68 001 N
5
GW 68 031 N
GW 68 020 N
GW 68 026 N
GW 68 032 N
GW 68 002 N
GW 68 003 N
10
GW 68 019 N
GW 68 025 N
GW 68 027 N
GW 68 004 N
GW 68 005 N
GW 68 006 N
GW 68 007 N
14
GW 68 008 N
GW 68 009 N
GW 68 010 N
GW 68 012 N
GW 68 013 N
GW 68 021 N
20
GW 68 014 N
GW 68 015 N
GW 68 022 N
14
GW 68 023 N
20
GW 68 024 N
VERSION EMPTY
Scheme
1 IEC 309 16A socket-outlet IP44/67
or GW 27 401 watertight cap
2 IEC 309 16A socket-outlets IP44/67
or GW 27 401 watertight caps
3 IEC 309 16A socket-outlets IP44/67
or GW 27 401 watertight caps

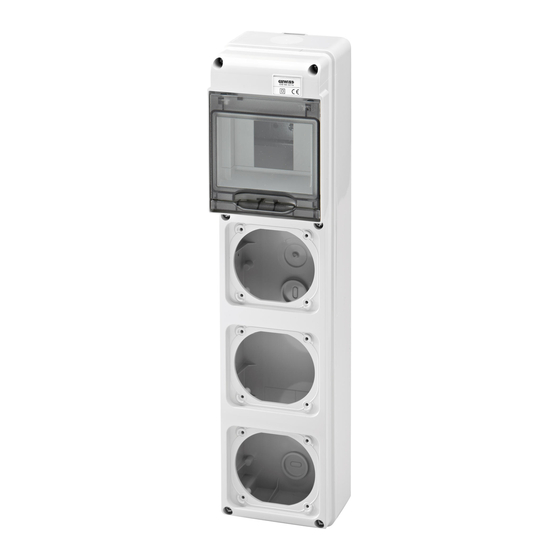

3 IEC 309 16A socket-outlets IP44/67
or GW 27 401 watertight caps and shockproof case
2 IEC 309 16-32A socket-outlets IP44/67
or GW 27 401 watertight caps
4 domestic socket std 50x50mm IP54
4 domestic socket std 50x50mm IP54 and shockproof case
2 IEC 309 16A socket-outlets max 3P+T
IP44/67 or GW 27 401 watertight caps
2 IEC 309 16-32A socket-outlets
IP44/67 or GW 27 401 watertight caps
2 horizontal 16-32A interlocked switched
socket-outlets IP44 with rotary switch
2 vertical 16-32A interlocked switched
socket-outlets IP67
3 domestic socket std 50x50mm IP54
2 IEC 309 socket-outlets 16-32A IP44/67
3 IEC 309 16-32A socket-outlets IP44/67
or GW 27 401 watertight caps
2 horizontal 16-32A interlocked switched
socket-outlets IP44 with rotary switch
6 IEC 309 16-32A socket-outlets IP44/67
or GW 27 401 watertight caps
4 horizontal 16-32A interlocked switched
socket-outlets IP44 with rotary switch
3 vertical 16-32A interlocked switched
8 IEC 309 16-32A socket-outlets IP44/67
or GW 27 401 watertight caps
4 IEC 309 16-32A socket-outlets IP44/67
or GW 27 401 watertight caps
4 IEC 309 63A socket-outlets
4 horizontal 16-32A interlocked switched
socket-outlets IP44 with fuse-holder base
4 vertical 16-32A interlocked switched socket-outlets IP67
4 IEC 309 16A 2P+T socket-outlets IP44/67
or GW 27 401 watertight caps
2 vertical 16-32A interlocked switched socket-outlets IP67
1 vertical 63A interlocked switched socket-outlets IP67
Additional 14-module module
Additional 20-module module
Predisposition
Blank
Blank
Blank
socket-outlets IP67
Blank
IP 65
Power
Static
dissipation
loads
10 W 3 Kg
16 W 8 Kg
24 W 12 Kg
30 W 15 Kg
25 W
5 Kg
35 W
Advertisement
Related Manuals for Gewiss GW 68 008 N
Summary of Contents for Gewiss GW 68 008 N
- Page 1 Predisposition dissipation loads EN 50022 modules 1 IEC 309 16A socket-outlet IP44/67 GW 68 017 N or GW 27 401 watertight cap 2 IEC 309 16A socket-outlets IP44/67 GW 68 018 N or GW 27 401 watertight caps 3 IEC 309 16A socket-outlets IP44/67...
- Page 2 Code No. DIN modules GW 68 431 Metal tube support GW 68 433 14 / 20 GW 68 432 14 / 20 Metal tube carriage GW 46 552 Pole xing brackets GW 46 553 GW 46 446 Brackets for 10 / 14 / 20 surface-mounting GW 46 451 Brackets for...
- Page 3 A unique insulating system applied to live parts to ensure a degree of protection against electrical contacts even in case of failure of the main insulation system. This action prevents the occurrence of a dangerous res,idual voltage on accessible parts, particularly when the main insulation system is no longer capable of working as specified.
- Page 4 ASSEMBLING A WALL GW 46 446/GW 46 451 GW 44 621 Not supplied Not supplied Supplied ASSEMBLY OF BRACKETS FOR POLE ASSEMBLY OF HANDLE GW 46 552/GW 46 553 Not supplied...
- Page 5 ASSEMBLY ADDITIONAL MODULE GW 52 401 Not supplied M4 flanged nut Spacer M4x18 screw Gasket Flat washer WARNING: fix the Q-DIN complete with additional module to a wall only, using the GW 46 446/GW 46 451 brackets. AF 4x13 screw...
- Page 6 ASSEMBLY TERMINAL BLOCKS GW 40 401 GW 40 408B GW 40 408U GW 40 402 GW 40 412B GW 40 412U GW 40 422U 125A - 2P 80A - 2P 80A - 1P 125A - 2P 80A - 2P 80A - 1P 80A - 1P n°1x25mm n°2x16mm...
- Page 7 ASSEMBLY MUSHROOM HEAD EMERGENCY BUTTON Perforate Emergency push-button can Emergency be assembled push-button on Q-DIN 5 can be assem- bled on Q-DIN 10 - 14 - 20 Only GW 68 026N GW 68 032N ASSEMBLY CYLINDER SECURITY LOCK WARNING: the lever of the lock must Lock can be assembled on only be assembled in the position Q-DIN 10 - 14 - 20...
- Page 8 Q DIN 5 MODULE BOARD 76 76 49 49 76 76 96 96 Q DIN 10 MODULE BOARD 76 76 49 49 85 85 96 96...
- Page 9 Q DIN 14 MODULE BOARD 81 81 49 49 Q DIN 20 MODULE BOARD...
- Page 10 According to the applicable Decisions and European Directives, the responsible for placing the apparatus on the Community market is: GEWISS S.p.A. Via A.Volta, 1 IT-24069 Cenate Sotto (BG) Italy Tel: +39 035 946 111 Fax: +39 035 946 270 E-mail: qualitymarks@gewiss.com +39 035 946 111 sat@gewiss.com...
