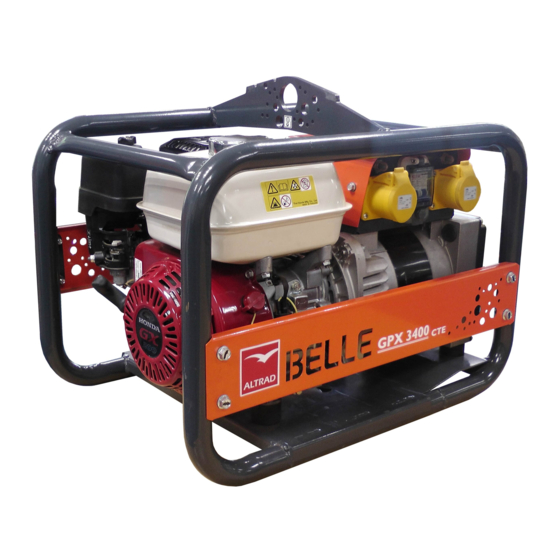

Altrad Belle GPX 3400 Operator's Manual
  1. Manuals
  2. Brands
  3. Altrad Belle Manuals
  4. Portable Generator
  5. GPX 3400
  6. Operator's manual

Altrad Belle GPX 3400 Operator's Manual

Hide thumbs Also See for GPX 3400:

Advertisement

Table of Contents

BELLE
870/50000/0
06/17
GPX
RANGE
4
Operators Manual
GB
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPX 3400 and is the answer not in the manual?

Questions and answers

Related Manuals for Altrad Belle GPX 3400

Summary of Contents for Altrad Belle GPX 3400

  • Page 1 BELLE 870/50000/0 06/17 RANGE Operators Manual...

  • Page 2: Machine Description

    Machine Description Choke lever. Fuel ON / OFF lever. Engine ON / OFF switch. Air Filter Housing. Fuel Tank. Exhaust. Lifting Point. Socket. Switch Box Rear View Alternator. 10. Voltage Switch 11. Circuit Breaker. 12. Earth 13. Securing Pin (for use when stacking machines) (Diagram based on the GPX 3400 Generator) Switch Box Front View...

  • Page 3: Technical Data

    Technical Data Model GPX 2700 GPX 3400 GPX 5000 A - Overall Length (mm) B - Overall Width (mm) C - Overall Height (mm) Weight (Kg) Rating @0.8 p/f (kVA) PRP Rating (kW) COP Rating (kW) Engine Power @3000rpm (kW / Hp) 4.3 / 3.3 4.3 / 3.3 6.2 / 4.6...
  • Page 4 Decals Switch Box Front View Switch Box Rear View A - Branding Decals Decals to identify the make and model of the machine. B - Voltage Switch Indicator Decal Decal to identify what voltage is selected. C - Rating Decal Decal to includes main Technica Data, including Noise Level.

  • Page 5: General Safety

    It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of the Generator, consult your supervisor or Altrad Belle.

  • Page 6: Pre-Operation

    This equipment is likely to emit a Sound Power Level (LWA) of up to 96dB(A). Wear appropriate ear defenders. • Your Altrad Belle generator comes preset and NO adjustment is necessary. • Be aware of how to stop the generator by use of the ignition switch.

  • Page 7: Operation

    Operating Instructions OPERATION Electrical outputs will vary according to the model. Refer to the rating plate for full details and see the following section on component identi cation. • 110v AC 16 amp use yellow socket. • 230v AC 16 amp use blue socket. •...

  • Page 8: Estimating Power Consumption

    The best way to ensure that neither of the above occurs is to contact the manufacturer of the equipment that is intended for use with the generator. Alternatively a useful way to measure the starting and running current for the appliance is to use a Altrad Belle Minigen meter.

  • Page 9: General Guidelines

    Estimating Power Consumption GENERAL GUIDELINES Refrigerators, freezers, compressors and central heating pumps usually have induction type motors and the starting current can be three times higher than the running current. Fluorescent lamps require approx 1.5 times their stated wattage to start-up. Microwave ovens are often referred to by their cooking power, which is often half the operating power.

  • Page 10: Extension Cables

    Servicing Before starting any maintenance or repairs, stop engine or switch off motor, and isolate from the main power supply. On completion of maintenance, check that the generator functions correctly and that all guards are correctly tted. EXTENSION CABLES If you need to use an extension cable it must be no longer than 30 metres (100 feet) in length. Ensure that the extension cable is carefully laid out avoiding liquids, sharp edges and places where vehicles might run over it or become trapped.

  • Page 11: Troubleshooting Guide

    Replace / clean spark plug. Air cleaner blocked. Replace / clean air lter. Engine still will not start. Major Fault Contact Agent or Altrad Belle. Air cleaner blocked. Replace / clean air lter. Spark plug fouled. Replace / clean spark plug.
  • Page 12 Their starting current can be three times the normal running requirement: check the description plate carefully. Note for example, a Altrad Belle Mini 140 and 150 mixer, having a motor wattage of 650 watts input multiplied by three would give a total starting requirement of 1950 watts, therefore a 2.2 kw Altrad Belle generator would be required.

  • Page 13: Wiring Diagrams

    Wiring Diagrams GPX 2700 3 2 1 B U N R B U N R GPX 3400 R U B N R U B N...
  • Page 14 Wiring Diagrams GPX 5000 R U B N R U B N Brown Blue G/Y - Green/Yellow White Yellow Black 115v Socket (16 amp) 230v Socket (16 amp) Circuit Breaker Change Over Switch Connector Block Alternator Alternator 115v Socket (32amp) 17 - Capacitor Neutral...

  • Page 15: Warranty

    Warranty Your new Altrad Belle Generator is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase. The Altrad Belle warranty is against defects in design, materials and workmanship. The following are not covered under the Altrad Belle warranty: 1.
  • Page 17 1-01 Main Assembly - GPX 2700 & 3400 996/00400SP ..Frame ..............1 20/0132 ....Engine ........Honda GX200 ..1 996/01500 ... Alternator ..............1 See 2-01 ..... Control Box ......GPX 2700 ....1 See 2-02 ..... Control Box ......GPX 3400 ....1 21/0157 ....
  • Page 18 1-02 Main Assembly - GPX 5000 996/00600SP ..Frame ..............1 20/0133 ....Engine ........Honda GX270 ..1 996/01700 ... Alternator ..............1 See 2-03 ..... Control Box ............. 1 21.0.292 ....Anti-Vibration Mount ..........2 21/0157 ....Anti-Vibration Mount ..........2 7/10010 ....
  • Page 19 2-01 Control Box - GPX 2700 4/6001 ....Washer ........M6 ......2 8/6001 ....Nut .........M6 ......2 996/00301SP ..Control Box Cover ..........1 3/4019 ....Grommet ..............1 918/40100 ... Circuit Breaker .......20 Amp ....2 918/13000 ... Switch 2-Pole ............1 70/0314 ....
  • Page 20 2-02 Control Box - GPX 3400 4/6001 ....Washer ........M6 ......2 8/6001 ....Nut .........M6 ......2 996/00501SP ..Control Box Cover ..........1 3/4019 ....Grommet ..............1 918/39900 ... Circuit Breaker .......12 Amp ....2 918/13000 ... Switch 2-Pole ............1 70/0314 ....
  • Page 21 2-03 Control Box - GPX 5000 4/6001 ....Washer ........M6 ......2 8/6001 ....Nut .........M6 ......2 996/00201SP ..Control Box Cover ..........1 3/4019 ....Grommet ..............1 918/40100 ... Circuit Breaker .......20 Amp ....2 918/13000 ... Switch 2-Pole ............1 70/0314 ....
  • Page 22 Decals, Autocollant, Decals Rótulo, Decalque 800/99318 ..Decal ......Autocollant ......Rótulo ......Decalque ........Altrad Belle Logo ......... 1 800/99318 ... Decal ........Altrad Logo .....2 800/99322 ..Decal ......Autocollant ......Rótulo ......Decalque ........GPX 2700 Text ..........1 800/99322 ... Text Transfer ......GPX 2700 .......2 800/99323 ..
