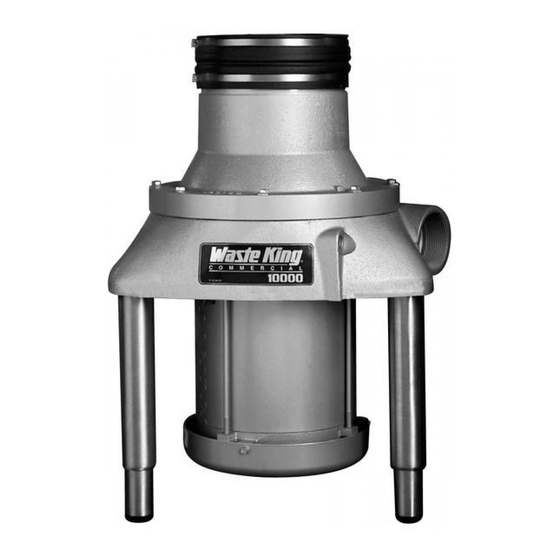

Waste King 3000 Installation Instructions Manual

BEFORE INSTALLING, READ ENTIRE INSTRUCTIONS CAREFULLY.
RISK OF INJURY TO PERSONS FROM HAZARDOUS MOVING PARTS. SERIOUS INJURY POSSIBLE IF
NOT PROPERLY INSTALLED WITH A HOPPER OR A CONE SPECIFIED IN THE INSTRUCTION MANUAL.

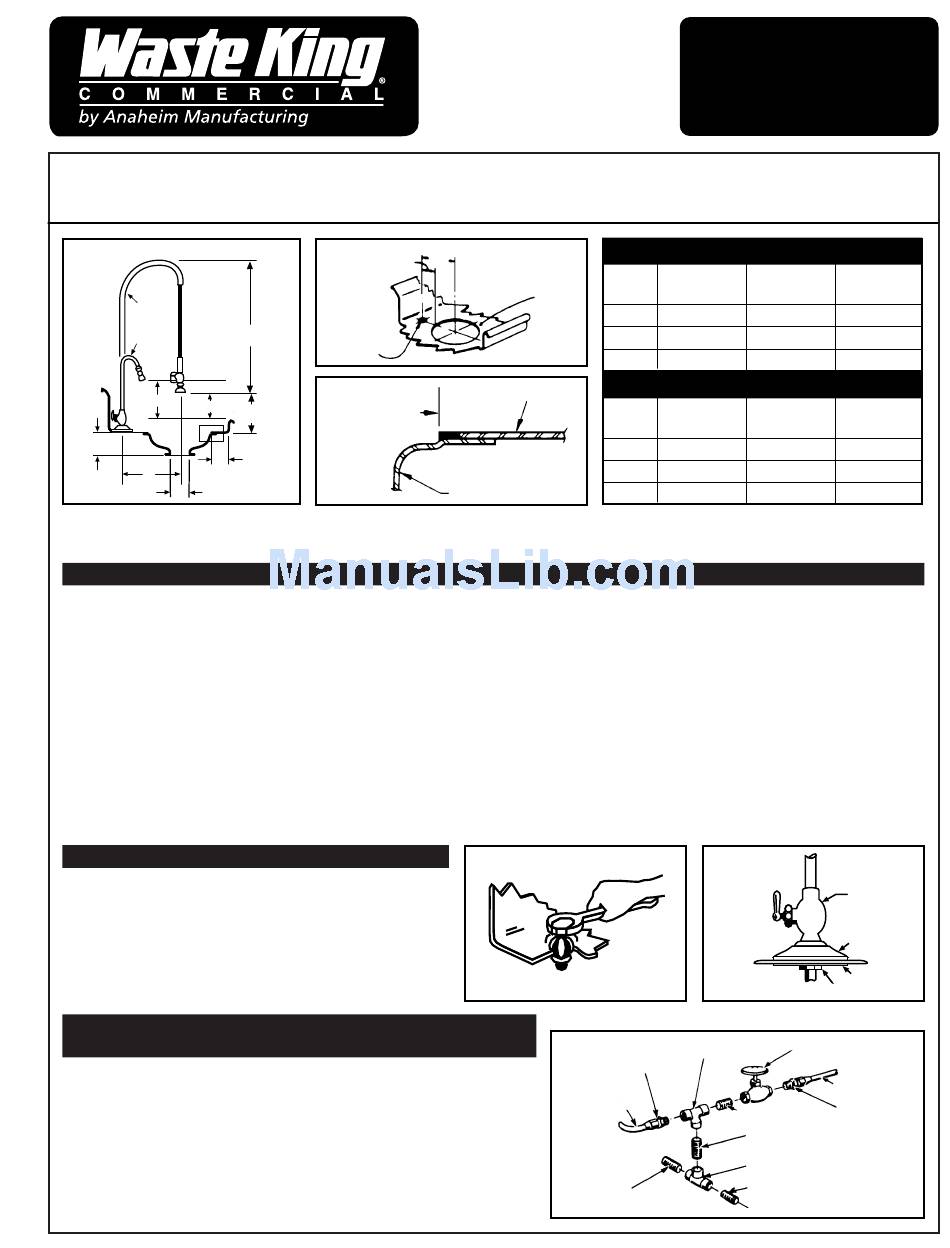

FIG. 1
No. 9T
SPRAY
RINSE
APPROX.
No. 6T
30"
9" MIN.
6" MIN.
APPROX. 14"
6-5/8"
2" TO 4"
A
6"
IF YOU ARE REPLACING AN OLD DISPOSER GO TO POSITIONING AND
INSTALLATION OF COMMERCIAL DISPOSER
INSTALLATION OF CONE SINK INTO DISH OR WORKTABLE
1. (See Figures 1 and 2.) Locate hole center as shown on Figure 2. Cut a "C" (Figure 2) diameter hole in dish or work table, a minimum of 2"
from the inside front edge (operator's side). Hole can be cut with a "nibbler" after a knockout hole 1
2. Lift cone to underside of table with cone flange overlapping all around (Figures 1 and 3).
3. Check alignment of cone spray fittings to be sure they are in the proper position. For 15" and 18" cones, position such that holes are located
to right and left side of operator. (See Figure 7 for location.)
4. Tack weld, spot weld, bolt, or rivet flange of cone sink to underside of dish or work table. If bolted or riveted, smooth top surface and wash-
solder around bolt or rivet heads and sand smooth.
5. Bead weld or solder and wash-solder all around where the table joins flange of cone sink for a clean, watertight, sanitary installation.
6. The cone sink has been designed with the step, as shown in Figure 3. In the welding or soldering operation required to assemble the cone
sink to the dish or work table, every attempt should be made to keep the recessed, flat portion of the cone free of the weld or solder materi-
al. This will minimize the clean-up time required and provide a smooth, flat surface for any cover.
7. Minimum installation criteria:
• Minimum clearance between left and right side of waste disposer and side wall: 18 inches.
• Minimum clearance to back wall: 10 inches.
• No front panel/door between waste disposer installation cavity under a sink/dish table and room.
SPRAY-RINSE INSTALLATION
1. Locate center (Figures 1 and 2).
2. Drill 7/16" diameter hole through center.
3. Assemble 7/8" punch and tighten bolt head, as illustrated,
until the die pierces the stainless steel, leaving a clean
opening of 7/8".
4. Place body valve and base in position, assemble washer
and locknut as shown in Figure 5.
5. Attach vol-temp assembly to the projecting nipple.
POSITIONING AND INSTALLATION
OF COMMERCIAL DISPOSER
1. Subassemble plumbing for swirl sprays as shown in detail in Figure 6,
and as shown assembled on final unit in Figure 7.
2. Slide Hush Cushion ® up over edge of flange on cone sink. The inner
edge of this Hush Cushion
3. Slide one clamp ring over Hush Cushion
and tighten, this firmly attaches the Hush Cushion
NOTE: On the six inch opening only to make certain that the Hush Cushion
is not mounted upside down, look down into the cone sink from above the
work table and check that the wording is readable on the center plug on the
Hush Cushion ® . This reads, "Remove before using".
FIG. 2
B
SPRAY
RINSE
HOLE
FIG. 3
FLAT PORTION
OF CONE SINK
® is chamfered to facilitate this operation.
® , place between two upper beads
® to the cone sinks.
INSTALLATION
INSTRUCTIONS
A
SINK
HOLE
C DIA.
DISH TABLE
CONE SINK
FIG. 4
7/8" PUNCH
FIG. 6
1/2" TUBE
FITTING
1/2" COPPER
TUBING
®
1/2" X 4" NIPPLE
COMMERCIAL
DISPOSER MODELS
2000, 3000, 5000
AND 10000
MODEL 6T
2216 2215
12" CONE 15" CONE
1 3
A 10 / " 11 / "
4 4
1 1
B 3 / " 3 / "
2 2
1 1
C 13 / " 16 / "
2 2
MODEL 9T
2216 2215
12" CONE 15" CONE
7 7
A 12 / " 12 / "
8 8
1 5
B 6 / " 4 / "
8 8
1 1
C 13 / " 16 / "
2 2
1
/ " diameter has been punched.
2
FIG. 5
SPRAY RINSE
1/2" "T" GLOBE VALVE 1/2"
1/2" CLOSE
NIPPLE
NIPPLE 1/2" X 6"
1/2" "T"
1/2" CLOSE NIPPLE
2211
18" CONE
1
13 / "
4
1
3 / "
2
1
19 / "
2
2211
18" CONE
7
12 / "
8
1
3 / "
8
1
19 / "
2
BODY
VALVE
BASE
WASHER
LOCKNUT
1/2" COPPER
TUBING
1/2" TUBE
FITTING
