Hitachi CP-A200 User Manual

Hitachi CP-A200 User Manual

Technical manual
Hide thumbs Also See for CP-A200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Projector
CP-A200
User's Manual (detailed)
Technical
NOTE

Advertisement

Table of Contents
loading

Related Manuals for Hitachi CP-A200

Summary of Contents for Hitachi CP-A200

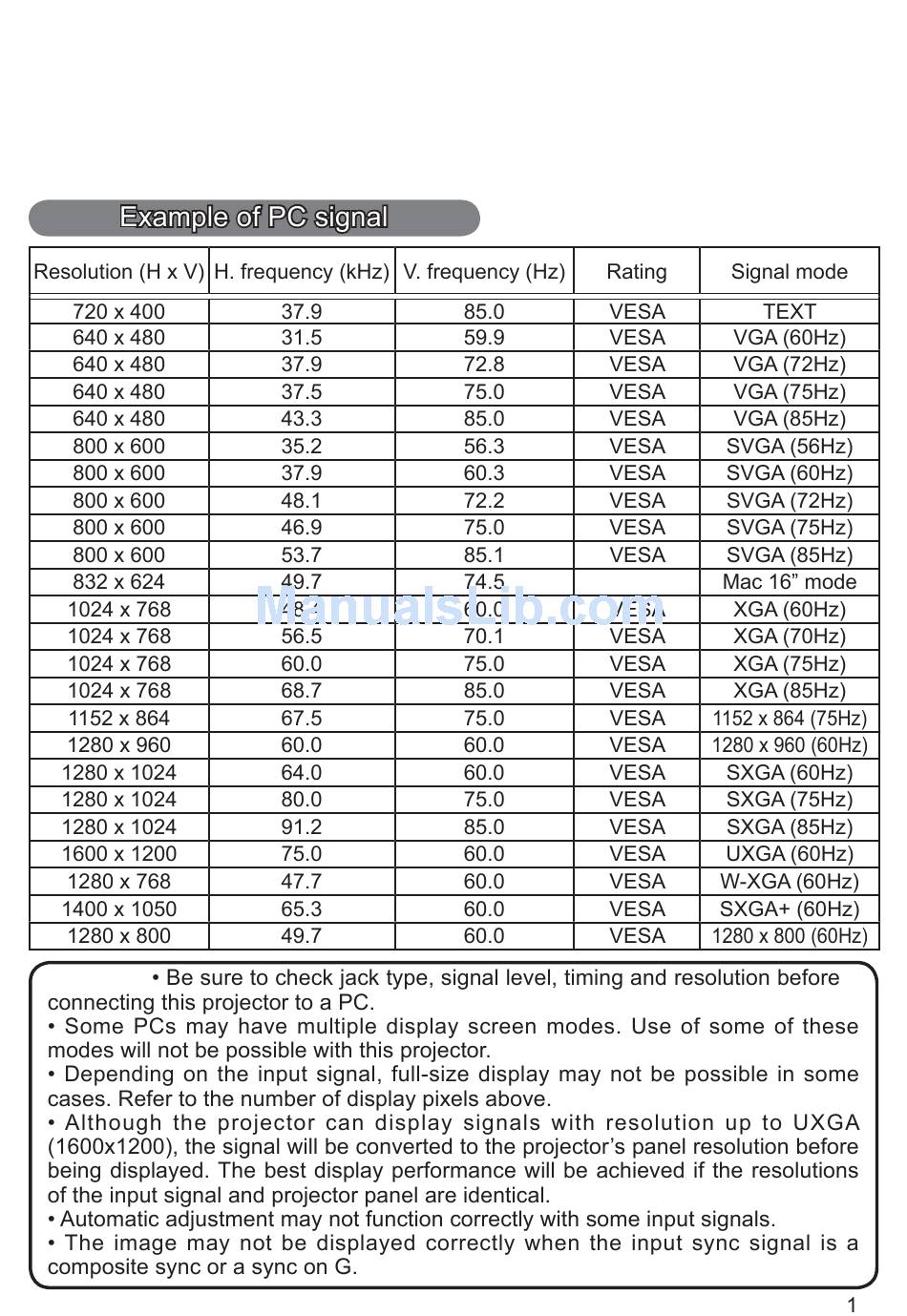

  • Page 1 Projector CP-A200 User's Manual (detailed) Technical NOTE...
  • Page 2 Initial set signals Active time (C) Active time (c)

  • Page 3: Monitor Out

    Connection to the ports COMPUTER IN1 COMPUTER IN2 MONITOR OUT AUDIO CONTROL S-VIDEO AUDIO IN VIDEO AUDIO IN3 COMPUTER IN1, COMPUTER IN2, MONITOR OUT B , C B , C...

  • Page 4: Component Video

    Connection to the ports (continued) COMPUTER IN1 COMPUTER IN2 MONITOR OUT AUDIO CONTROL S-VIDEO AUDIO IN VIDEO AUDIO IN3 (component video) S-VIDEO VIDEO...

  • Page 5: Audio Out

    Connection to the ports (continued) COMPUTER IN1 COMPUTER IN2 MONITOR OUT AUDIO CONTROL S-VIDEO AUDIO IN VIDEO AUDIO IN3 AUDIO IN1, AUDIO IN2 AUDIO IN3 AUDIO OUT To input SCART RGB signal; VIDEO AUDIO IN3...
  • Page 6 Connection to the ports (continued) COMPUTER IN1 COMPUTER IN2 MONITOR OUT AUDIO CONTROL S-VIDEO AUDIO IN VIDEO AUDIO IN3 CONTROL...

  • Page 7: Connecting The Cable

    RS-232C Communication Connecting the cable Communications setting 1. Protocol 2. Header 3. Command data...
  • Page 8 RS-232C Communication (continued) Requesting projector status (Get command) Header + Command data (‘02H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’) ‘1DH’ + data (2 bytes) Changing the projector settings (Set command) Header + Command data (‘01H’ + ‘00H’ + type (2 bytes) + setting code (2 bytes)) ‘06H’...

  • Page 9: Picture Mode

    RS-232C communication Command Data Names Operation Type Header Action Type Setting Code Power Turn off BE EF 06 00 2A D3 01 00 00 60 00 00 Turn on BE EF 06 00 BA D2 01 00 00 60 01 00 BE EF 06 00 19 D3...
  • Page 10 RS-232C communication (continued) Command Data Names Operation Type Header Action Type Setting Code User Gamma Pattern BE EF 06 00 FB FA 01 00 80 30 00 00 9 steps gray scale BE EF 06 00 6B FB 01 00 80 30 01 00 15 steps gray scale...

  • Page 11: Color Temp

    RS-232C communication (continued) Command Data Names Operation Type Header Action Type Setting Code COLOR TEMP HIGH BE EF 06 00 0B F5 01 00 B0 30 03 00 CUSTOM-1 (HIGH) BE EF 06 00 CB F8 01 00 B0 30 13 00 BE EF 06 00...
  • Page 12 RS-232C communication (continued) Command Data Names Operation Type Header Action Type Setting Code COLOR BE EF 06 00 B5 72 02 00 02 22 00 00 Increment BE EF 06 00 D3 72 04 00 02 22 00 00 Decrement BE EF 06 00 02 73...
  • Page 13 RS-232C communication (continued) Command Data Names Operation Type Header Action Type Setting Code OVER SCAN BE EF 06 00 91 70 02 00 09 22 00 00 Increment BE EF 06 00 F7 70 04 00 09 22 00 00 Decrement BE EF 06 00...
  • Page 14 RS-232C communication (continued) Command Data Names Operation Type Header Action Type Setting Code FRAME LOCK – TURN OFF BE EF 06 00 3B C2 01 00 50 30 00 00 COMPUTER1 TURN ON BE EF 06 00 AB C3 01 00 50 30 01 00 BE EF...
  • Page 15 RS-232C communication (continued) Command Data Names Operation Type Header Action Type Setting Code PERFECT FIT BE EF 06 00 FD 89 02 00 24 21 00 00 Right Top corner -V Increment BE EF 06 00 9B 89 04 00 24 21 00 00 Decrement...
  • Page 16 RS-232C communication (continued) Command Data Names Operation Type Header Action Type Setting Code MONITOR OUT - COMPUTER1 BE EF 06 00 3E F4 01 00 B0 20 00 00 COMPUTER1 TURN OFF BE EF 06 00 CE B5 01 00 B0 20 FF 00 BE EF...
  • Page 17 RS-232C communication (continued) Command Data Names Operation Type Header Action Type Setting Code AUDIO-COMPUTER1 Set AUDIO1 BE EF 06 00 6E DC 01 00 30 20 01 00 AUDIO2 BE EF 06 00 9E DC 01 00 30 20 02 00 AUDIO3 BE EF 06 00...
  • Page 18 RS-232C communication (continued) Command Data Names Operation Type Header Action Type Setting Code LANGUAGE ENGLISH BE EF 06 00 F7 D3 01 00 05 30 00 00 (* See the bottom of FRANÇAIS BE EF 06 00 67 D2 01 00 05 30 01 00 this page.)
  • Page 19 RS-232C communication (continued) Command Data Names Operation Type Header Action Type Setting Code BLANK On/Off TURN OFF BE EF 06 00 FB D8 01 00 20 30 00 00 TURN ON BE EF 06 00 6B D9 01 00 20 30 01 00 BE EF 06 00...
  • Page 20 RS-232C communication (continued) Command Data Names Operation Type Header Action Type Setting Code MY BUTTON-2 COMPUTER1 BE EF 06 00 C6 32 01 00 01 36 00 00 COMPUTER2 BE EF 06 00 06 30 01 00 01 36 04 00 COMPONENT BE EF 06 00...
