Summary of Contents for Motorvac TRANSTECH IV+

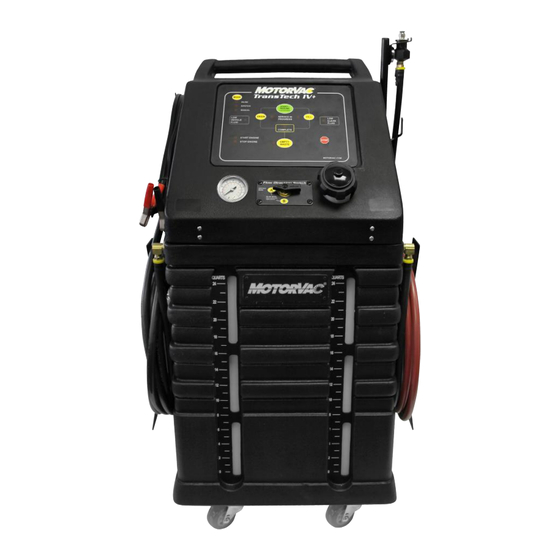

- Page 1 TRANSTECH IV+ Transmission Service System Part No. 500-1125B USER MANUAL 1324 Blundell Rd. Mississauga ON Tel. 905.615.8620 Fax. 905.615.9745 www.motorvac.com...
- Page 2 Please study this Operators Manual to become thoroughly familiar with the TRANSTECH IV+ Transmission Service System. Thank you for choosing MotorVac. Sincerely, The MotorVac Team. info@motorvac.com...
-
Page 3: Table Of Contents
Inline Exchange ……………………………………………………………..……………....Dipstick Exchange ……………………………………………………………..……………..10-11 Changing Fluid Types ..........................Maintenance ............................Maintenance Procedures .………………………………………………………..…..………………. Cleaning the Unit’s Filter Screen ……………………………………………………..………….. Troubleshooting and Additional Help ………………………………………………………..…………..… Error Alerts …………………………………………………………………........System Accessories …………………………………………………………………..…....... 16-18 Parts and Ordering Information …………………………………………………………………..…....info@motorvac.com www.motorvac.com... -
Page 4: System Features And Functions
EMPTY STOP ENGINE WASTE MOTORVAC.COM Front View - Control Panel Features and Functions MODE Button - Toggles from Inline to Dipstick and enters manual mode for both functions INLINE LED - Unit set to Inline exchange when LED is on (see below, Fig. -
Page 5: Control Panel Features And Functions
LOW CLEAN FLUID LED – Illuminates when clean fluid in the unit’s clean tank is low or empty. STOP BUTTON – Pauses service and stops alarms. Hold for 5 seconds to reset unit. EMPTY WASTE BUTTON - Empties fluid from unit’s waste tank. MODE BUTTON – Toggles between four different modes (Inline/Dipstick etc) info@motorvac.com www.motorvac.com... -
Page 6: Getting To Know The Transtech Iv
Waste Disposal Hose - Is inserted into the shop’s fluid recycling container or into a suitable container for proper disposal of used transmission fluid. Disposal Hose Ball Valve - Open manually before EMPTY WASTE button is pushed. info@motorvac.com www.motorvac.com... -
Page 7: Safety Information And Precautions
25. Over exposure can have harmful effects on eyes, skin, respiratory system and possible unconsciousness and asphyxiation. 26. Improperly blocked vehicles can move. 27. Set the parking brake and chock the wheels. 28. Moving vehicles can cause injury. info@motorvac.com www.motorvac.com... - Page 8 Wear chemical resistant gloves when connecting or disconnecting fittings and adapters. Wrap a shop towel around pressure fittings and adapters when disconnecting. Avoid exposure to flames, sparks, hot engine parts, and other ignition sources. Explosion or flame or exposure to flammable liquid and vapors can cause injury. info@motorvac.com www.motorvac.com...
-
Page 9: Auto Prime Procedure
The unit will then set the waste tank zero level by pumping fluid from the waste tank into the clean tank. When complete, the unit will automatically reset. 7. Return the hoses to their original location. 8. The initial setup is complete. info@motorvac.com www.motorvac.com... -
Page 10: Transmission Service Procedure
2. Start the vehicle. 3. Observe pressure gauge and toggle flow direction switch between position A and B. Whichever position has greater pressure is correct. Leave valve in that position for the entire service Select position with higher pressure info@motorvac.com www.motorvac.com... -
Page 11: Inline Exchange
COMPLETE START ENGINE STOP STOP ENGINE EMPTY WASTE MOTORVAC.COM Control Panel Pressure Gauge Automatic Fluid Exchange Operation. 1. Make sure the TransTech IV+ new fluid tank is filled with the correct type and amount of Transmission Fluid. 2. Connect TransTech IV+ power leads to the vehicle’s battery. - Page 12 However, additional ATF can be added after a service has started but ONLY when the service is paused. Any ATF added while the unit is performing a service will not be properly measured and may result in an OVER FILL of the vehicle’s transmission! info@motorvac.com www.motorvac.com...
-
Page 13: Dipstick Exchange
6. Measure the vehicle dipstick and set spacer on dipstick fill tube/drain tube on TransTech IV+ to the correct length. Insert the TransTech IV+ tube into the vehicles dipstick tube. 7. Press START/RESUME button to begin service. info@motorvac.com www.motorvac.com... - Page 14 DRAIN or FILL buttons. 16. Direct waste hose to a suitable container; open the ball valve on the end of the waste hose and press EMPTY WASTE to empty dirty fluid tank. info@motorvac.com www.motorvac.com...
-
Page 15: Changing Fluid Types
5. Press and hold the EMPTY WASTE button. The pump will operate until the EMPTY WASTE button is released. 6. Tip the unit slightly backwards to let the fluid flow toward the back of the tank for complete evacuation. 7. Pressing the STOP button for five seconds will reset the unit. info@motorvac.com www.motorvac.com... -
Page 16: Maintenance
4. Assemble in reverse order. NOTE: Use caution not to pinch O-ring on reassembly 5. Enter initials, date, and a check mark in the appropriate boxes of the Maintenance Record at the end of the chapter. 6. Replace the external filter located in the INLINE RETURN hose. info@motorvac.com www.motorvac.com... -
Page 17: Troubleshooting And Additional Help
Check wiring for damage 6. Unit will not start. Light (LED) on below the ‘fill Check for residual pressure on the gauge. Pressure switch’ in the dirty hose or defective pressure switch or wiring. info@motorvac.com www.motorvac.com... -
Page 18: Error Alerts
B for A for dipsticks dipstick service service. TransTech lV+ MODE INLINE DIPSTICK START / RESUME MANUAL FLUID EXCHANGE DRAIN SERVICE IN FILL PROGRESS VEHICLE CLEAN FLUID FLUID COMPLETE START ENGINE STOP EMPTY STOP ENGINE WASTE MOTORVAC.COM Fig.1 info@motorvac.com www.motorvac.com... -
Page 19: System Accessories
Adapter Trans BMW - M18 x 1.5 F Saab Adapter Trans Saab, Citroen, Citroen 060-2080 Lancia - M14 x 1.5M Lancia 060-2090 Adapter Trans Fiat - M12 x 1.75 M Fiat 060-2095 060-2105 Adapter Trans Audi - M22 x 1.5 M Audi info@motorvac.com www.motorvac.com... - Page 20 O’Ring P/N: 080-3602 BMW (Jaguar & Mercedes) BMW (Jaguar & Mercedes) 062-2005 062-2000 12mm Female Receptacle / Flange Type BMW (Jaguar & Mercedes) 10mm Male O’Ring Type / Flange Style 062-2010 062-2015 O-Ring P/N: 080-3402 BMW (Jaguar & Mercedes) info@motorvac.com www.motorvac.com...
-
Page 21: System Accessories
Jaguar ZF Female Jaguar 062-2080 ADAPTER TRANS PSA HEAT EXCH SMALL 062-2080 Peugeot and Citoën 062-2085 ADAPTER TRANS CITROEN HT EXCH Citroen XM 062-2090 ADAPTER TRANS PSA HEAT EXCH LGE 062-2090 Peugeot and Citoën 062-2095 062-3000 VAG Male Adapter 062-3000 info@motorvac.com www.motorvac.com... -
Page 22: Parts And Ordering Information
MQD X 1/4” FPT General Application 080-0593 Coupler, ¼” MQD x ¼” MPT, Zp General Application 080-0594 080-0595 MQD X 3/8” FPT General application 080-0595 080-0594 MQD X 3/8” MPT General application 200-6101 High pressure adapter assembly General application info@motorvac.com www.motorvac.com... - Page 23 Pressure Gauge Assembly (0-160 psi.) 020-8043 Harness, External Power 030-0055 Ball Valve 1/4FNPT Brass Chrome Plated ORDERING PARTS Parts for the TransTech IV+ may be ordered by calling MotorVac Customer Service at 1.800.841.8810. Please have your part numbers ready. www.motorvac.com info@motorvac.com info@motorvac.com www.motorvac.com...
- Page 24 ZIM14-00932 1324 Blundell Rd. Mississauga ON Tel. 905.615.8620 Fax. 905.615.9745 www.motorvac.com...
