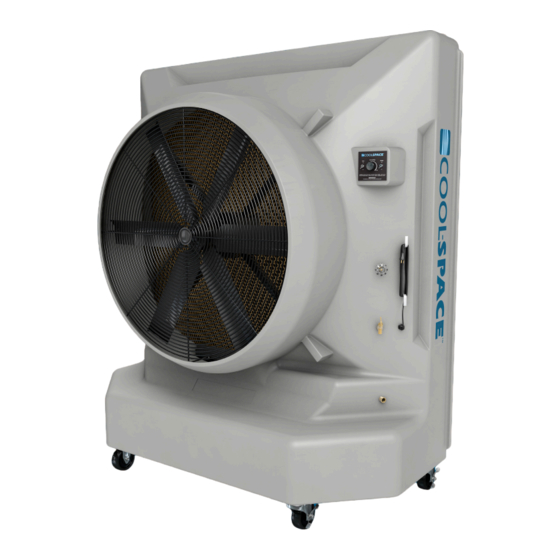

- Page 1 Operation and Maintenance Manual BLIZZARD CS6-50-VD 120V/60HZ...
-
Page 3: Table Of Contents
CS6-50-VD Operation & Maintenance Manual Table of Contents: 1.0 Introduction 2.0 Unpacking your COOL- SPACE ® 3.0 Set-up of COOL-SPACE ® unit 3.1 Connecting the water supply 3.2 Connecting the electrical supply 4.0 Operating procedures 4.1 Filling the unit with water 4.2 Starting the fan 4.3 Starting the pump and adjusting the water flow 5.0 Maintenance and storage... -
Page 4: Introduction
Signal Word Definitions DANGER indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury. WARNING indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury. CAUTION indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. -
Page 5: Connecting The Electrical Supply
3.2 Connecting the electrical supply The COOL-SPACE ® unit should be plugged into a fused or circuit breaker protected 20 amp, 120 volt, and 60 Hz circuit. All models utilize standard 120-volt power supply. The unit should be plugged into a fused or circuit breaker protected 20 amp, 120 volt, 60 Hz circuit. -
Page 6: Operating Procedures
4.0 Operating procedures There are 3 factors to consider when determining where to place the COOL-SPACE ® unit. 1. Fresh air supply: The inlet side of the unit (pad side) requires a constant, uninterrupted supply of fresh air for maximum performance. A distance of 3 feet clear space to any obstructions at the rear or inlet side of the unit is recommended. -
Page 7: Starting The Fan
4.3 Starting the pump and adjusting the water flow DO NOT flood the pads with water, keep them moist. New pads will take a few days before they become completely saturated. It is normal to have several dry streaks on the face of the pads about 1 to 2 inches wide. -
Page 8: Daily Maintenance
5.2 Daily maintenance When shutting down the COOL-SPACE ® unit at the end of each workday, the pump should be turned off approximately 15 minutes before the fan is turned off. This will allow the pads to drain and dry out. This simple guideline will ensure long and efficient pad life as well as help to control mildew and bacteria growth. -
Page 9: Troubleshooting/Repair
6.0 Troubleshooting/Repair 6.1 Troubleshooting ELECTRICAL SHOCK HAZARD Disconnect the power supply before performing any service or maintenance on the unit. Failure to do so may result in serious injury or death. The COOL-SPACE ® unit consists of three systems: the fan, water distribution and pump. It is ®... - Page 10 6.1 Troubleshooting (continued) Please use caution when troubleshooting or repairing all electrical components. Be certain that all power is disconnected from the COOL-SPACE ® unit before the cooling pads are removed to gain access to the fan. Water System The water distribution system consists of two (2) assemblies: o The Water Inlet Assembly Brass bulkhead fitting ...
- Page 11 6.1 Troubleshooting (continued) Pump Problem Check Solution Pump motor will not run when Turn fan on to check for power. If fan doesn’t start; check switch is turned on. Is water level high enough to breaker and cord plug-in. If fan make the low- water cut-off does start;...
-
Page 12: Repair Procedures
6.2 Repair procedures Repairs should be performed by a qualified technician! ELECTRICAL SHOCK HAZARD Disconnect the power supply before performing any service or maintenance on the unit. Failure to do so may result in serious injury or death. BLIZZARD (CS6-50-VD) Fan Motor Replacement 1. -
Page 13: Warranty
7.0 Warranty Under normal use, the warranty covers the unit and its components for sixty (60) months from date of invoice. Refer to the manufacturer’s Warranty Policy for details. (Applies to units purchased after January 1, 2017) 7.1 Warranty Form You must register your COOL-SPACE Portable Evaporative Cooler within fifteen (15) days of ®... - Page 15 315 N Madison Street Fortville, IN 46040 317-577-0417 · 800-557-5716 support@cool-space.com www.COOL-SPACE.com CS-MAN-50V60H 02162018al...
- Page 16 Power Indicator Red Light - Power Connected Green Light - Power On Low Water Indicator Remote Power Sensor On/O 15 Min. Countdown Pump Auto/Manual Timer Mode Switches machine between auto and manual mode In Auto Mode • Indicator light will be on •...
