Summary of Contents for KRESS Mission KR111

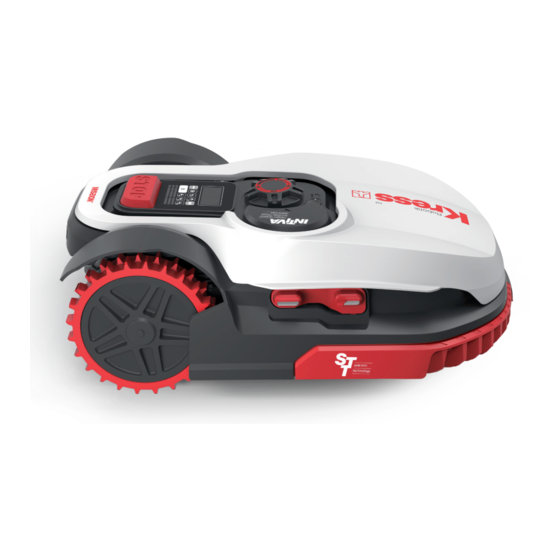

- Page 1 Owner's Manual KR110 KR111...
-
Page 2: Table Of Contents
Original instructions Table of Contents 1. Product Safety 1.1 General & Additional safety instruction 1.2 Information on Mission 2. Component list 3. Technical data and noise data 3.1 Technical data 3.2 Noise data 4. Control panel 5. Understanding Your Mission 5.1 How does my Mission know what to mow? 5.2 How does my Mission... -
Page 3: Product Safety
1. Product safety Operation 1. General a) Never operate the appliance with defective 1.1 General & additional safety instructions guards, or without safety devices, for example deflectors, in place. WARNING: Read all safety warnings and b) Do not put hands or feet near or under rotating all instructions. - Page 4 Servicing of the appliance should be according to manufacturers’ instructions. j) Recharge only with the charger specified by Kress. Do not use any charger other than Recommendation that specifically provided for use with the equipment. A charger that is suitable for one...
-
Page 5: Information On Mission
1.2 Information on Mission WARNING – robotic lawnmower can be dangerous if incorrectly used. Read Do not expose to rain or water. through the Operator’s manual carefully and understand the content before using your robotic lawnmower. Do not wash the machine with a high pressure washer. -
Page 6: Component List
2. Component list 12 11 Wed 03/21 12:14 10.2 inch 10.2 inch... -
Page 7: Technical Data And Noise Data
Charging strips Handle Cutting height adjustment knob Cutting blade Rear driving wheel Protective cover Rain sensor Contact pins STOP button Charging base Display Power adapter Keypad Wire pegs On/off key Boundary wire Start key Charging base fixing nails 10. Front wheel Boundary wire distance gauge 11. -
Page 8: Noise Data
* Voltage measured at no load. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts. 3.2 Noise data A weighted sound pressure = 40.6 dB (A), K = 3.0 dB(A) A weighted sound power = 59.2 dB (A), K = 0.5 dB(A) Wear ear protection when sound pressure is over 80dB(A) -
Page 9: Control Panel
Intended Use The garden product is intended for domestic lawn mowing. It is designed to mow often, maintaining a healthier and better looking lawn than ever before. Depending on the size of your lawn, Mission may be programmed ™ to operate at any time or frequency. It is not intended for digging, sweeping or snow cleaning. 4. -
Page 10: Understanding Your Mission
5. Understanding Your Mission Congratulations on your new purchase of Mission and welcome to the care-free life of automatic mowing. In the following, we would like to help you better understand how your Mission thinks. 5.1 How does my Mission know what to mow? The Mission chooses its direction at random. -
Page 11: How Does My Mission Tm Know Where To Go
5.2 How does my Mission know where to go? Your Mission is capable of doing things on its own. Mission knows when it needs to go to its charging base to charge, can sense when it is raining, can stop itself if it senses a problem, and knows to stop, draw back, and turn around when it bumps into something blocking its path. -
Page 12: Cut To Edge
5.3 Cut to edge Off-centered blade turning disc design provides a clean cut with narrowest distance to the boundary or wall. It helps minimize the amount and frequency of manual trimming along the boundary. Additionally, Mission designed with a protective cover underneath that prevents objects from touching the turning blades and/or injury. -
Page 13: App
Step 1: To download the Mission App, use your smartphone to scan the QR code below or download it from Playstore (Google-Android), AppleStore (Apple-iOS) or our website www.kress-robotik.com. Step 2: Enter the Mission APP, and then follow the instructions to connect to your Wi-Fi. -
Page 14: Boundary Wire Basics
7. Boundary wire basics 7.1 Pegging the boundary wire Use the boundary wire distance gauge to set the correct distance between the wire and the border of your lawn (more than 26cm*). * This is the recommended distance. The provided distance gauge ensures proper installation. -
Page 15: Software Update
Method 1: Update via USB. See below for download and installation instructions: (1) Locate the latest software version at: www.kress-robotik.com. Save the file to an empty FAT32 formatted USB (flash drive). Delete any other files on the drive and check the format. If the drive is not formatted in FAT32, please reformat the drive. -
Page 16: Replace The Blades
When the cutting blades are dull and worn out, they should be replaced with the spare blades provided with your Mission™. Spare blades are also available at your nearest Kress retailer. A. Replace the Blades After some time, usually every season, your Mission™’s blades will need to be replaced. -
Page 17: Cleaning The Contact Pins And The Charging Strips
C. Clean the contact pins and the charging strips Clean the contact pins located on the charging base and the charging strips located on Mission™ using a cloth. Remove any built up grass clippings or debris around the contact pins and charge strips periodically to ensure Mission™... -
Page 18: Function Messages
10. Function messages Cutting grass Cutting grass according to the program setting The rain sensor detects water. Mission™ will return to the charging base and stay there for the time you have programmed it to do so. When dry, Mission™ will automatically begin the delay and countdown and Raining then return to mow. -
Page 19: Error Messages
Not working today Stand-by, will start according to program set. Work done today According to the setting of “Customize work zone”, Searching working area Mission™ is searching a certain area to mow. Charging 100% Mission™ has completed its charging. Emergency charging Mission™... -
Page 20: Security
• If Mission™ runs abnormally once in a while, please try to restart it. If the problem cannot be solved, please contact Kress service agent for help. • Do not wash the machine with a high pressure washer. This could cause damage to the battery or the machine. -
Page 21: Troubleshooting
13. Troubleshooting If your Mission™ does not work correctly, follow the trouble shooting guide below. If the fault persists, contact your dealer. Symptom Cause Solution Check the charging base is connected The LED light on the charging There is no power. properly to the charger and the charger base does not turn on. - Page 22 Clean the contact pins located on the Poor connection caused by charging base and the charging strip on debris on the charging strip. Mission™ using a cloth. The charging time is far more than the rated charging time. The charging protection Place the charging base in a shady area program has activated due to or wait until the temperature has cooled...
-
Page 23: Environmental Protection
Foreign obstacles, such as Remove foreign objects from underside twigs and branches may be Mission™ wheels skid or of Mission™. lodged under Mission™. damage lawn. The lawn is too wet. Wait until lawn has dried. Mission™ exits the boundary Reposition the boundary wire away from The boundary wire is placed on wire due to high speed when slopes that are steeper than 17% (10°). -
Page 24: Declaration Of Conformity
Declaration of conformity Positec Germany GmbH Grüner Weg 10, 50825 Cologne, Germany Declare that the product, Description Robotic Lawnmower Type KR110 KR111 (100-199- designation of machinery, representative of Robotic Lawnmower) (Year, article number and month of serial number are placed on the back page. The complete serial number is clearly stated on the enclosure of lawnmower) with battery charger KA0200 / KA0201 / KA0202 / KA0203 and charging base KA0070 Cutting grass... - Page 25 www.kress-robotik.com...
