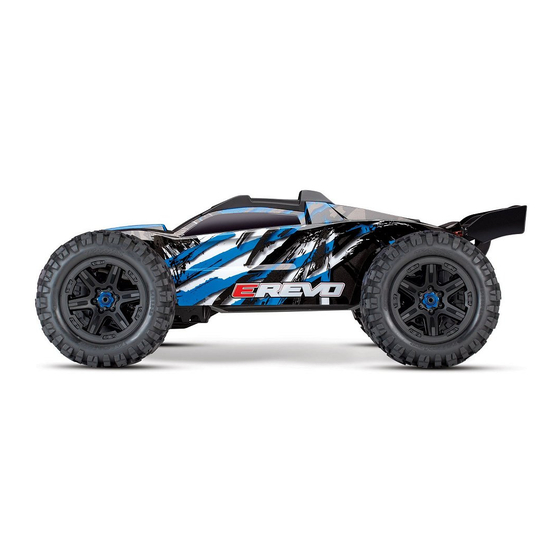

Traxxas E-Revo VXL Brushless Owner's Manual

Hide thumbs

Table Of Contents

MODEL 86086-4

OWNER'S MANUAL

Table of Contents

Need help?

Do you have a question about the E-Revo VXL Brushless and is the answer not in the manual?

Questions and answers

Summary of Contents for Traxxas E-Revo VXL Brushless

Page 1 MODEL 86086-4 OWNER’S MANUAL...
Page 2 CONTROL read and follow the procedures in this manual. DRIVING YOUR MODEL Thank you again for going with Traxxas. We work hard every day to assure you the highest level of customer satisfaction possible. BASIC TUNING We truly want you to enjoy your new model!
Page 3: Before You Proceed
Technical support is available Monday through Friday from 8:30am the model carefully. If for some reason you decide it is not what to 9:00pm central time. Technical assistance is also available at Traxxas. Internet you wanted, then do not continue any further. Your hobby dealer com.
Page 4: Safety Precautions
SAFETY PRECAUTIONS All of us at Traxxas want you to safely enjoy your new model. • Disconnect the Battery: Always disconnect the battery from the Operate your model sensibly and with care, and it will be exciting, speed control when not in use.
Page 5 • DO NOT disassemble, crush, short circuit, or expose the batteries to associated with LiPo battery use. Traxxas does not recommend flame or other source of ignition. that anyone under the age of 14 use or handle LiPo battery packs without the supervision of a knowledgeable and responsible •...
Page 6: Tools, Supplies And Required Equipment
RC toolbox: • Safety glasses • Traxxas Ultra Premium Tire Glue, part #6468 (CA glue) • Hobby knife • Side cutters and/or needle Battery compartment springs...
Page 7 Rocker Rear Chassis Brace Front Bumper Skid Plate Front Chassis Brace Battery Compartment Door Rocker Shock LED Light Pipe Chassis Push Rod Receiver Box Rear Suspension Arm Traxxas High-Current Connector Antenna Mount Spring Pre-load Adjuster Steering Link Front Suspension Arm...
Page 8: Quick Start: Getting Up To Speed
QUICK START: GETTING UP TO SPEED The following guide is an overview of the procedures for getting your model running. Look for the Quick Start logo on the bottom corners of Quick Start pages. The Quick Start Guide is not intended to replace the 1.
Page 9: Radio System
Cogging - Cogging is a condition sometimes associated with brushless motors. Typically it is a slight stutter noticed when Your model includes the latest Traxxas TQi 2.4GHz transmitter with Applying the Decals accelerating from a stop. It happens for a very short period as Traxxas Link™...
Page 10 When flow is constricted, energy is converted to heat and is battery terminal and ground. Using the analogy of the garden lost. Traxxas power systems are optimized to reduce electrical hose, while current is the quantity of water flow in the hose, resistance and the resulting power-robbing heat.
Page 11 TRAXXAS TQ RADIO SYSTEM Your model is equipped with the TQi 2.4GHz transmitter with Traxxas Link ™ Model Memory. The transmitter has two channels for Wiring Diagram controlling your throttle and steering. The receiver inside the model has 5 output channels. Your model is equipped with two servos and an electronic speed control.
Page 12: Installing Transmitter Batteries
Make certain you choose the correct type of charger for the batteries you possibly installed incorrectly. Replace with select. Traxxas recommends you choose a genuine Traxxas EZ-Peak iD new batteries. The power indicator light charger for safer charging and maximum battery life and performance.
Page 13 1. Open the battery compartment door by pressing on the release tabs. change the weight distribution and handling if desired. The E-Revo with Traxxas Battery iD. This includes battery retainers that can be used in the front of the battery...
Page 14 The electronic steering trim located on the face of the transmitter adjusts the neutral (center) point of the steering channel. Note: Traxxas Stability Management (TSM) must be completely turned off while adjusting steering trim. See page 16 for TSM 14 • E-REVO VXL BRUSHLESS...
Page 15: Using Radio System
Multi-Function knob controls 1. Turn on the radio system and check its operation as described in forward to apply brakes. Traxxas Stability Management (TSM). For more Once stopped, return the the previous section. detail on TSM, refer to page 16.
Page 16 Once activated, the SET button can be released. Drive with TSM on and off to test how it is making your control of the vehicle easier and more precise. For more information, visit Traxxas. Note: Certain driving surfaces or conditions may prevent the com/tsm.
Page 17: Adjusting The Electronic Speed Control
It will blink once, Profile #2 (Race Mode): 100% Forward, 100% Brakes, No Reverse TRAXXAS • 17 then twice, then three times, then repeat. Profile #3 (Training Mode): 50% Forward, 100% Brakes, 50% Reverse...
Page 18 One blink Red accessories, such as LED light kits or additional cooling green, then solid red and then begins fans (see Traxxas.com for additional information). blinking red (indicating the Profile Always be sure to keep the panel cover installed when numbers).
Page 19 Turn the charged batteries are connected. ESC off and contact Traxxas Customer Service for • Voltage LED (V) Slow Blinking Red: The VXL-6s has assistance. entered Low Voltage Protection, Stage 2. When the...
Page 20: Driving Your Model
Your new Traxxas model is designed with water-resistant features to protect the electronics in the model (receiver, servos, electronic • Use good, common sense whenever you are driving your model.
Page 21 The motor will be cooled by water contact and will not conditions. give an accurate indication of appropriate gearing. • The Traxxas TQi transmitter is not water resistant. Do not subject it • Use special care when operating your model in muddy conditions. to wet conditions such as rain.
Page 22 5. Install the wire clamp and tighten the • Differentials: Remove, disassemble, clean, and re-grease the two 2.8x8mm cap screws securely. differential components. Use a light coating of Traxxas high- 6. Using double-sided adhesive foam tape, performance grease (part #5041) on the metal gear teeth. Refer install the receiver into the box.
Page 23: Basic Tuning Adjustments
90mm Travel an adjustment, then you should leave it at its factory setting. Optional springs available from Dot Color Spring Rate Traxxas are listed here. Refer to SUSPENSION TUNING Yellow 14.8 lb/in (2.6 N/mm) your parts list for a complete White 16.6 lb/in (2.9 N/mm)
Page 24 BASIC TUNING ADJUSTMENTS The ride height of the oil) if the model is hopping over small bumps and feels unstable. The model can be changed by viscosity of shock oil is affected by extremes in operating temperature; Important: The shocks are mounting the push rod an oil of certain viscosity will become less viscous at higher assembled at the factory...
Page 25 BASIC TUNING ADJUSTMENTS Static Camber Adjustment ALIGNMENT SETTINGS The wheels can be set to have either The alignment settings are critical for optimizing the performance For caster and roll center positive or negative camber (see of E-Revo. Adjust your alignment as carefully and precisely as you tuning see Advanced Tuning illustration below).
Page 26 The offsets and dimensions designed into the model’s wheels are intentional; therefore, Traxxas between suspension components. The ride height is controlled by cannot recommend the use of other non-Traxxas wheels with where the push rod is installed in the lower suspension arm.
Page 27 BASIC TUNING ADJUSTMENTS This model is equipped with a 2200Kv brushless motor. The gear If you choose to do so, you Gearing Compatibility Chart: Strip of Paper The chart below shows recommended can also set the gear mesh combination that comes stock on each model provides good overall Motor Mount gear combination ranges for your model.
Page 28 7. Position the steering servo saver arm perpendicular to the centerline of the vehicle. If you have questions or need technical assistance, call Traxxas at 1-888-TRAXXAS (1-888-872-9927) (U.S. residents only)
Page 29: Maintaining Your Model
If the bottom of the shock is leaking, then it 4. Check the wiring for any frayed wires or loose connections. is time for a rebuild. The Traxxas rebuild kit for two shocks is 5. Check the mounting of the receiver and servo(s) and part #5462.
Page 30: Advanced Tuning Adjustments
ADVANCED TUNING ADJUSTMENTS This advanced tuning guide will take you one step further into the Roll Center cutting edge technology that has been designed into E-Revo. Follow There are two holes on the Upper Control Arm the instructions provided here to take advantage of E-Revo’s maximum bulkheads to mount each upper Upper Mounting Holes performance potential.
Page 31 ADVANCED TUNING ADJUSTMENTS Bump Steer Elimination Chart Rocker Arm Total Travel Progressive Rate The illustrations and the following table detail the position of the outer 90mm toe link end for various caster and roll center settings to eliminate bump Progressive 1 (60mm up / 30mm down) steer.
Page 32 ADVANCED TUNING ADJUSTMENTS Shock Piston Hole Sizes SHOCK TUNING pliers and tighten the nut with a 4-way wrench to secure the assembly. Multi-tool Shock Functions Shock Pistons 3. Insert the shock shaft assembly through the shock body until the The shock pistons can be replaced piston bottoms out.
Page 33: Motor Installation
From the factory, both the differentials are filled with SAE 50,000W • More power to the wheels viscosity silicone oil. Only use silicone oil in the differentials. Traxxas with the most traction. sells SAE 10,000W and SAE 30,000W viscosity oil (see your parts list). The •...
Page 34: Tq I Advanced Tuning Guide
The Multi-Function knob can be set to control Throttle Sensitivity. Restoring Factory Defaults Traxxas Stability Management (TSM) by default, see page 16). Accessing Throttle Sensitivity works the same way as Steering Sensitivity, but the programming menu is done by using the menu and set buttons on applies the effect to the throttle channel.
Page 35 This is especially handy if you operate multiple equipped with a built-in failsafe This allows you to fine-tune the servo settings to prevent binding vehicles with a single transmitter via Traxxas Link Model Memory. ™ function that returns the throttle...
Page 36 Model Lock locked. Press and hold MENU to return to driving mode. The Traxxas Link Model Memory feature can store up to thirty models Note: To unlock a memory, press SET twice at step 5. The LED will (receivers) in its memory. If you bind a thirty-first receiver, Traxxas Link blink rapidly green to indicate the model is unlocked.
Page 37 Transmitter is restored to default Press Delete Model C onfirm Deletion Two Blinks Green One Blink Red *Torque Control is a feature designed only for use with the power system in the Traxxas Funny Car Race Replica (Model #6907).
Page 38 ADVANCED TUNING GUIDE Set Multi-Function MENU TREE FORMULAS knob for STEERING Press/hold MENU Press SET Press SET to confirm Press/hold MENU SENSITIVITY (Expo) To select functions and make adjustments to the TQi transmitter without green LED blinks red LED blinks green LED blinks (x8) returns to driving mode referencing the menu tree, turn your transmitter on, find the function in the...
Page 39 For more information about the Traxxas Link When you equip your model The powerful Traxxas Link app (available in the Apple App Store or on Wireless Module and the Google Play™) gives you complete control over the operation and tuning...
Page 40 OWNER’S MANUAL MODEL 86086-4 6250 Traxxas Way, McKinney, TX 75070 1-888-TRAXXAS 180420 86086-4-OM-EN-R00...
