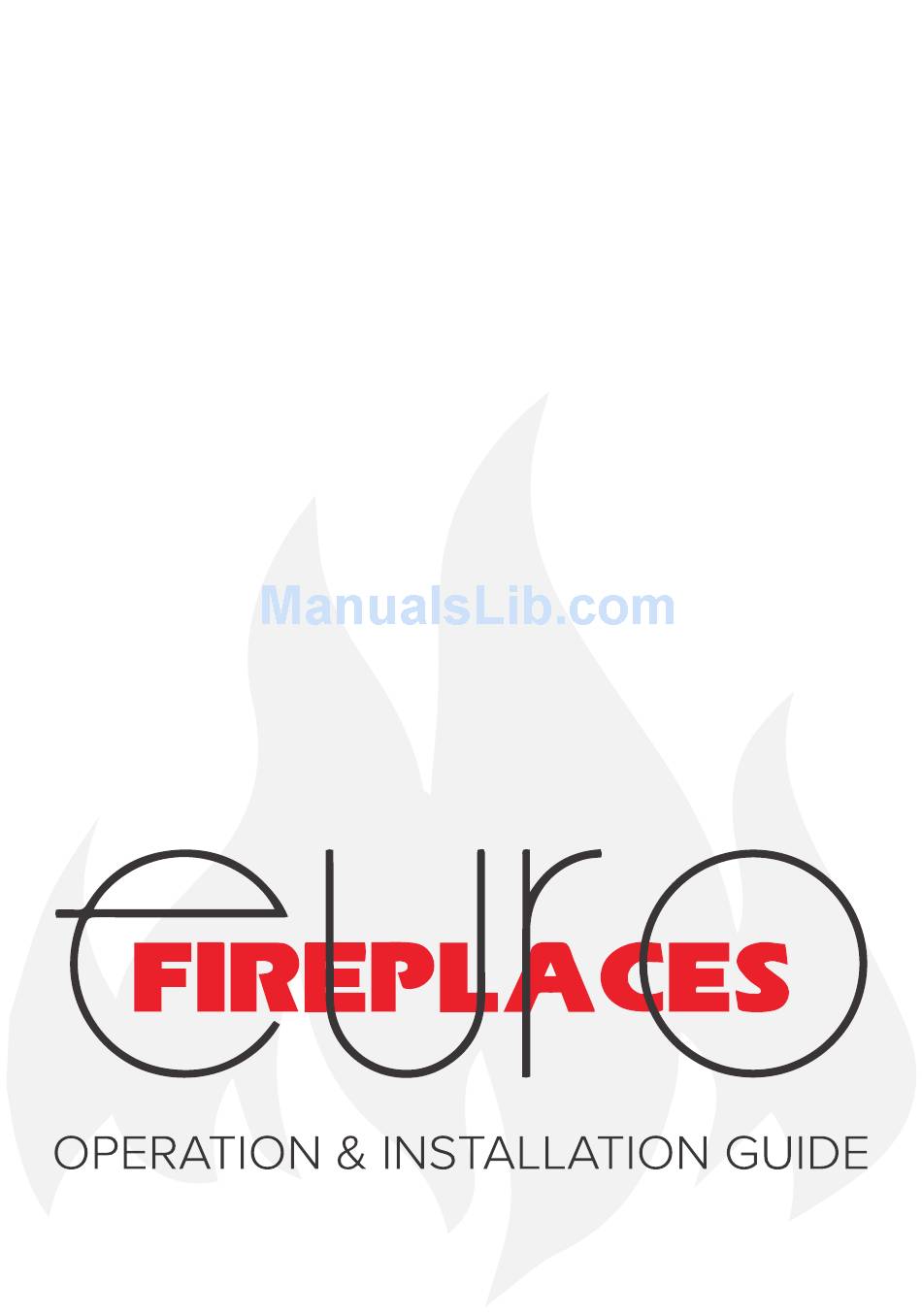

EURO FIREPLACES MILANO Operations & Installation Manual
  1. Manuals
  2. Brands
  3. EURO FIREPLACES Manuals
  4. Indoor Fireplace
  5. MILANO
  6. Operations & installation manual

EURO FIREPLACES MILANO Operations & Installation Manual

Hide thumbs

Advertisement

Table of Contents

See also: Operation & Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MILANO and is the answer not in the manual?

Questions and answers

Related Manuals for EURO FIREPLACES MILANO

Summary of Contents for EURO FIREPLACES MILANO

  • Page 2 2. The heater has been installed by a licensed installer. 3. A certificate of compliance has been issued. (Only required in some states.) 4. The extended warranty card has been submitted to Euro fireplaces within 2 weeks of the installation.
  • Page 3 To get the most efficiency out of your heater, there is no need to use more than 3kgs of firewood per load for a Falun or Andorra heater, or 6kgs per load for larger Designer Inbuilt units. The size of the wood used is important; pieces sized approximately 300mm in length and 150 in diameter will give you the best heat.

  • Page 4: Things To Consider

    THINGS TO CONSIDER • Euro Fireplaces have a compact firebox with a large viewing window. The heaters are built for high wood burning efficiency (around 70 to 80%). A much smaller amount of firewood is needed compared to traditional Australian wood heaters with similar heat output.

  • Page 5: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS Like all fireplaces your unit will get hot when in use, particularly the glass. Please be aware of this and ensure that children are always supervised around the fireplace. A fireplace surround is a good idea when there are children present. The heater must stand on a hearth with adequate bearing capacity.

  • Page 6: Air Control

    LIGHTING YOUR FIREPLACE AIR CONTROL The air control of a Euro Fireplace consists of primary (beneath the fire) and secondary (above the fire) air. The fire will require all air controls at 100% to start but once you enter the main burning phase only secondary should be used. On a single control handle heater, closing 50% will close primary and leave secondary open.
  • Page 7 COMBUSTION PHASE • Place two similarly sized logs (approx.30cm long, 12cm thick) on to the bed of hot coals. • Keep the air regulator at 50% open. Secondary air only. • Using properly dried firewood, and following the above steps, the logs will ignite within 60 seconds.

  • Page 8: Fresh Air Intake

    GENERAL INFORMATION FRESH AIR INTAKE Euro Fireplaces models rely on surrounding air to achieve a high standard of combustion. As such, an adequate intake of oxygen is essential. In an energy efficient houses (eg. tight windows and doors), air intake may be low and this may reduce draw.

  • Page 9: Recommended Fuel

    CONVECTION Euro Fireplaces heat your home in two ways; with radiant heat as well as natural convection. Natural convection means the heater will suck the cold air from around your house and naturally convert it into warm air. It is important that the heater is not allowed to draw cold air from outside or from rooms you do not want to heat.

  • Page 10: Cleaning And Maintenance

    In most of our heaters the baffle plate can be removed to clean that area out. Any heater in the Andorra range does not have a removable baffle plate; these heaters can be cleaned from a access panel at the back of the heater.

  • Page 11: Important Operation Notes

    IMPORTANT OPERATION NOTES Do not use flammable liquids, painted, treated or processed wood such as particleboards etc. These materials can cause excessive damage to the fireplace and flue. Use only dry wood with no more than 20% moisture content. Anything above this moisture content can cause gases that can be corrosive to metal and cause damage to the fireplace and flue.

  • Page 12: Installation

    • If the fresh air intake is to be be connected, attach the fresh air intake collar to the fresh air intake outlet. • If a standard 6” flue is used, an adaptor available from Euro Fireplaces must be used. • The first section of the stainless steel flue must go into the spigot, not over it.
  • Page 13 • Disregard the German installation manual as an Australian manual is supplied with the heater. • Attach the Euro Fireplaces compliance sticker on the low back of the heater. • Attach the ‘Burn Hardwood Only’ sticker to the ash tray.
  • Page 14 • Install heat bank once the heater is in the right position. • If a standard 6” flue is used an adaptor available from Euro Fireplaces must be used. • The first section of the stainless steel flue must go into the spigot (not over it).
  • Page 15 • Install the soapstone once the heater is in the right position. • If a standard 6” flue is used an adaptor available from Euro Fireplaces must be used. • The first section of the stainless steel flue must go into the spigot (not over it).
  • Page 16 HEATBANK INSTALLATION FALUN 1. Remove 3x (each side) screws fromt he back plate of the heater and carefully slide the sides open 2. Insert the heat bank ontio the exisiting brackets (pointy edge facing toward the back of the heater) 3.
  • Page 17 ANDORRA & ANDORRA EXCLUSIVE 1. Remove the doors of the heater. (The door can be removed by carefully pulling up the pins.) 2. Unscrew the steel back plate of the heater and the screws in the front of the heater that hold the side walls on 3.
  • Page 18 FLUE MAINTENANCE AND INSTALLATION Your flue should be professionally cleaned once a year. ANDORRA, ANDORRA EXCLUSIVE, ATIKA, CADIZ, SEVILLA, DELIA • Take of the back galvanized plate • Near the top of the heater you find a 170 mm x 100 mm steel plate attached with 4 bolts •...
  • Page 19 Flue Cowl The height of the flue MUST clear the apex of the house Active - Stainless Inner Flue - Galvanised 600mm clearence from roof to cowl Outer Flue - Galvanised The outer flue crimps upwards. Roof flashing plate Angle support bracket Triple skin flue for roof ceiling...

  • Page 20: Troubleshooting

    TROUBLESHOOTING NOT ENOUGH HEAT • Firewood is too moist: ( not seasoned enough) firewood needs to be less than 20% in moisture content, ideally under 15%. Australian hardwood will take approximately 18 months to dry, fire wood with a moisture content of above 25% , combined with wood pieces that are too are large will lower the temperatures in the firebox dramatically.
  • Page 21 SMOKINESS INSIDE THE HOUSE • Incorrect draw • Incorrect burning • Leak in the flue • Incorrect installation PAINT SMELL • There may be a paint smell for the first week of operation as the paint on the heater cures: please keep the house well ventilated during that time. This Process may also cause a visible vapor to come from the heater;...
  • Page 22 The product must be subjected to normal use. The Product is designed to burn hardwood only with a maximum loading charge define for each model (refer to the Euro Fireplaces Brochure or website). Over loading the firebox will produce excessive temperatures and could result in damages to all mechanical counter weight door systems, grates or baffles.
  • Page 23 EXTENDED WARRANTY AGREEMENT Euro Fireplace heaters come with a standard 2 year warranty. To extend this to 4 years warranty please complete and send or email to warranty@eurofireplaces.com.au omer Name Cust Heater Heater Production Number Purchased through ( Dealer) Purchase Date Installation Date Installation Certificate of Compliance Warranty conditions...
  • Page 24 Australian Home Heating Association Euro Fireplaces is a proud member of the Australian Home Heating Association, and as such abide by their standards. If further information is required, as well as tips for running your fireplace efficiently, we recommend visiting their...
