Summary of Contents for Kangaroo Hillcrest MAX

Page 1 Remote Motorcaddies for the Serious Golf Athlete Made in USA...
Page 2 Model: Serial#:...
Page 3 However, if you discover something faulty or have questions, don’t hesitate to give me a call. On behalf of the entire Team at Kangaroo Products Company, THANK YOU VERY MUCH!

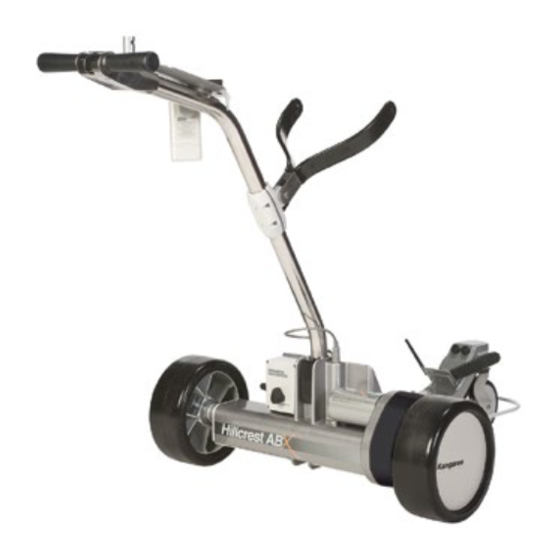

Page 4 Hillcrest ABX Hillcrest MAX...
Page 5: Table Of Contents
Table of Contents Reporting Damage During Shipping ..................5 Contact Information ........................6 Visit Kangaroo ..........................7 Assembly ..........................9 Power Controls & Operation ....................17 Remote Guidance System ....................23 AutoBrake ..........................33 Free-Wheeling Mode ......................35 Rear Wheel Assembly and Removal ..................37 Battery & Charger ........................39 Optional Equipment ......................43...
Page 6 Please call or e-mail Kangaroo (see Contact Information on page 6) with your invoice number and customer number. Specify which product or part is damaged. Do not return the damaged products or parts back to Kangaroo; we will contact the shipping carrier to file a claim. Kangaroo will send replacements. The shipping carrier is responsible for picking up the damaged merchandise, if they choose to, and sending the item back to Kangaroo.
Page 7: Contact Information
Phone: (800) 438-3011 or (828) 436-2101 Fax: fax@kangaroogolf.com E-mail: iwalk@KangarooGolf.com To order parts and accessories visit: www.KangarooGolfCanada.com Kangaroo’s worldwide headquarters is located just one mile from interstate 26, 40 miles southeast of Asheville, North Carolina’ and 30 miles northeast of Spartanburg, South Carolina.
Page 8 To Asheville US Hwy 74 Exit 163 Kangaroo Products Exit 67 111 Kangaroo Drive NC Hwy.108 to Mill Spring Rutherfordton To Tryon Exit 67 Welcome Center To Spartanburg...
Page 9: Visit Kangaroo
Follow Interstate 85 south toward Spartanburg, South Carolina. Take exit 10B (US-74) toward Kings Mountain and Shelby. Follow US-74 approximately 69 miles to exit 163. At exit 163 turn LEFT toward Columbus. Kangaroo will be 1/2 mile on the RIGHT.
Page 11: Assembly
Assembly Components: A- Chassis B- Electronic Front Drive C- Upper Caddie Structure...
Page 12 Figure Figure...
Page 13 Assembling your X-Series Motorcaddie Your Kangaroo X-Series Motorcaddie is shipped without the rear wheels attached. See pages 37 and 38 for rear wheel assembly and removal instructions. 1. Steady the Chassis by using the hand-hold, located in the bottom of the battery tray. Insert the Electronic Front Drive into the hole located in front of the battery tray, and close the draw latch.
Page 14 Figure Figure Figure...
Page 15 5. Connect the plug from the Upper Caddie Structure to the receptacle in the Chassis. (Figure 3) Note: Always handle the plug when connecting or disconnecting the control cable. Pulling on the wire can cause damage. 6. Connect the Electronic Front Drive by inserting the black plug into the receptacle on the lower left of the Remote Receiver.
Page 16 Figure Figure...
Page 17 If the Upper Caddie Structure or Electronic Front Drive is loose, turn the draw latch metal adjustment ring clockwise to tighten. Do not over-tighten the adjustment ring as this may cause the draw latch to break when engaged. If the draw latch will not lock in place, loosen the draw latch by turning the metal adjustment ring counter-clockwise.
Page 18 Figure Figure...
Page 19: Power Controls & Operation
Power Controls and Operation Accelerator Speed is controlled by the Accelerator located between the handle grips. The decal indicates speed in relation to the Accelerator position. (Figure 8) Note: Turning the Accelerator all the way down does not turn off Power Controls, even if your X-Series is not moving. There is a feature, known in technical terms as “ramp up”, that automatically provides a gentle start at any setting up to, and including, full speed.
Page 20 Figure...
Page 21 Normal Operation: 1. Prior to beginning play, rotate the Accelerator to the SET position (Figure 8 on page 17). You can vary the Accelerator to suit your own walking pace after you begin play. 2. Position the Function Switch to ON (Figure 9 on page 17). 3.
Page 22 Figure...
Page 23 6. To stop your X-Series, press STOP on the Remote Transmitter. To achieve maximum braking the Function Switch must be turned OFF. There is no need to change the accelerator when stopping and re-starting. (Figure 11) Reminder: The arrows on the Remote Transmitter indicate steering direction as if you were operating your X-Series manually.
Page 24 Figure Figure Figure...
Page 25: Remote Guidance System
Remote Guidance System Remote Guidance System consists of three components – the Remote Transmitter (Figure 12), Remote Receiver (Figure 13), and Electronic Front Drive (Figure 14). Remote Guidance System operates on an FM Pulse Code Transmittal System that is FCC approved, and requires no operator’s license. Remote Guidance System is relatively low power (milliamps) and is subject to little outside interference.
Page 26 Figure...
Page 27 Centering the Steerable Front Wheel Before you begin play the front wheel must be centered, so your X-Series will track straight. Use the centering knob (Figure 15) on the rear of the Remote Receiver to adjust the front wheel. do not attempt to turn the front wheel by hand.
Page 28 X-Series includes a Bumper Guard to help protect the centering device. Damage caused by hitting obstacles is not covered under the manufacturer’s warranty. All Remote Guidance System units must be returned to Kangaroo for proper repair. There are no user serviceable components inside. Electronics (Remote Receiver and Remote Transmitter) Remote Receiver The Remote Receiver is the main control center of the Remote Guidance System.
Page 29 Remote Transmitter The Remote Transmitter is supplied with a fresh, standard Alkaline 9-volt battery. The battery compartment is located on the bottom rear of the transmitter. The cover slides off for easy battery replacement. Under normal use, the 9-volt battery should last 3 months. Replace the Remote Transmitter battery at least every three months. Keep dry Use great care in operating your X-Series around water.
Page 30 Figure...
Page 31 Confirm Command Indicator 1. When a signal is given, the red Confirm Command light (Figure 15) on the Remote Transmitter will flash twice – once with the pressing of the button, and again when the button is released, confirming your command.
Page 32 Figure Figure Figure...
Page 33 MANUAl. Adjust the Accelerator if necessary. Padded Case for Remote Transmitter Included with your new X-Series is an attractive Padded Case screenprinted with Kangaroo logo (Figure 16). It can be worn two ways: 1. Looped over a belt with the back flap secured by the Velcro ® .
Page 34 Hillcrest ABX...
Page 35: Autobrake
AutoBrake Operation As your X-Series travels downhill with the power switched ON, turn the Accelerator downward to a slower setting. Your X-Series will slow down and give you a feeling of security as you travel down the hill. If the slope is extremely steep, you may turn the Function Switch OFF, which will provide approximately 50% more braking power than just turning the Accelerator to its slowest setting.
Page 36 Figure...
Page 37: Free-Wheeling Mode
Free-Wheeling Mode Free-Wheeling means that the two drive wheels on your X-Series turn freely without engaging the axle or drive train. If you must tow your X-Series either forward or backward, ALWAYS place it in Free-Wheeling Mode first! Gear damage will result from pulling or pushing with great force. Damage from failure to disengage the drive wheels from the gear train is not covered by the warranty.
Page 38 Figure Figure...
Page 39: Rear Wheel Assembly And Removal
Rear Wheel Assembly and Removal Both rear wheels on your X-Series may be easily removed and replaced. Wheels are held in place by a spring-loaded release tab on the inside of each wheel. The tab seats into a groove on the axle. There is a groove for the Drive position and one for Free-Wheeling Mode.
Page 40 Figure Figure Figure...
Page 41: Battery & Charger
Battery & Charger All Kangaroo models require a 12-volt, 31-amp deep cycle battery. The ReadyPro electronic charger is designed to charge 12-volt, deep-cycle, gel-filled battery. It is also designed to remain connected to your battery indefinitely when you are not playing, to maintain the battery in good condition while stored for long periods of time.
Page 42 Explanation of Charger Lights • If light only is illuminated, charger is “on” and battery is charging, but NOT READY for use. (The length of time will depend on battery’s level of discharge – the more it’s discharged, the longer the RED light will stay illuminated.) •...
Page 43 18 holes of sufficient power, your battery has “sulfated” with age and use. Your battery is being recharged to full voltage, but it no longer has sufficient capacity to power your Kangaroo for a round of golf.
Page 45 Mounts easily to your X-Series. The seat provides a perfect spot for a quick break or to wait your turn. The bracket is attached securely to your chassis for outstanding stability. The cushion is molded by Kangaroo of puncture-proof, integral-skinned polyurethane foam (more durable than rubber or vinyl — withstands rain, ozone, and ultraviolet rays).
Page 47 E- Adjustable Umbrella by BirdiePal ® Variable adjustability of the shaft allows you to stand up straight underneath the umbrella when attached to your X-Series, no matter how tall you are. Lightweight and nearly unbreakable due to its flexible fiberglass shaft and frame.
Page 48 Internal view of the precision-made transaxle, with 4 power train gears plus 4 beveled differential gears, enabling easy turning and Automatic Braking.
Page 49: Technical Specifications
Technical Specifications: Motor: High torque, 2-pole armature/permanent magnet, 12-volt DC. Drive Train: Double reduction, sealed maintenance-free self-lubricating gear drive with differential and direct-drive hubs. Controls: All solid-state motor control, 45 amp capacity, all circuitry under overcurrent and reverse polarity protection. Remote Guidance System: Maximum Range of Go/Stop Time-Lapse from Turn Button...
Page 50: Maintenance
Maintenance Don’t Oil it! Your X-Series has been designed and manufactured to be essentially maintenance free. Do not open or attempt to service the transaxle gear train. It is tuned at the factory to minimize gear noise. It also contains a special lubricant, which is sealed inside by a gasket.
Page 51 60 days. If the service is not under warranty, please specify whether you would like Kangaroo to invoice you or charge to your credit card, including all numbers and the expiration date of your card.
Page 52 Warranty at a glance Component Coverage Page Chassis, Wheels, Upper Caddie Structure 12–Months Remote Guidance System (RGS) and Electronic Front drive 12–Months ReadyPro Electronic Battery Charger 12–Months Xtreme Slope Wheel, Gallery Seat, Scorecard Platform, Ball & Club Washer, Mount for Remote Transmitter, 12–Months Swivel Cup Holder, Sand &...
Page 53 Any failure that is the result of a defect in material or workmanship is covered by the warranty. The original owner is entitled to a no-charge repair (or replacement, at Kangaroo’s option) for 12 months from the date of purchase. Components covered by the warranty are the motor, power train, wheels, tubing, and all electronics.
Page 54: Warranty
Any failure that is the result of a defect in material or workmanship is covered by the warranty. The original Owner is entitled to a no-charge repair (or replacement, at Kangaroo’s discretion) for 12 months from the date of purchase. Components covered by the warranty are the motor, power train, wheels, tubing, and all electronics.
Page 56 Warranty expires on the ReadyPro Electronic Battery Charger one year from the date of shipment it to the original purchaser. If the charger is defective, Kangaroo may require its return to our plant prior to replacement. The customer is responsible for UPS shipping charges on all returned items.
Page 57 Damage due to accident, abuse, or misuse and neglect is specifically excluded under this warranty. This warranty supersedes any other warranties, expressed or implied, and is non-transferable. Kangaroo does not authorize any other person or firm to assume for Kangaroo any other liability or obligation in connection with the sale of this battery charger.
Page 58: Troubleshooting
Troubleshooting Symptom Problem Solutions My Remote Guidance System does 1. Circuit board needs to be reset. 1. Turn the Function Switch OFF – not function. All connections are 2. Water or debris could be inside wait 5 seconds. made properly and the Confirm connection plugs.
Page 59 2. Remote Transmitter keypad or circuit replace the 9-volt battery every board needs replacing. three months. 2. Return to Kangaroo for repair. Using the Remote Transmitter, both 1. Loose cable connection between 3. Properly insert plug and set STOP and GO commands function, the Electronic Front Drive and the locking ring.
Page 60 2. The centering sensor in the front Remote Receiver. wheel is inoperative. (See pages 23–24) 2. Return to Kangaroo for repair. My Electronic Front Drive wheel will Steering motor timed-out. 1. Turn the Function Switch OFF not return to center.
Page 61 Symptom Problem Solutions One of the rear wheels will not Bronze bushing in the center of the Gently tap the bushing back down to stay attached. wheel may not be fully seated. ensure it is seated in the hole as far down as it will go.
Page 62 Symptom Problem Solutions My X-Series suddenly stopped Possible broken battery wire. Check the battery wire clips. While during the round. standing behind your X-Series, wiggle them to see if it will power up. If your X-Series powers up, then you have a broken wire somewhere on your battery clips.
Page 63 Technical Service Department at 1-800-438-3011. Important: Kangaroo strongly recommends you contact Technical Service prior to making any repairs. Always replace the Remote Transmitter 9 volt battery every 3 months with a good quality Alkaline 9 volt battery.
Page 64 June 9, 2014 RESPONSIBlE PARTY (IN USA): Kangaroo Products Company AddRESS: 111 Kangaroo Drive, Columbus, NC 28722 TElEPHONE: (828) 436-2101 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
Page 65 INSTRUCTION TO THE USER This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
