Honeywell M9174 series Product Data

Series 90

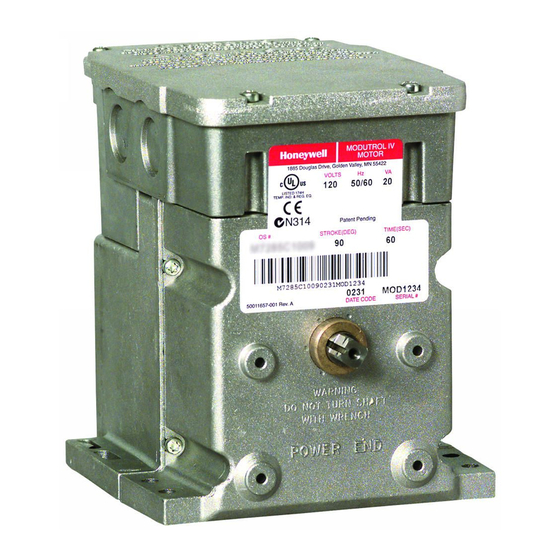

Modutrol IV

APPLICATION

The Series 90 Modutrol IV
non-spring return modulating proportional control motors. Use
these motors with controllers that provide a Series 90 output
to operate dampers or valves.
™
Motors
™
Motors are spring return and

FEATURES

• Replaces M934A,D, M941, M944A,C,D, M945A,D,F,
M954, M965, and M975 motors.
• Integral junction box provides NEMA 3 weather
protection.
• Integral spring return returns motor to normal position
when power is interrupted.
• Motor and circuitry operate from 24 Vac. Models
available with factory installed transformer, or a field
added internal transformer.
• Quick-connect terminals are standard-screw terminal
adapter is available.
• Adapter bracket for matching shaft height of older
motors is available.
• Motors have field adjustable stroke (90° to 160°).
• Die-cast aluminum housing.
• Integral auxiliary switches are available factory
mounted, or can be field added.
• Nominal timing standard of 30 seconds (90° stroke),
and 60 seconds (160° stroke). Other timings available.
• Spring return motors can operate valve linkages form
power end or auxiliary end shafts for normally closed
or normally open valve applications.
• All models have dual shafts (slotted and tapped on
both ends).
• All models have auxiliary switch cams.
• Fixed torque throughout the entire voltage range.
• Motors are designed for either normally open or
normally closed valves and dampers.
• Field addable interface modules can be mounted in the
junction box to upgrade the motor to Series 70
(electronic) control.
Application ........................................................................
Features ...........................................................................
Specifications ...................................................................
Ordering Information ........................................................
Wiring ...............................................................................
Settings and Adjustments ................................................. 10
Operation .......................................................................... 11
Checkout .......................................................................... 13
Replacement .................................................................... 13
PRODUCT DATA
Contents
1
1
2
2
7
63-2631-07
