Telonics TCA-500C 12-1U User Manual

Tca-500c series combo amplifier, mini-combos, head unit, preamplifier and external speakers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Telonics TCA-500C Combos, Mini-
Combos, Head Unit, Preamplifier
and External Speakers
TCA-500C
TCA-500C
MINI-15 EXTERNAL
15-1U COMBO
15-MINI COMBO
SPEAKER ENCLOSURE
TCA-500C
MINI-12 EXTERNAL
TCA-500C
12-1U COMBO
SPEAKER ENCLOSURE
12-MINI COMBO
TLF-PRE500
TCA-500C-1U
LITE-FLIGHT
HEAD UNIT
PREAMPLIFER
SYSTEM
TCA-500C 212
SUPER TWIN COMBO
©2017 Telonics, Inc. All Rights Reserved
PB-009289 Rev E. 2018.02.16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCA-500C 12-1U and is the answer not in the manual?

Questions and answers

Related Manuals for Telonics TCA-500C 12-1U

Summary of Contents for Telonics TCA-500C 12-1U

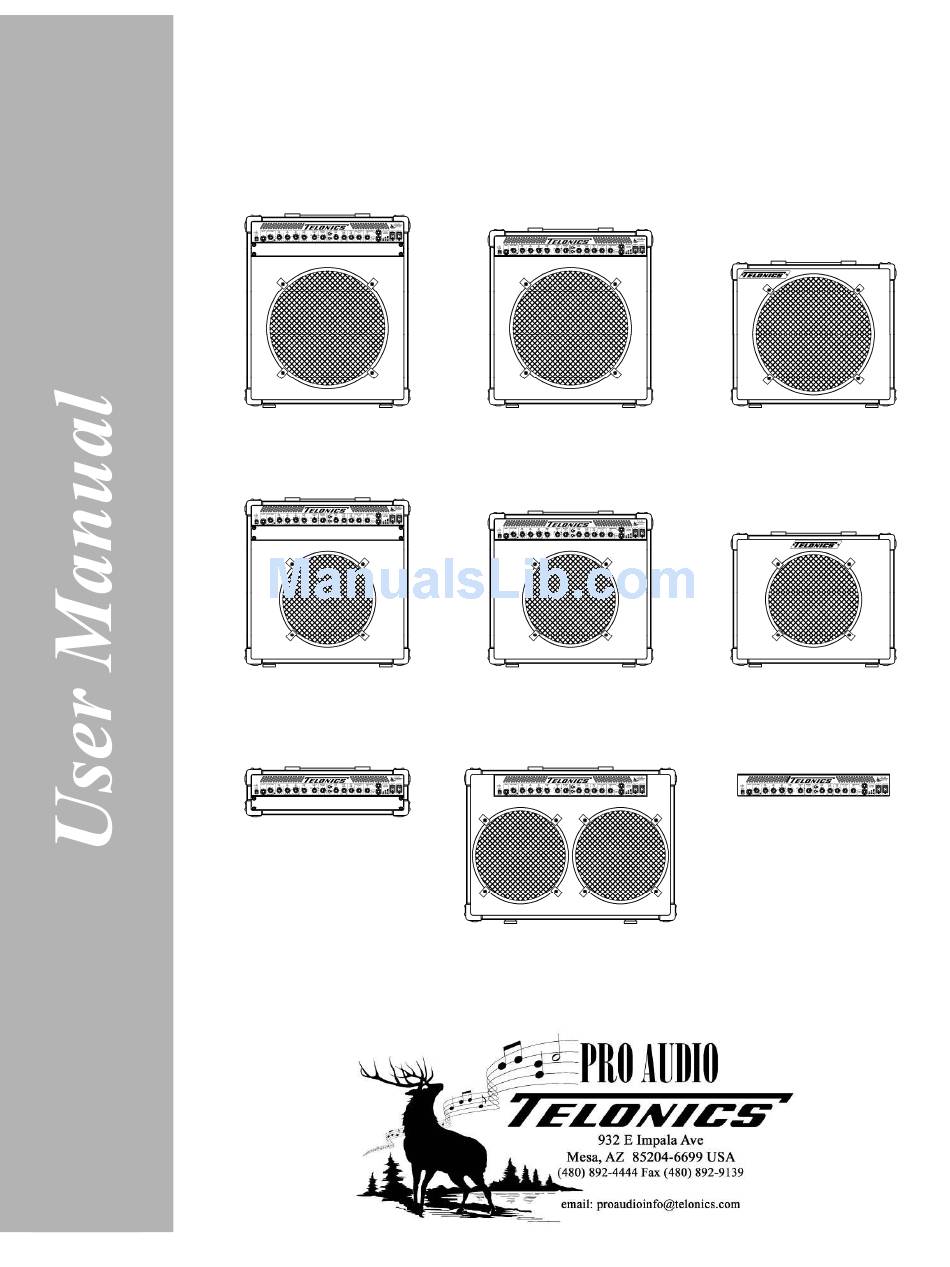

  • Page 1 MINI-15 EXTERNAL 15-1U COMBO 15-MINI COMBO SPEAKER ENCLOSURE TCA-500C MINI-12 EXTERNAL TCA-500C 12-1U COMBO SPEAKER ENCLOSURE 12-MINI COMBO TLF-PRE500 TCA-500C-1U LITE-FLIGHT HEAD UNIT PREAMPLIFER SYSTEM TCA-500C 212 SUPER TWIN COMBO ©2017 Telonics, Inc. All Rights Reserved PB-009289 Rev E. 2018.02.16...
