MixRite 2502 User Manual

Proportional injector

Advertisement

Quick Links

Propo tional Injector
Bomba de dosificación proporcional
Pompe à Dosage Proportionnel
Pompa proporzionale
Manual del Usuario ● Manuel Utilisateur
● User Manuel ● Manuale d'Uso

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2502 and is the answer not in the manual?

Questions and answers

Summary of Contents for MixRite 2502

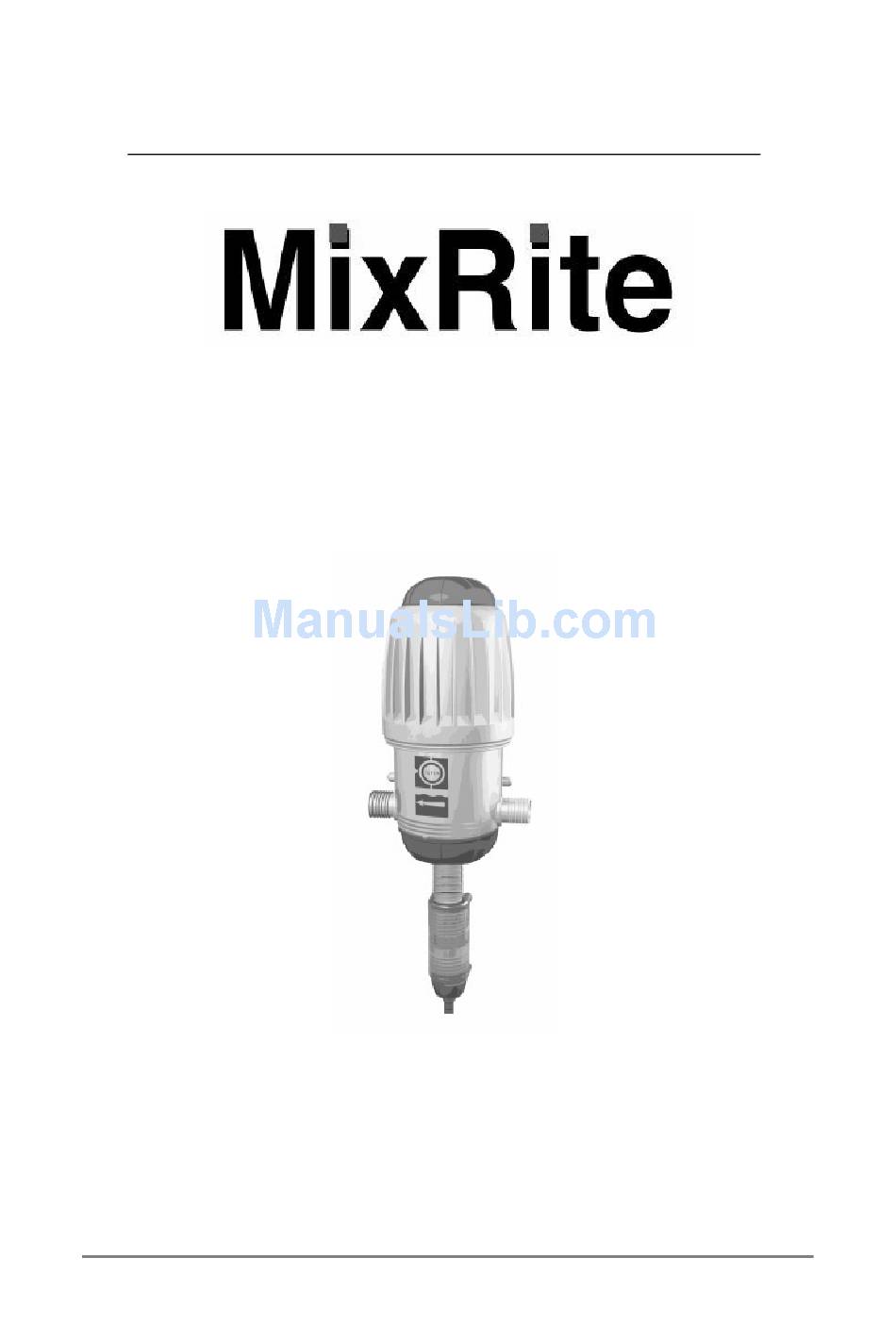

  • Page 1 Propo tional Injector Bomba de dosificación proporcional Pompe à Dosage Proportionnel Pompa proporzionale Manual del Usuario ● Manuel Utilisateur ● User Manuel ● Manuale d’Uso...
  • Page 2: Mixrite

    User Manual The MixRite is powered by water flow, with minimal loss of pressure. The water engine powers the proportioning unit. No external power is required. The proportioning unit injectors liquid additives in direct relation to the amount of water that passes through the motor and injects the additives into the water system.
  • Page 3: Technical Data

    Models with 3%-10%: from 0.5 Bar up to 1.8 Bar in proportion to the water flow The MixRite inlet and outlet are ¾" BSPT male thread. The additive tank should be placed beneath the MixRite. Mounting the MixRite 1.
  • Page 4 Installing the MixRite on a Direct Line (in line) 1. Install onto the water line using swivel connectors and ensure that the water flows into the MixRite in the direction indicated by the arrows printed on the MixRite. 2. Install a 50-75 mesh (250-300 micron) filter between the valve and the injector intake.
  • Page 5 1. Install onto the water line using swivel connectors and ensure that the water flows into the MixRite in the direction indicated by the arrows printed on the MixRite. 2. Install a 50-75 mesh (250-300 micron) filter between the valve and the injector intake.
  • Page 6 Reservior Tank Operating valve Adjusting the MixRite Every stroke of the MixRite moves a predetermined volume of water with a predetermined volume of liquid additive. To adjust the volume of the liquid additive in models 2502, 2504, 2512, 2514, 12502, 12504, 12512, 12514, 2512IN, 2514IN, 12512IN, 12514IN: 1.
  • Page 7 In models: 2500, 2501, 2502, 2504, 2506, 2510, 2512, 2514, 2512IN, 2514IN. After initial operation of the MixRite, apply pressure to the cap (the air release valve) for several seconds to open valve that allows trapped air to escape. This air release is accompanied by a slight loss of water.
  • Page 8 A: The handle must be turned and pushed in so that it is in the close state.(see 1). To Turn the dosage unit on and allow the pumping action MixRite: B: The handle must be turned and pulled out so that it is in the opened state.
  • Page 9: Troubleshooting

    It is strongly recommended to install a back flow preventor before the injector on the main water line. A vacuum release unit should be installed at the outlet of the MixRite in order to prevent undesired suction of additive when the water line is draining.
  • Page 10 On/Off Air release models valve models MixRite 12500 MixRite 2500 MixRite 12501 MixRite 2501 MixRite 125HO MixRite 2502P MixRite 12502 (livestock feed) MixRite 12504 MixRite 2502 MixRite 12506 MixRite 2504 MixRite 2506 MixRite 12510 MixRite 2510 MixRite 2512 MixRite 12512...
