Fossil MISC GEHRY LCD MOVEMENT Manual

LCD Movement

Time Mode

1. Display Hour, Minute with day/night shown by black/white background.
2. The icons "til," "half," "past," "noon" and "midnight" will be used where
appropriate on Gents version.
3. The icons "til," "half" and "past" will be used where appropriate on
Ladies version.
NOTE: The ladies display will read the number 12 at midnight and noon,
whereas the Gents display will read the actual words as shown in the
display layouts above.
4. Press A to go to Calendar Mode.
5. Press and hold B for 2 seconds to enter Setting Mode.
NOTE:
1. Time should say "past" from the 1st minute to 29th minute past the
hour, and the time should read "til" from 29 minutes to 1 minute till the
hour for both Gents and Ladies versions.
2. The display will be negative from 7AM to 6:59PM, and positive from
7:00PM to 6:59AM.

Calendar Mode

1. Month and date will display with day/nights shown by black/white background.
2. Press A to go to Time Mode.
3. Press and hold B for 2 seconds to enter Setting Mode.
NOTE: In Calendar Mode, the background color will change when the real time is:
- 7AM to 6:59PM (negative display)
- 7PM to 6:59AM (positive display)

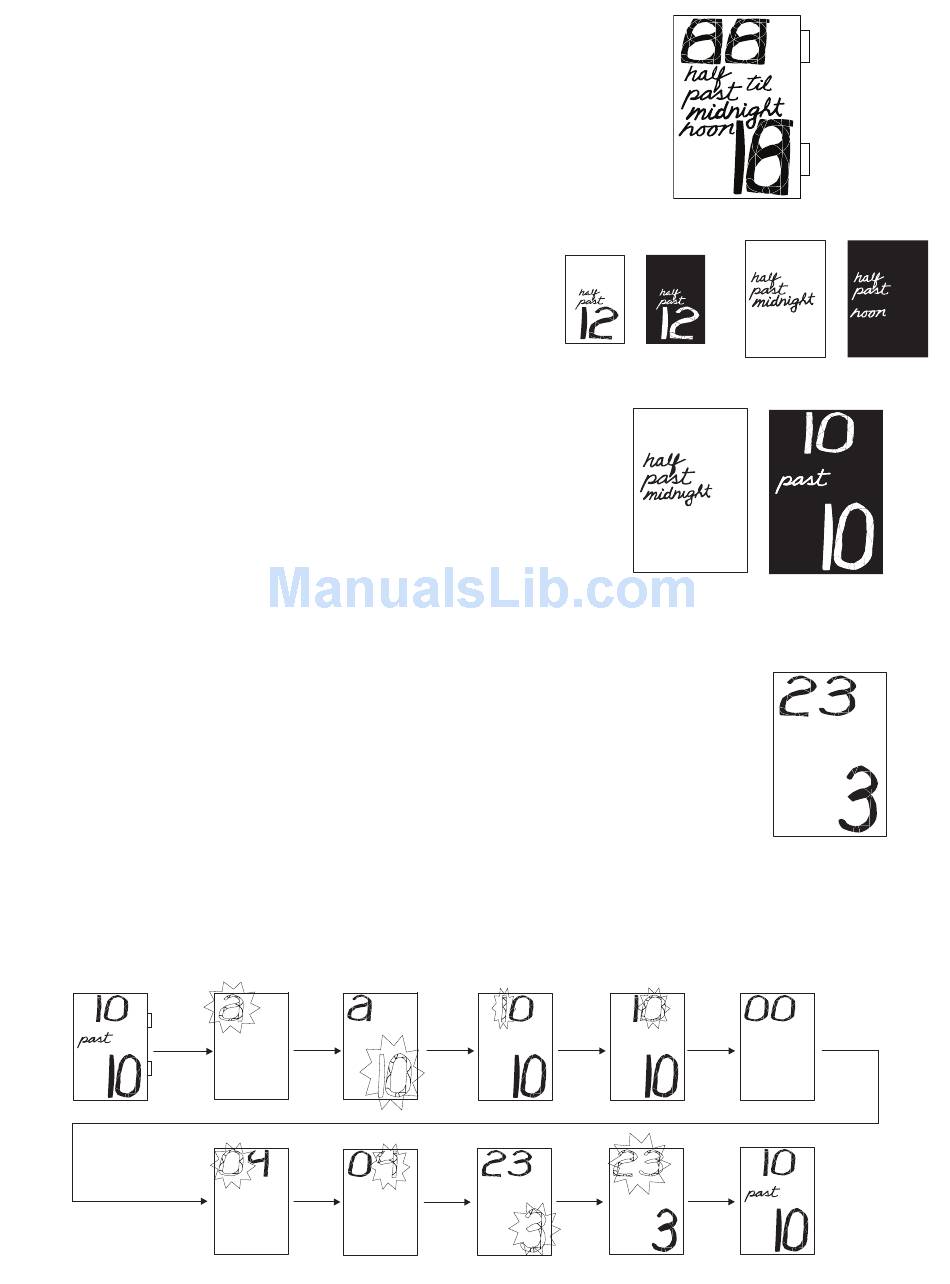

Time/Calendar Setting Mode

Setting time will be shown in digit only, without showing "til," "half," "past," "noon" or "midnight."
1. Press and hold B for 2 seconds to enter Setting Mode.
2. Press A to advance digits.
3. Press B to go to next field.
NOTE: In Set Mode the display will always be positive background.
Press and hold
B for 2 seconds
A
MODE
B
SET
AM/PM
Hour setting
setting
Press B
Press B
Year (ten) setting
Year (unit) setting
Display
12:30AM
12:30AM 12:30PM
Minute (unit) setting
Minute (ten) setting
Press B Press B
Press B Press B
Month setting
12:30PM
Ladies
12:30AM
12:30AM 12:30PM
12:30AM
Second reset to 00
Press B
Press B
Date setting
A
MODE
B
SET
Gents
12:30PM
10:10AM
March 23
Press B
