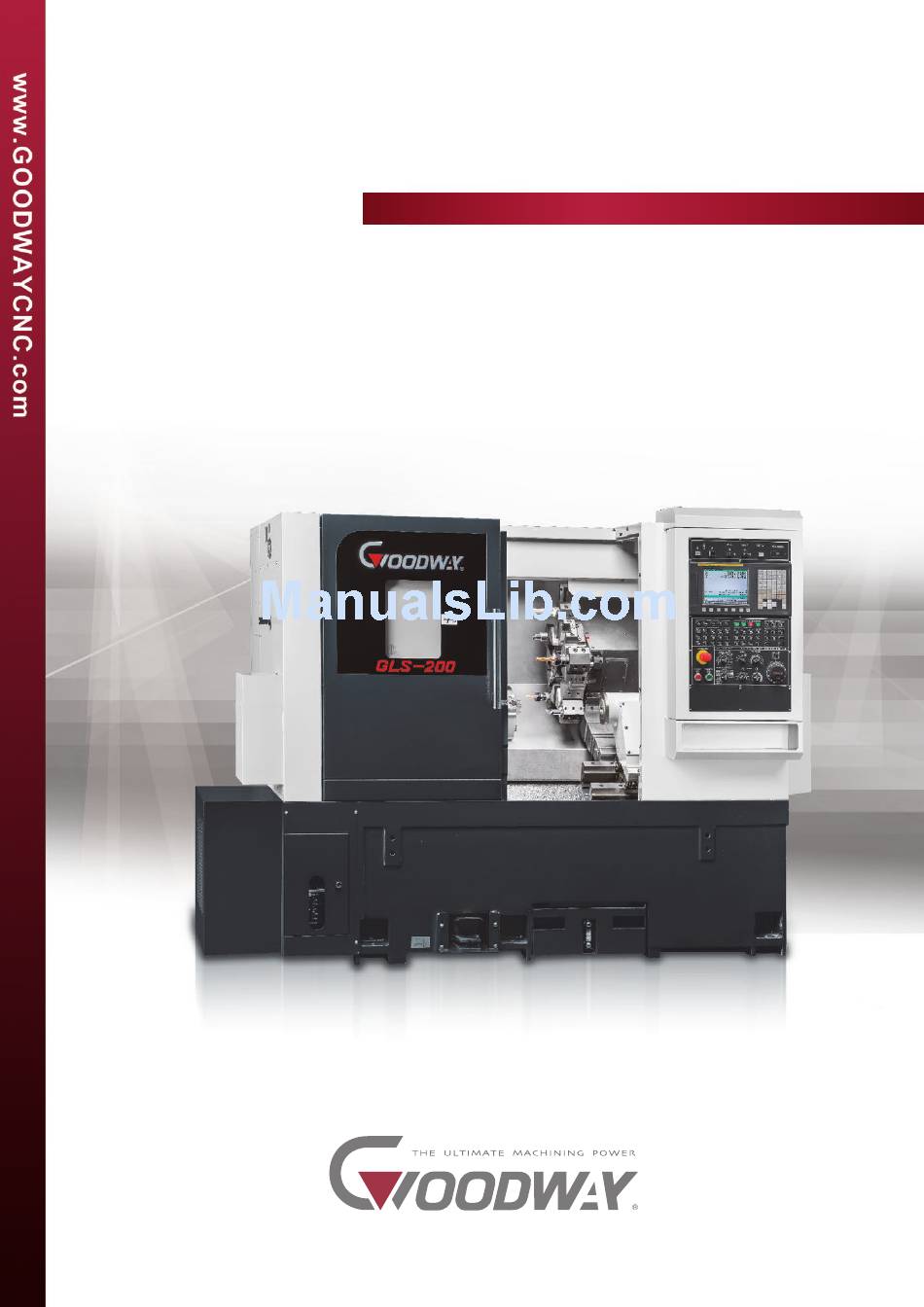

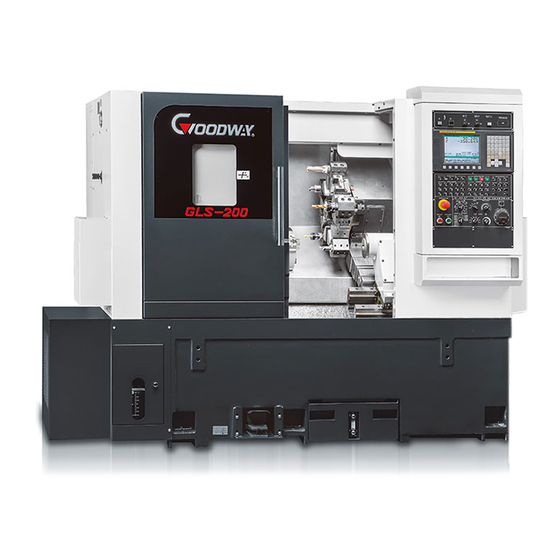

- Page 1 GLS- 150 SERIES High Speed CNC Turning Centers...
- Page 2 Multi-Tasking HIGH SPEED CNC TURNING CENTERS Packed with industry leading technology and top quality components, the Goodway GLS series turning centers combine power, strength, and speed to bring you The Ultimate Machining Power®. These high speed machines will easily accomplish the demanding turning applications of today and tomorrow.
- Page 3 Performance Quailty Features Automation Dimensions Speci cations MAXIMUM STRENGTH CONSTRUCTION Built to withstand years and years of rigorous high production turning, the heavily ribbed, one-piece, thermally balanced bed and casting parts are of “Meehanite” casting. The 30 degrees true slant bed design further provides superior support for the headstock, turret, and tailstock, thus, creating the rigidity needed for long-term high precision turning and e cient chip removal.
- Page 4 RPM to match the spindle’s maximum RPM, which result in full output at the lowest RPM possible. Thus, utilizing the full potential of the spindle motor for maximum cutting power. Spindle & Nose Dimension Drawing Unit: mm Model GLS-150 Ø46 Ø55 Ø56 Ø60 M55xP2.0...
- Page 5 RPM to match the spindle’s maximum RPM, which result in full output at the lowest RPM possible. Thus, utilizing the full potential of the spindle motor for maximum cutting power. Spindle & Nose Dimension Drawing Unit: mm Model GLS-150 Ø52 Ø60 Ø61 Ø67 M60xP2.0...
- Page 6 Performance Quailty Features Automation Dimensions Speci cations GLS-150 Spindle Acc. / Dec times Chuck : 6" + hard jaws 1000 1500 2000 2500 3000 4000 5000 6000 Acc. Dec. Unit : sec. Torque Output Built-in Spindle Output ( N-m )
- Page 7 GLS Series Construction Spindle Turret Multi-Tasking ADVANCED TURRET TECHNOLOGY A high-speed servo motor indexing system provides the 10 or 12-station turret with a 0.2 sec. indexing time. Large diameter high precision curvic couplings and hydraulic clamping are used to enhance tool indexing accuracy and turret disk rigidity.
- Page 8 GLS Series Construction Spindle Turret Multi-Tasking ADVANCED TURRET TECHNOLOGY A high-speed servo motor indexing system provides the 10 or 12-station turret with a 0.2 sec. indexing time. Large diameter high precision curvic couplings and hydraulic clamping are used to enhance tool indexing accuracy and turret disk rigidity.
- Page 9 Features Automation Dimensions Speci cations Work Range Z-axis stroke : 520 MT#4 (108) GLS-150 : 47 6" : 91 6" : 29 GLS-200 : 27 8" : 103 8" : 39 GLS-260 : 31 10" : 113 10" : 43...
- Page 10 This eliminates manpower and cycle time, while reducing accuracy lost, which will occur if the part is moved from one machine to another. The 12-station GOODWAY live tooling turret o ers 6 stations available for live tooling.
- Page 11 Performance Quailty Features Automation Dimensions Speci cations Y-AXIS MACHINING CAPABILITY Y-axis control further enhances multi-tasking live tooling capabilities and improves various machining precision. High precision grooving and X-axis o -center drilling are enabled. X- axis C1 - axis Y- axis With an abundant amount of Y- a x i s t r a v e l , 70 mm=±...
- Page 12 M8 x P1.25 Gear Ratio 22 : 15 Raw Material : S45C Testing Model : GLS-150M GOODWAY Multi-tasking machine can perform the functions below in one setup : Turning Side Drilling & Tapping Face Drilling & Tapping Keyway Milling Contour Milling...
- Page 13 All machines are built with strict factory ISO 9001 Q/C regulations. For top component precision, Goodway utilizes top-end measuring and balancing equipment such as ZEISS 3D measuring system, BL high precision dynamic balancer and many more.
- Page 14 GLS Series Construction Spindle Turret Multi-Tasking FEATURES Chip Conveyor The standard chip conveyor features adjustable timers that allow the operator to set operation intervals according to the amount of chips generated by the machine. Thus, reducing coolant loss to a minimum. Built-in lub.
- Page 15 Above standard & optional features also apply to L models. *1 For M ( live tooling turret ) & Y ( Y-axis ) models only. Auto power o function *2 Please contact Goodway for complete control speci cation list. Custom macro B *3 10.4" LCD option needed.
- Page 16 GLS Series Construction Spindle Turret Multi-Tasking ENHANCED AUTOMATIONS Loading / Unloading Systems Fully automated custom long shaft loading & unloading system mated with GTS-150MMX CNC turning center. ( Loading / Unloading systems with GTS-150MMX Series ) Gantry Loading Systems Available standardized or custom gantry loading / unloading systems provide automatic operation for chucking operations.
- Page 17 Performance Quailty Features Automation Dimensions Speci cations Bar Feeder Model BF-65 BF-80 Bar diameters 6 ~ 80 mm ( 0.23”~3.14” ) 5 ~ 65 mm ( 0.19”~2.55” ) Maximum bar lengths*¹ 1,525 mm ( 60” ) 1,220 mm ( 48” ) Magazine capacity 80 mm ( 3.14”...
- Page 18 2,500 with Chip conveyor 5,260 3,260 Unit : mm Machine Layout 1,000 1,700 1,000 Unit : mm Model GLS-150 / 200 / 260 2,445 1,960 1,495 1,675 2,480 2,288 1,652 2,057 1,053 GLS-150 / 200 / 260 ( Y-axis )
- Page 19 Performance Quailty Features Automation Dimensions Speci cations Foundation 6-Leveling Pad 1,060 1,020 ( FRONT ) Unit : mm Requirements of the Foundation Part No Part name CF-1048 Levelling Bolt NA2200BA Hex.Nut M22 Concrete CF-1047 Levelling Pad A-Particlar Gravel 2,250 Unit : mm Lifting by Forklift APPROX 100 INSERT...
- Page 20 GLS Series Construction Spindle Turret Multi-Tasking MACHINE SPECIFICATIONS CAPACITY GLS-150 GLS-200 GLS-260 Max. swing diameter Ø 500 mm ( 19.68" ) Swing over saddle Ø 380 mm ( 14.96" ) Max. turning diameter* Ø 360 mm ( 14.17" ) / Ø 280 mm ( 11.02" )* [ Ø 250 ( 9.84" )Single turn ]* Ø...
- Page 21 Performance Quailty Features Automation Dimensions Speci cations TURRET GLS-150 GLS-200 GLS-260 Stations 10 / 12 Indexing drive Fanuc AC Servo motor Indexing speed 0.2 sec. Adjacent / 0.5 sec. 180 degrees ( Single step ) Accuracy Positioning : ± 0.00069°, Repeatability: ± 0.00027°...
- Page 22 Website : www.goodwaycnc.com TEL : + 886-4-2463-6000 SALES HOTLINE : + 86-512-8286-8068 E-mail : goodway@goodwaycnc.com FAX : + 886-4-2463-9600 SERVICE HOTLINE : + 86-512-8286-8066 FAX : + 86-512-8286-8620 E-mail : goodway.wj@goodwaycnc.com Copyright 2015 by Goodway Machine Corp. All right reserved G-GLS-150-EN-201502...
