Page 1: User Manual

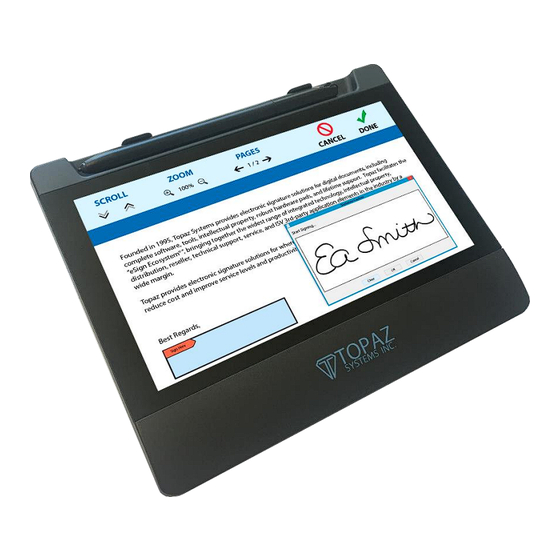

User Manual ® GemView 7 Tablet Display TD-LBK070VA-USB-R Copyright © Topaz Systems Inc. All rights reserved. For Topaz Systems, Inc. trademarks and patents, visit www.topazsystems.com/legal. -
Page 2: Table Of Contents
GemView 7 Tablet Display User Manual Table of Contents Compliant & Copyright Information ..................3 Introduction ..........................6 Packing List ..........................6 Product Overview ........................7 Front and Side View ........7 Interactive Electromagnetic Pen ....7 Rear View ............7 Installation .......................... -
Page 3: Compliant & Copyright Information
GemView 7 Tablet Display User Manual Compliant Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Important Safety Instructions
GemView 7 Tablet Display User Manual Important Safety Instructions DO NOT place objects on top of the device, as objects may scratch the screen. DO NOT expose the device to dirty or dusty environments. DO NOT place the device on an uneven or unstable surface. - Page 5 GemView 7 Tablet Display User Manual Declaration of RoHS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply...
-
Page 6: Introduction
Copyright Information Copyright © Topaz Systems, Inc. All rights reserved. Disclaimer: Topaz Systems, Inc. shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 7: Product Overview
GemView 7 Tablet Display User Manual Product Overview Front and Side View 1. Display and electromagnetic pen touch area 2. Pen holder 3. USB connector 4. Kensington lock slot Rear View 5. Rubber foot pad (x4) 6. Large and small supports (x2), can be extended and retracted 7. -
Page 8: Installation
GemView 7 Tablet Display User Manual Installation Connect Tablet Display to PC Connect the tablet display to the PC using the USB cable, as shown below. Notes: • Connect both USB connectors at one end of the cable to the PC, to ensure a stable power supply. -
Page 9: Connect Pen To Tablet Display
Note: If you are installing the driver for a Citrix VDA machine, you should not perform this step; continue to the section “Install GemView Tablet Display Driver”. Download and run the DisplayLink installer from the Topaz website: www.topazsystems.com/software/download/displaylink.exe. This software provides extended display functionality for the tablet display. - Page 10 GemView 7 Tablet Display User Manual After configuring the tablet display, you may test it as follows: 1. Click the identify button; the number 1 should appear on the main display and the number 2 should appear on the tablet display.
-
Page 11: Install Gemview Tablet Display Driver
GemView Tablet Displays in VMWare Horizon Environments. These guides will provide setup and configuration instructions. Download and run the GemView installer from the Topaz website: www.topazsystems.com/software/download/gemview.exe. Note: You must reboot your PC after the installation completes. This software provides pen input functionality for the tablet display. - Page 12 GemView 7 Tablet Display User Manual 3. Click the Mapping tab to display the screen below. Select the number of the tablet display from the drop down list. The numbering of the monitors follows that in the Windows display settings. Select the orientation of the tablet display. It should be the same orientation selected in the Windows display screen.
-
Page 13: Install Second Tablet Display And Configure For Clone Operation
GemView 7 Tablet Display User Manual Install Second Tablet Display and Configure for Clone Operation You can install a second Topaz GemView Tablet Display configured for clone operation in your system. This is very useful in electronic signing applications where there are two people involved in a signing session –... -
Page 14: Troubleshooting
GemView 7 Tablet Display User Manual Troubleshooting Screen Problems Problems Recommended actions • No picture Check whether USB cables at computer end and screen end are connected properly. • Try using another USB interface on the computer. • Confirm whether the computer is in sleep mode. Press the keyboard or move the mouse, and reboot the system. -
Page 15: Product Specification
GemView 7 Tablet Display User Manual Product Specification Screen Display Model 7 inch TFT LCD, LED backlight Resolution 1024 x 600 200 cd/m 2 (typical) Brightness Angle of Visibility Horizontal 120°, vertical 80° Response Time Tr+Tf: 25ms (typical) Connector USB x1... -
Page 16: Interactive Electromagnetic Pen
GemView 7 Tablet Display User Manual Interactive Electromagnetic Pen Model Technique Electromagnetic Action Area Full screen Technical Specifications Resolution 5080 LPI (lines per inch) Tracking Velocity 200 PPS (dots per second) Pressure Sensing 2048 Levels Accuracy Rating ± 0.5mm (center), ± 1mm (edges and corners)
