AQ1000 / AQ2000
ALTERNATING PRESSURE
BUBBLE PAD AND PUMP SYSTEM
USER MANUAL
Important: Do not operate the Mattress System
without first reading and understanding this manual!
Save this manual for future use.
The latest version of this manual can be found online
at www.grahamfield.com.
AQ1000-INS-LAB-RevD13
Advertisement
Table of Contents
Related Manuals for Lumex AQ2000
Summary of Contents for Lumex AQ2000
- Page 1 AQ1000 / AQ2000 ALTERNATING PRESSURE BUBBLE PAD AND PUMP SYSTEM USER MANUAL Important: Do not operate the Mattress System without first reading and understanding this manual! Save this manual for future use. The latest version of this manual can be found online at www.grahamfield.com.
-
Page 2: Table Of Contents
The most current product information, including the most current revision of this manual, can be found online at www.grahamfield.com. Graham-Field and Lumex are registered trademarks of GF Health Products, Inc. AQ1000-INS-LAB-RevD13... -
Page 3: Introduction
INTRODUCTION Use this manual for setup and operation of the Lumex AQ1000 / AQ2000 Alternating Pressure Pad and Pump System. Read all instructions before using the pad and pump system. Save this manual for future reference. INTENDED USE OF THIS DEVICE... -
Page 4: Danger
DANGER To reduce the risk of electrocution: DANGER: Always unplug this product immediately after using. DANGER: Do not use this product while bathing. DANGER: Do not place or store this product where it can fall or be pulled into a tub or sink. DANGER: Do not place this product in or drop into water or other liquid. DANGER: Do not reach for a product that has fallen into water. Unplug it immediately. WARNING To reduce the risk of burns, electrocution, fire, or personal injury: WARNING: Do not leave this product unattended when plugged in. WARNING: Always use close supervision when this product is used by, on, or near children or those who require close supervision. WARNING: Use this product only as intended and described in this manual. Do not use attachments or accessories not recommended by GF Health Products, Inc.. AQ1000-INS-LAB-RevD13... -
Page 5: Notice
W ARNING: Never operate this product if a) it has a damaged cord or plug. b) it is not working properly. c) it has been dropped or damaged. d) it has been dropped into water. Return the product to your Graham-Field authorized distributor. W ARNING: Keep the cord away from heated surfaces. W ARNING: Never block the air openings of this product or place it on a soft surface, such as a bed or couch, where the openings may be blocked. Keep the air opening free of lint, hair, and other similar particles. W ARNING: Never drop or insert any object into any opening or hose. W ARNING: Connect this product only to a properly grounded power outlet. W ARNING: Maximum patient weight capacity for this product is 275 lb (125 kg), EVENLY DISTRIBUTED. W ARNING: Notice for California Customers- California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer and reproductive or developmental harm. NOTICE s NOTICE: The pump can be used only with the accompanying bubble pad. Do not use it for any other purpose. AQ1000-INS-LAB-RevD13... -
Page 6: Equipment Symbols
Graham-Field authorized distributor. The system has been tested and successfully approved with the following standards: U.S. UL 1431 Europe EN 60601-1, EN 60601-1-2, EN 55011 Class B, EN 61000-3-2, EN 61000-3-3, IEC 801-2, IEC 801-3, IEC 801-4, IEC 801-5 AQ1000-INS-LAB-RevD13... -
Page 7: Product Description

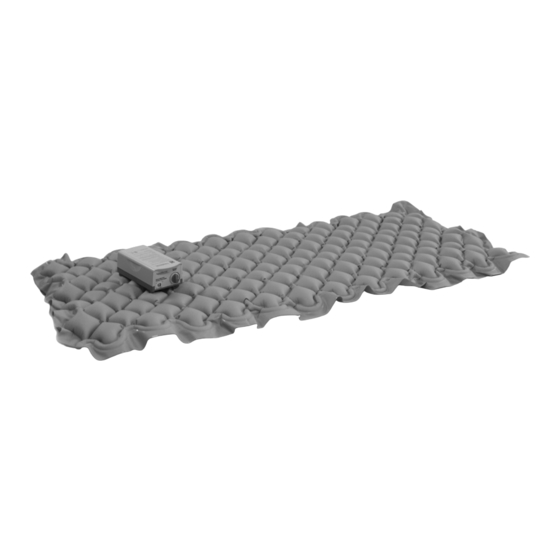

PRODUCT DESCRIPTION BUBBLE PAD AND PUMP SYSTEM air tubes bubble pad pump bubble pad and pump system PUMP front panel air tube connectors wire hangers fuses (220V only) pump (AQ2000 shown) AQ1000-INS-LAB-RevD13... -
Page 8: Front Panel
FRONT PANEL AQ1000 ON/OFF switch air tube connectors AQ1000 pump front panel AQ2000 ON/OFF switch pressure control dial AQ2000 pump front panel Front panel pressure control dial (AQ2000 only): The pressure control dial controls the air pressure output. To increase pressure, turn the dial clockwise. To decrease pressure, turn the dial counter-clockwise. -
Page 9: Installation
4. Use the hangers to hang the pump on the bed's foot end, as shown above; adjust the hangers to place the pump in the most upright position (or place the pump on a flat surface easily accessible to the caregiver and/or doctor). s NOTICE: Place the device in a position where the caregiver and/or doctor can access it easily. AQ1000-INS-LAB-RevD13... - Page 10 NOTICE: Ensure that the air tubes are not kinked or tucked under the bubble pad or mattress. WARNING: Locate all cords so that they will not be stepped on, tripped over, or otherwise subjected to damage or stress. WARNING: Do not use a household extension cord if the electrical cord does not reach the power outlet. Use of an improper extension cord could result in fire and electric shock. If an extension cord must be used, use a three conductor cord with ground, properly wired, in good electrical condition, and keep it as short as possible. WARNING: This device—which MUST be grounded—is equipped with a cord that has a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING: Ensure that the local power voltage is appropriate for the pump unit. 7. Plug the power cord into a properly grounded electrical outlet. AQ1000-INS-LAB-RevD13...
-
Page 11: Operation
Pull the power plug from the wall connector to disconnect the device quickly. CPR FUNCTION If CPR must be performed on the patient while the bubble pad is in use, to immediately deflate the bubble pad, pull the air tubes off the bubble pad or pump connectors. AQ1000-INS-LAB-RevD13... -
Page 12: Maintenance
2. Check bubble pad for signs of wear or damage. Ensure air tubes are firmly secured to bubble pad and pump connectors. 3. Check the air tubes for kinks or breaks. For replacement, please contact your Graham-Field authorized distributor. AQ1000-INS-LAB-RevD13... -
Page 13: Fuse Replacement (220V System Only)
3. Insert a new fuse of the correct rating (T1A/250V). 4. Replace the fuse holder cover. Ensure that fuse holder cover is securely installed. STORAGE 1. Fold the bubble pad loosely. 2. Store bubble pad and pump in a dust-free environment with no exposure to direct sunlight. AQ1000-INS-LAB-RevD13... -
Page 14: Specifications
SPECIFICATIONS Model AQ1000 (Standard) AQ2000 (Deluxe) Power Supply 120V: 120V AC, 60 Hz, 1A 220V: 230VAC, 50 Hz, 7W Fuse Rating 120V: N/A 220V: T1A, 250V Pressure 1.9 psi (13.10 kPa) 1.0 - 2.0 psi (6.89-13.79 kPa) Air Output 120V: 4.5 LPM 120V: 4-5 LPM 220V: 5.0 LPM... -
Page 15: Warranty
WARRANTY GF Health Products, Inc. warrants the Lumex AQ1000 / AQ2000 Alternating Pressure Pad and Pump System for defects in workmanship and materials for the terms listed below. Pump: one year Pad: 90 days If a product is deemed to be under warranty, GF Health Products, Inc. - Page 16 GF Health Products, Inc. 2935 Northeast Parkway Atlanta, Georgia 30360 tel: 770-368-4700 fax: 770-368-2386 www.grahamfield.com © 2008 GF Health Products, Inc.
