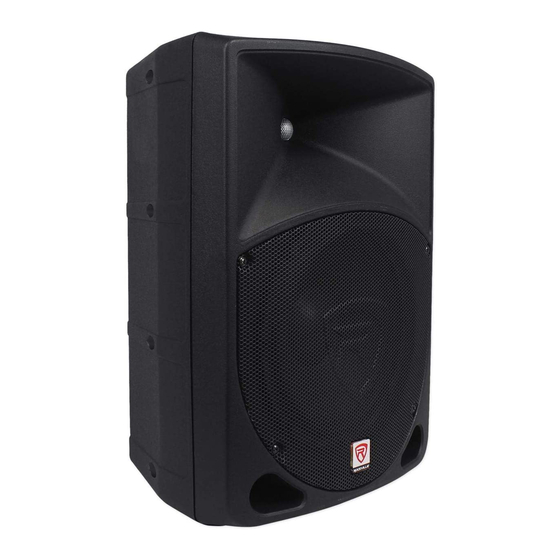

Rockville RPG10 Owner's Manual

Power gig series
Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RPG10 and is the answer not in the manual?

Questions and answers

Related Manuals for Rockville RPG10

Summary of Contents for Rockville RPG10

  • Page 1 OWNER’S MANUAL...

  • Page 2: Important Safety Instructions

    Thank you for purchasing this Rockville Power Gig series pro audio speaker. We are very proud to bring you what we consider to be the absolute best value in pro audio speakers. This is the result of a year of research and development. We tested samples of 5 top selling powered speakers and the Power Gig series out-performed them all.
  • Page 3 Features /Specifications RPG8 • 100 Watt RMS/200 Watts Program Power/400 Watts Peak • High power long-throw 8˝ woofer with 2˝ aluminum voice coil provides incredibly deep bass and acoustic power. • Frequency Response: 50Hz – 20KHz • Maximum SPL @1w/1m: 119dB peak/116dB continuous RPG10 •...
  • Page 4 • High-power 2-way pro sound reinforcement speaker system for live sound and playback applications • Compact and light weight system delivers distortion free sound even at extreme SPL • Linear Class AB amplifier technology: high power, transparent sonic performance • Internal switch-mode power supply for low distortion audio with superior transient response •...
  • Page 5 It is therefore recommended that when setting up your system you set up your speak- ers on speaker stands, such as the Rockville model RVSS-2 (not included) so that the tweeter sounds will radiate above the listening crowd. This will guarantee optimum sound dispersion and achieve clear vocal sound reproduction.
  • Page 6 1. Choose a microphone with high directivity, i.e. cardioid or hyper-cardioid polar pattern. 2. Never point the microphone directly down in front of the speaker. Holding the micro phone in normal position will allow you to be closer to the stage monitor with out feed back.
  • Page 7 3. Keep Master Volume at 0 position. 4. Turn Mic Volume to 0 position. 5. Switch on the RPG unit. 6. Slowly turn microphone volume clockwise until you achieve appropriate gain setting. This is determined by the CLIP LED indicator light. Proper function is achieved when the CLIP indicator lights up at peak levels, it should never be in constant on position.
  • Page 8 The output marked Line Out allows for daisy chaining of signals from one RPG unit to an- other. Simply attach an XLR to XLR or ¼˝ TRS to XLR (RPG8) cable between the two units to share signals. The input into RPG #2 should go to the Line In port. Additionally you can use this output to connect a subwoofer.
  • Page 9 POWER LEFT UNIT RIGHT UNIT POWER LINE IN LINE IN CLIP POWER...
  • Page 10 Line Input Feature You can use the Line Input function when you wish to hook up an additional stereo signal source without the use of a mixer console. Mixers, CD players, DVD music players, MP3 players, etc can be plugged directly in to the XLR/RCA jacks labeled LINE IN. 1.
  • Page 11 Balanced use with XLR connectors The audio inputs and outputs of the RPG unit are fully balanced. To maximize interference compensation we recommend establishing balanced connections to other equipment whenever possible. input output 1 = ground / shield 2 = hot (+ve) 3 = cold (-ve) For unbalanced use, pin 1 and pin 3 have to be bridged Front Side Peak Level Limiter...
  • Page 13 3. RCA and XLR line input gain control 4. RCA and XLR line input 5. Master volume control 6. Treble control 7. Balanced XLR and TRS line output (RPG8 has TRS line output only) ¼˝ ¼˝ 8. Bass control 9. Amplifier clip limit LED indicator and Power LED indicator 10.

  • Page 14: Troubleshooting

    Troubleshooting PROBLEM SOLUTION 1. Make sure the unit is plugged in and the power switch is in the No power ON position. 2. Check that the power cable is plugged in tightly to the unit. 3. Check and replace the fuse if necessary. See fuse replacement diagram below.
  • Page 15 FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION Responsible party name: Rockville Address: 600 Bayview Ave. Entrance A Inwood, NY 11096 Hereby declares that the product(s) RPG series pro audio speakers comply with FCC rules as mentioned in the following paragraph: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 16 RockvilleAudio.com © 2017 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
