olympia electronics BS-636 User Manual

4 and 6 zone fire detection panels
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

4 and 6 zone Fire Detection Panels
Thank you for purchasing this product of Olympia Electronics. A European manufacturer.
GENERAL
The family of fire detection panels consist of 2 types( 4 and 6 zone) with identical operation and indications. The panels have
2 independent siren outputs, Alarm relay, Programmable output for telephone operators and a relay per zone . The required
battery for the panels is the type Α-986 (12V/7Ah). All functions and indications are according to European Norms ΕΝ 54-2
and EN 54-4.
Battery compartment
Α-986
Page 1 from 9
BS-634, BS-636
Extra earth
Mounting hole
terminals

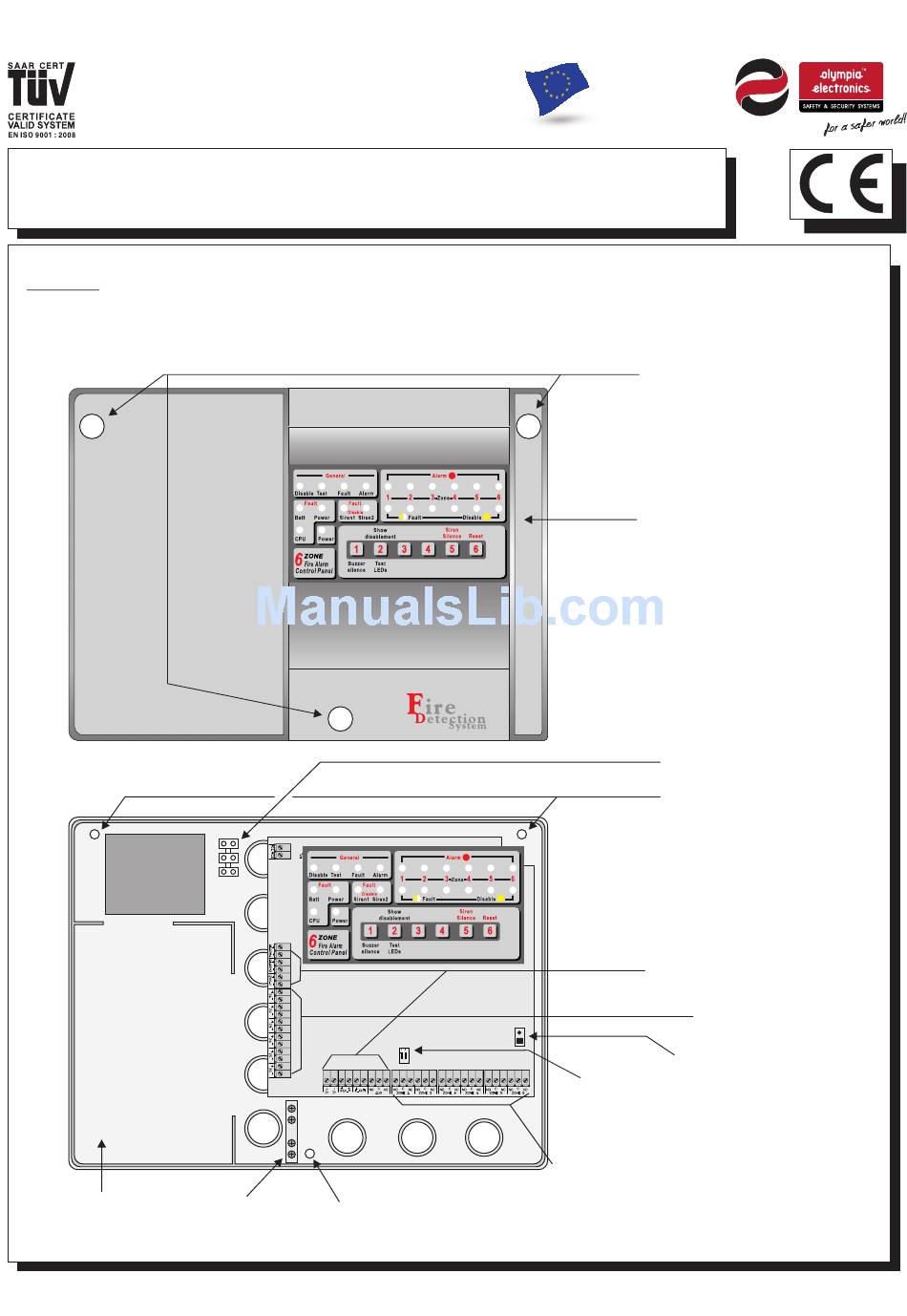

Figure 1. Schematic diagram of the panel
High Quality European based Manufacturers
MODE selection
microswitch
Relay per zone
connection terminals
Top cover
retaining screws
Control Keyboard and
indication leds
Mains voltage connection
terminal block (220-240V AC)
Mounting holes
General output connection (Sirens,
relay alarm,24V)
Zone connection terminal
Operation adjustment
of zone relay
921636000_09_023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS-636 and is the answer not in the manual?

Questions and answers

Related Manuals for olympia electronics BS-636

Summary of Contents for olympia electronics BS-636

  • Page 1 BS-634, BS-636 4 and 6 zone Fire Detection Panels Thank you for purchasing this product of Olympia Electronics. A European manufacturer. GENERAL The family of fire detection panels consist of 2 types( 4 and 6 zone) with identical operation and indications. The panels have 2 independent siren outputs, Alarm relay, Programmable output for telephone operators and a relay per zone .

  • Page 2: Access Level

    Indication LED description The schematic shows the control keyboard and the indication plate of a 6 zone BS-636 panel. Starting from the top left side we can see 4 indicators marked 'General'. The 'Disable' LED lights in every DISABLE condition. The 'Test' LED lights in every TEST condition .The panel does not has test condition as specified in 11 of EN 54-2.
  • Page 3 corresponding 'Alarm' LED lights to indicate this. Using the keys 1, 2, 3, 4, 5 and 6 we can enable or disable the respective zones. The disabled zones light the corresponding LED. The panel exits this mode if no key is pressed for more than 30 seconds.
  • Page 4 Connections The two panels in the family have the same connections. The main differences in these panels is the number of zone available and the number of zone relays. The common outputs, the maximum consumption and the operation procedures are identical for all the panels. Connecting detectors and break-glass call points to zones.
  • Page 5 OFF position). This output is an open-collector output suitable for controlling the BS-489 telephone operator. OUTPUT +A,-A. This output is used only for production proposes. This must not be used by any other technician only technician from olympia electronics. BS-510/24 BS-510/24...

  • Page 6: Installation

    Figure 8 . Battery connection The battery compartment has the appropriate dimensions for Α-986 battery of olympia electronics. The charging unit on PCB is also calculated for the specific battery. Replace the battery only with one of the same type.

  • Page 7: Battery Disposal

    1 cm 220-240V AC Fuse: T250mAL250V (5x20) Figure 9. Panels connection with 220-240V AC Figure 8. Panels connection with 220-240V AC. Battery disposal . I s not allowed to discard batteries in to common trash bins, they must be discarded only in battery recycling points.
  • Page 8 Certification The 6 zone fire detection panel BS-636 is certified from VdS. Also VdS controls the production under CPD number: BS-636 6 zone fire detection panel 0786 0786-CPD-21016 EN-54-2: 1997/AC:1999, EN-54-4: 1997/AC:1999 Provided options: Output to fire alarm device(s) KOLINDROS PIERIAS GREECE Page 8 from 9 921636000_09_023...

  • Page 9: Technical Specifications

    Technical Specifications BS-634 BS-636 4 zone fire 6 zone fire detection panel detection panel Mains power supply 220-240VAC 50/60Hz Consumption 25VA 48VA Battery type One 12V Lead acid sealed 7Ah maximum Charging circuit Stabilized power supply 13.8V / max. 400mA...
