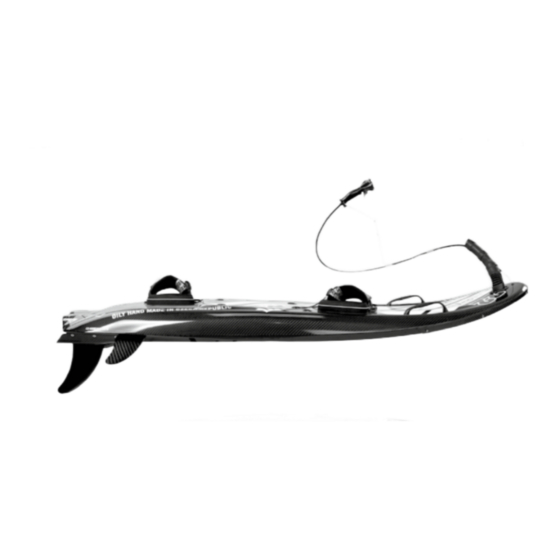

- Page 1 USER MANUAL v e r s i o n 1 6 - R 0 0 4 / E N J E T S U R F U L T R A S P O R T J E T S U R F G P J E T S U R F R A C E J E T S U R F R A C E T I T A N I U M...
-
Page 2: Declaration Of Conformity
C Z - M S R Craft Identification Number (CIN): Module used for construction assessment: B+C Brand name of the craft: JetSurf™ Model: ULTRA SPORT / FACTORY GP / RACE / RACE TITANIUM Type of craft: motorized surfboard Maximum Design Category: Type of hull: monohull... -
Page 3: User Manual
JetSurf™ motorized power boards were designed and manufactured by MotosurfWC and Formula 1 en- conditions. gineers to push the limits of motor sports. The power boards created by JetSurf™ are the only motorized water vehicles with the ability to be transported by hand, car, boat or plane (as hand luggage on interna- This user manual does not include detailed maintenance or repair instructions. -
Page 4: Table Of Contents
APPLYING LUBRICANT IN MODEL ULTRA SPORT . . . . . . . . . . . . . . . 22 THE FREEWHEEL . . . . . . . . . . . . . . . . . . . . 73 MODEL RACE . -
Page 5: Identification Plates And Warnings
F I G U R E 5 – stickers MSR 0416/D1-EN and MSR 0316/D2-EN WARNINGS Before using this vehicle, read the following plates. If you have any questions, consult a sales repre- sentative of JetSurf™. F I G U R E 1 F I G U R E 2... -
Page 6: Safety Matters
It is critical for all owners and operators to be prepared to maintain and operate the power board in a responsible and common sense manner at all times. All riders must use helmet, life vest and a safety leash at all times while operating JetSurf™ to prevent These precaution icons will appear throughout the Owner’s Manual. -
Page 7: Carbon Monoxide
This could result in damage to the engine that would not be covered under warranty. Use only JetSurf™-approved replacement parts. Using any other parts will void the warranty and may adversely affect the operation and safety of the power board. -
Page 8: Law Enforcement
SPEEDING/NOISE helmets. The use of an arm or leg leash is compulsory and must be used at all times while using JetSurf™. Some areas have restrictions regarding speed related to creating waves and maximal noise restric- tions. Operators of power boards are required to adhere to these requirements. -
Page 9: Reporting Accidents And Insurance
Even when others operate the power board, the owner is generally responsible for damages or cease operation and perform a typical maintenance operation to clean the system. injuries that may occur. Owners must not allow any Third Party to operate the JetSurf™ without prior - Maintain a speed and operational method that ensures instruction in correct use and operational risks. -
Page 10: Safe Operation On The Water
JetSurf™ power board will be operated. For operators in the United States, refer to the website*: www.uscg.boating.org Under normal operation situations, stationary fishing and sailing boats (stationary or moving) are given the right of way. -
Page 11: Specification
Category* Passenger capacity: One operator Max Rider weight (kg): JetSurf™ cannot anticipate every circumstance that can occur in operating the power Manufacturer: MSR Engines s.r.o. board. The information provided is general in nature and may not apply to the location in which you will be operating the power board. -
Page 12: Model Factory Gp
SPECIFICATIONS SPECIFICATIONS MODEL FACTORY GP MODEL FACTORY GP MODEL ULTRA SPORT Dimensions: 1800mm/70.87 inches Width: 600mm/23.62 inches Height: 150mm/5.91 inches Weight: 19,5 kilograms/43 pounds Maximum Load: 100 kilograms/220 pounds Fuel Capacity: 2.8 liters/0.74 gallons Power: 7,6 kW MODEL ULTRA SPORT Dimensions: 1800mm/70.87 inches... -
Page 13: Model Race
SPECIFICATIONS SPECIFICATIONS MODEL RACE MODEL RACE MODEL RACE TITANIUM Dimensions: 1800mm/70.87 inches Width: 600mm/23.62 inches Height: 150mm/5.91 inches Weight: 18,5 kilograms/40.8 pounds Maximum Load: 100 kilograms/220 pounds Fuel Capacity: 2.8 liters/0.74 gallons Power: 7,6 kW MODEL RACE TITANIUM Dimensions: 1800mm/70.87 inches Width: 600mm/23.62 inches Height:... -
Page 14: Description Of Parts
DESCRIPTION OF PARTS DESCRIPTION OF PARTS DESCRIPTION OF PARTS Control Throttle cable cord Handle Strap Snorkel Main fin Side fin (incl. screws) remove for transport remove for transport Grip Engine compartment hood Hood latch Mounting tool for testing Set of tools Board bag Engine shut-off key ... - Page 15 DESCRIPTION OF PARTS Carburettor Fuel tank Engine starter Electric bilge pump Engine MSR 50.2 HTX Ignition control unit (ICU) (without a coil) Vacuum bilge pump Ignition coil Jet pump EXHAUST 43.2, including a small container (single-way valve) Engine cooling system output nozzle...
- Page 16 DESCRIPTION OF PARTS Timing sensor (Hall probe) Exhaust cooling system Drain Valve Cable to the engine starter output nozzle Spark Plug Drain Tube FUEL Boot holder (Safety spring) CARBURETTOR ENGINE 50.2 HXT ENGINE STARTER Freewheel Main Gear Countershaft Gear...
-
Page 17: Fuel Tank
Water in the fuel system may cause that the engine will run badly or not at all. Remove the water TC-W3, API TC, ISO-L-EGD: JASO FD/FC; and destroyed petrol and oil mixture properly and then ask your JetSurf™ sales representative TSI. Bad mixing or use of petrol/oil other... -
Page 18: Fuel Mixing
Observe all the safety instructions specified in this manual. FUEL TANK REMOVAL NEVER add fuel into the tank which is inside the JetSurf™. Before adding fuel, ALWAYS take the tank out. Observe all the safety instructions specified in this manual. -
Page 19: Exhaust
As specified above, the throttle trigger is situated on the handle, at the end of the throttle cable. JetSurf™ rec- ommends controlling the throttle with your index finger. You can control the throttle cable by means of the... -
Page 20: Ignition Control Unit (Icu)
The motorized power board JetSurf™ is equipped with an ignition control unit (ICU). DO NOT USE any other ignition control unit (ICU), than the one specified and supplied by the manufacturer for the engine operation. -
Page 21: Description Of Parts . . . . . 26 |9| Warranty
DESCRIPTION OF PARTS DESCRIPTION OF PARTS The ignition control unit (ICU) is connected with the other components using these cables. The electronic ignition system has six basic states: The numbers of the positions in the table correspond to the numbers in the following figure: –... -
Page 22: Signalling Of Ignition Control Unit (Icu) Faults
DESCRIPTION OF PARTS DESCRIPTION OF PARTS RIDE SIGNALLING OF IGNITION CONTROL UNIT (ICU) FAULTS To the state RIDE you will get from the state IDLE, the starter switches off after the pre-set time. The LED flashes green fast. If you did not manage to start the combustion engine, pull the engine shut-off The LED is lit The LED is not lit key from the handle and repeat the procedure (the ICU will get to the state IDLE). - Page 23 DESCRIPTION OF PARTS Engine shut-off key placed in circle, labeled MAGNET, on ICU Careful, the time when the key is in the engine shut-off switch must not exceed 30 seconds!!! Engine shut-off key removed from ICU This function is used when it is necessary to get water or excessive fuel out of the engine.
-
Page 24: Charging Of The Ignition Control Unit (Icu) Battery
(ICU). or oxidised. – NEVER use a different charger other than the one specified by JetSurf™. 3) Connect the charger to the charging connector on the control – ALWAYS put the charging connector cover back after charging. -
Page 25: Engine Starter
DESTRUCTION of starter and excessive use of ICU used for these starts distinctly lowers lifespan of batteries. NEVER START JETSURF IF YOU HAVE DROWNED ENGINE. N o t e : We recommend charging batteries continuously (for example when you have a break be- tween the individual rides). -
Page 26: Carburettor
VÝSTRAHA The carburettor is a vital part of the engine and it requires highly sophisticated adjust- ments. Most adjustments should be left for the JetSurf™ sales representative who has the F I G U R E 1 F I G U R E 2 required knowledge and experience. -
Page 27: Engine
Have the engine and the fuel WARNING system repaired by an authorised JetSurf™ seller before restarting the operation. Fuel must always be transported only in canisters approved by the D.O.T. -
Page 28: Ride
RIDE RIDE FINS Every JetSurf is supplied with 3 fins - two (2) side ones (small) and one (1) main one (big).. BEFORE YOU START FASTENING OF SIDE (SMALL) FINS Before your first ride without being supervised by a sales person or a technician of JetSurf, please First unscrew the long screw which is screwed in the fin. - Page 29 If the throttle trigger does not return correctly, check the throttle cable line, cable adjustment and All the JetSurf motorized power boards have fully adjustable straps. They can be adjusted by pulling cable damage.
-
Page 30: Start And First Ride
Such damage is not covered by the guarantee. WARNING Check the carburettor setting page 50 DO NOT leave JetSurf™ in direct sunlight or anywhere that would allow its surface to rise to a temperature in excess of 65°C/149°F. Excessive Check the bilge pumps page 53 temperatures can cause damage to the engine. - Page 31 RIDE RIDE If our JetSurf™ is ready (the chapter Before start), we can start using it. To check whether the engine BRIEF DESCRIPTION OF STARTING is working and warmed-up, first try the device out of water. 1. STAGE- ICU activation...
-
Page 32: Jetsurf Control - Throttle
During the very first ride, the rider should learn how to operate the control handle and accelerate. must jump onto the JetSurf™ with his/her full weight - F I G U R E 4 . THIS SKILL IS CRUCIAL FOR JetSurf™. The rider can stay in the lying or kneeling position. Only when he/she knows how to control the throttle, he/she can stand up. -
Page 33: Jetsurf Control - Stopping (Falling)
As soon as you have pulled the power board from water, lean it against something with its tip up and wait for a while until most of the water has run out of the JetSurf. Place the Jetsurf on the stand and start it in the angle of 30 degrees with the jet pump facing down. -
Page 34: Cleaning Of Flooded Engine
In such a case it will not be possible to start JetSurf™ and it will be necessary to clean the engine. the spark plug. The position is used for the needs of engine cleaning and it replaces the previous manual shaft turning. -
Page 35: Storage
N o t e : If you are sending your Jetsurf to servicing back to your dealer or directly to the manufac- turer, you do not have to send all the accessories together with the power board (e.g. the tank, fins or charger…... -
Page 36: Maintenance
After removing the boot from the spark plug, NEVER start the engine in a Although JetSurf™ uses the highest quality materials available for production of the motorized power standard way. If the engine is started without having the boot mounted... -
Page 37: The Freewheel
MAINTENANCE MAINTENANCE PROCEDURE: WHEN TIGHTENING THE SPARK PLUG, FOLLOW THE INSTRUCTIONS FROM THE SPARK PLUG MANUFACTURER! – Before every assembly, remove the tank: disconnect the two hoses and undo the velcro with which the tank is attached. 6) Mount the boot on the spark plug. The boot is mounted correctly if the spark plug insulator is fully –... -
Page 38: Table Of Regular Maintenance
MAINTENANCE MAINTENANCE TABLE OF REGULAR MAINTENANCE Spark plug check / cleaning F I G U R E 1 F I G U R E 2 replacing Spark plug boot check Connections, tubes, check connecting material and cables, connectors Board washing with fresh water, drying Freewheel All the engine parts... -
Page 39: Warranty
S e c t i o n 3 . Warranty Exclusions and Limitations. PERIODS APPLICABLE TO THE RESPECTIVE COMPONENTS. Conditions may exist outside of JetSurf™’s control, which may exclude or limit the scope of the war- PERFORMANCE OF REPAIRS AND NEEDED ADJUSTMENTS IS THE EXCLUSIVE REMEDY UNDER THIS ranty statement.. - Page 40 It is the responsibility of the owner(s) to ensure that the emissions ranted by JetSurf™ for the period of time before the first scheduled replacement date for that part. requirements are met for proper operation of the motorized surfboard.
- Page 41 Monday-Friday 8:00 - 18:00 CET at all times. 15) Allow any Third Party or Persons to use the JetSurf™ without prior instruction and train- ing in correct use and operational risks. JetSurf™-authorized repair facilities are independently owned and operated businesses. JetSurf™...
- Page 42 Helmet and Life Vest. The use of an arm or leg leash is compulsory and must be used Address: at all times. 15) Allow any Third Party or Persons to use the JetSurf™ without prior instruction and train- City, State/Province, Code: ing in correct use and operational risks.
-
Page 43: Troubleshooting
TROUBLESHOOTING above steps will void and nullify the JetSurf™ warranty. I have completed and the training conducted by an Authorized JetSurf™ representative and un- derstand what steps must be undertaken to ensure the JetSurf™ board(s) are maintained, cared IF THE POWER BOARD OWNER DOES NOT HAVE SUFFICIENT EXPERIENCE for, serviced and strored. - Page 44 TROUBLESHOOTING TROUBLESHOOTING CHECK OF THE SPARK PLUG AND TIMING F I G U R E 3 F I G U R E 4 SENSOR FUNCTION Be careful, there is high MOUNTING TOOL FOR TESTING SPARKS voltage on the spark plug FROM THE SPARK PLUG boot.
- Page 45 TROUBLESHOOTING NOTE 12) Remove the plug from the boot and if it is not faulty, insert it back in the engine seat. FIRST SCREW THE SPARK PLUG IN BY HAND in order not to damage the thread. When the spark plug is in the seat, tighten it carefully with a spark plug spanner.
-
Page 46: Service Points
SERVICE POINTS HEADQUARTERS +420 774 60 27 01 INTERNATIONAL Czech Republic, , info@jetsurf.com Monday–Friday 8:00–18:00 CET LIST OF DISTRIBUTORS AND SERVICE POINTS France, Caribean france@jetsurf.com +33 618 930 757 Slovakia slovakia@jetsurf.com +421 902 112 200 Russia russia@jetsurf.com +7 962 938 92 22 Norway norway@jetsurf.com... - Page 47 www.jetsurf.com...
