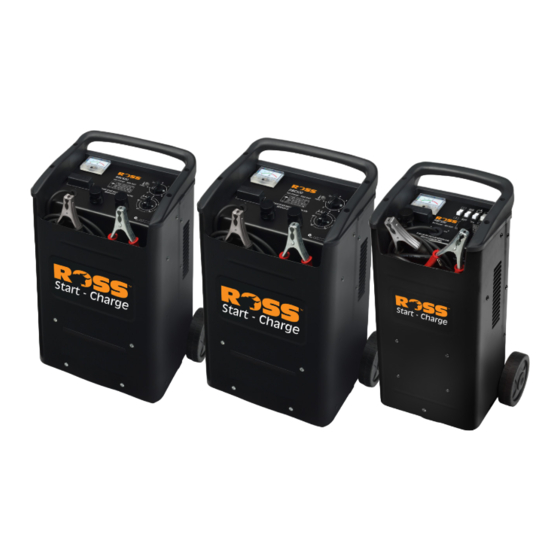

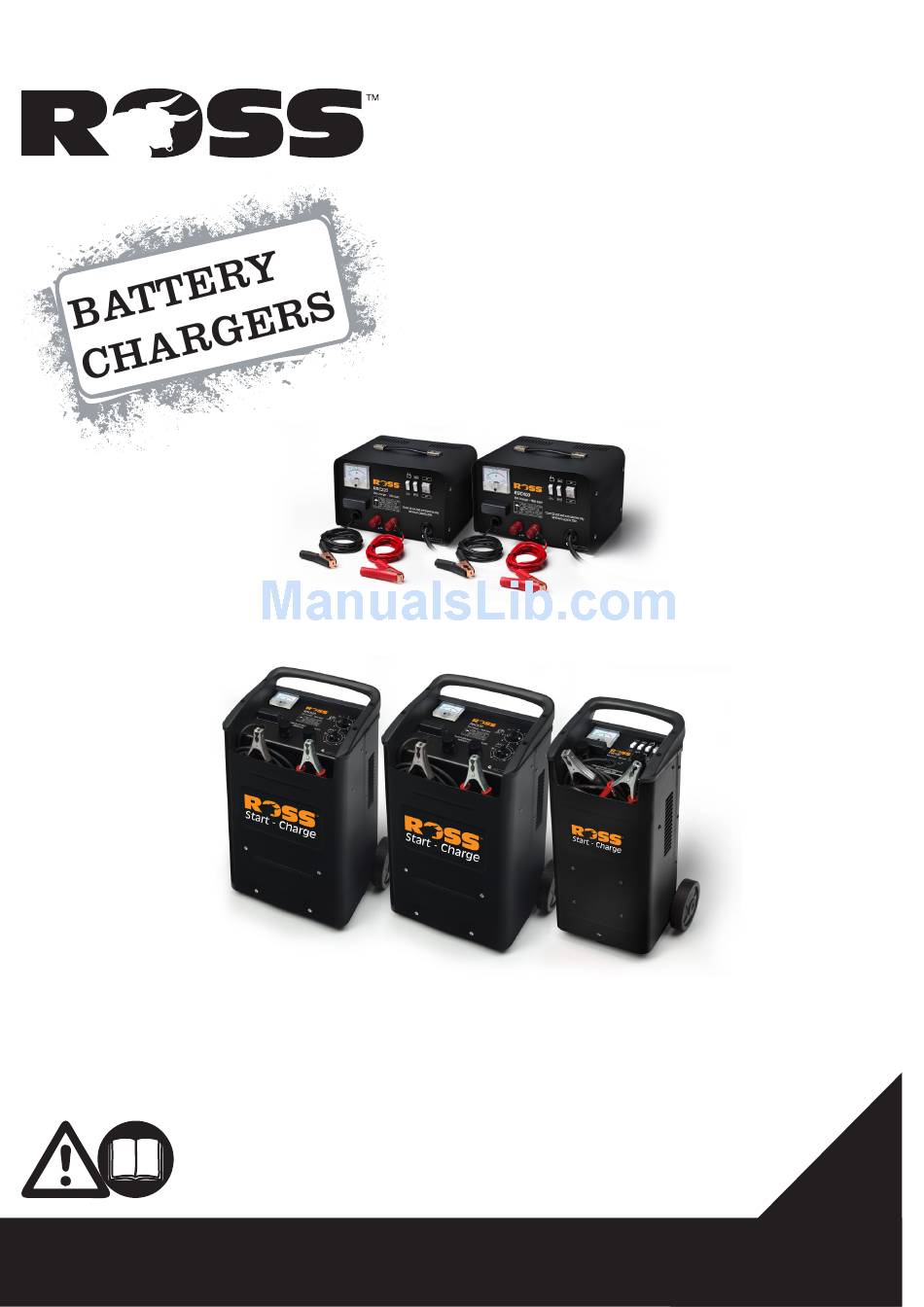

- Page 1 RBC220 RBC400 RBC620 RBC520 RBC320 Protect yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. Please retain instructions for future reference! ROSSCHARGERS...
-
Page 2: Specifications
These battery chargers are ideal for lead acid accumulators on petrol and diesel engines, mo- torcycles, boats etc. The charging current delivered by these chargers is designed according to the charging char- acteristic W bend – see the DIN41774 norm. SPECIFICATIONS MODEL RBC220 RBC400 RBC320 RBC520 RBC620 INPUT VOLTAGE... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS To ensure safe operation when using your battery charger, make sure you follow basic safety principles to reduce risk of personal injury, electric shock, and fire. Please read the following instruction prior to operating this product and keep for future use. Children and Infirm persons This charger is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance... -
Page 4: Important Notes
IMPORTANT NOTES! There are no user serviceable parts inside the charger. Do not open the charger by yourself. If the cord or wires to the crocodile clips become damaged return the unit for repair. Do not let the charger unattended for long periods of time. When the battery is being charged you may notice bubbling in the fluid caused by the release of gas. -
Page 5: Preparation For Charging
PREPARATION FOR CHARGING Before charging check that the capacity of the battery (Ah) is not less than 20 Ah, that the battery is suitable type for charging with this charger and the voltage of the battery is suit- able for charging with this charger. Remove the caps of the battery charger (if fitted) to let the gas produced escape. -
Page 6: End Of Charge
WARNING! LOW OR NO MAINTENANCE OF THE BATTERY. Charge these types of battery slowly and keep on checking the voltage at the battery terminal with a multimeter. When the voltage reaches 14.4 Volts for a 12 Volt battery or 28.8 Volt for a 24 volt battery. -
Page 7: Timer Function
TIMER FUNCTION RPBC 520 and RBC620 only. The charging switch positions 4, 5 and 6 on these models are for boost charging the battery. Then any of these positions are selected the charge timer is activated. The charge timer can then be set to boost charge time up to 60 minutes. - Page 8 Should service become necessary during the warranty period, the purchaser should contact an Authorised Service Centre or J W Ross. In order to obtain warranty service, the purchaser must present the store receipt showing the name of the retailer and the date of purchase.
