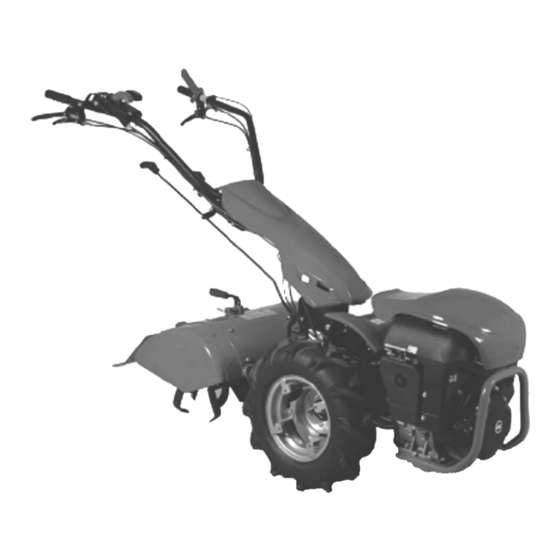

Ferrari 2-w Tuintractor
•
MOTOCOLTIVATORI
•
TWO-WHEEL TRACTORS
•
MOTOCULTEURS
•
TWEE-WIELIGE TRACTOR
•
EINACHSER
MANUALE D'USO E MANUTENZIONE
OWNER'S MANUAL
MANUEL DÉNTRETIEN
HANDLEIDING
WARTUNGSANLEITUNG
Divisione della BCS S.p.A.– V.le Mazzini, 161 – 20081 ABBIATEGRASSO – MI – Italia
340
MOD. 340 TRENDY
346
Codice 90103061
Code 90103061
Code 90103061
Code 90103061
Kodezahl 90103061
Edizione 05.10
Edition 05.10
Edition 05.10
Editie 05.10
Ausgabe 05.10
Advertisement
Table of Contents
Related Manuals for Ferrari 340 Trendy
Summarization of Contents
Identification and Tagging
Engine Identification and Tagging Data
Details on engine identification marks and data.
Machine Tagging and Identification
Information on the machine's identification plate and labels.
Symbols and Warnings
Understanding Manual Symbols
Learn the different symbols used in the manual for clarity.
Important Warnings and Recommendations
Advice on proper machine usage and safety precautions.
Operator Information
Technical Specifications
Details on acoustic pressure, power, and vibration levels.
Machine Overview
Description of Two-Wheel Tractor
Details the FERRARI Two-wheel Tractor's versatility and uses.
Description of Einachser
Details the FERRARI Einachser's versatility and uses.
Machine Assembly
Wheel Mounting and Engine Manual Reference
Instructions for mounting wheels and consulting the engine manual.
Screw and Nut Tightening
Importance of checking all fasteners are securely tightened.
Safety Regulations
General Safety Instructions
Learn to switch off quickly and get acquainted with controls.
Safe Operation Practices
Advice on stability, slopes, and immediate checks.
Machine Safety and Fuel Handling
Machine Cleanliness and Fire Prevention
Keep machine clean to avoid fire risk. Handle fuel safely.
Engine Starting Procedures
Steps for starting the engine safely and correctly.
User and Operational Safety
Prohibited Actions and Conditions
Rules against unauthorized use, improper operation, and unsafe storage.
Motor and Fuel Safety
Warnings about motor modifications, refueling, and exhaust gases.
Control Description
Handle Identification
Identifies each lever and its function on the handlebars.
Control Functions
Explains the purpose of various levers and their operation.
Implement Assembly
Attaching Implements
How to attach implements using flanges or quick hitches.
Handlebar Adjustment for Implements
Adjusting the handlebar for implement mounting.
Power Take-Off (PTO)
PTO Operation and Specifications
How to engage PTO, including speed, rotation, flange, and dimensions.
Pre-Start Checks
Fluid Level Checks
Instructions for checking engine and gearbox oil levels.
Fuel Tank Preparation
Ensuring the fuel tank is filled properly.
Starting the Machine
Pre-Start Engagement Checks
Ensure gear and PTO levers are disengaged before starting.
Engine Starting Procedure
Steps for starting the engine as per the engine manual.
Machine Operation and Gear Engagement
Starting Procedure Details
How to use the starting handle and engine.
Gear Shifting
How to engage desired gears using the control rod.
Implement Engagement and Stopping
Engaging Implements
How to engage implements and PTO.
Stopping the Machine
Procedure for safely stopping the engine and machine.
Lubrication and Maintenance
General Maintenance Practices
Importance of maintenance and checking screws.
Clutch Adjustment
How to adjust the clutch lever.
Engine Maintenance Intervals
Recommended oil checks and changes for the engine.
Fluid Checks and Replenishment
Engine and Gearbox Oil
Procedures for checking and refilling engine and gearbox oil.
Technical Features
Engine, Clutch, Differential, and Brakes
Details on engine type, clutch, differential, and brakes.
Handlebar and Gearbox Specifications
Information on handlebar adjustability and gearbox.
Safety Devices and Implement Compatibility
Safety Device Functions
Explains safety features like motor-stop and reverse speed dog.
Implement Suitability Verification
Criteria for verifying suitability of special implements.
Implements and Accessories
Applicable Implements
Lists implements that can be mounted on FERRARI machines.
Available Accessories
Lists various accessories for the machines.
Special Implements and Accessories
Suitability Verification for Special Tools
Criteria for verifying suitability of special implements.
List of Special Implements and Accessories
Examples of special implements and accessories.
Electric Starter Operation
Electric Starter Instructions
Instructions for starting the engine using the electric starter.
Battery Installation
Details on the type and size of battery to be installed.
Engine Stop and Battery Maintenance
Stopping the Engine
How to stop the engine using the stop lever.
Battery Maintenance
Periodic checks of the battery liquid level.
Specific Implement Manuals
Rotary Hoe, Cutter Bar, Lawn Mower
References to specific manuals for these implements.
Plough Attachments
Plough Types and Usage
Description of single-bottom and 180° swivel ploughs.
Ploughing with Pneumatic Wheels
Recommendation to use 12" pneumatic wheels for deep ploughing.
Adjustable Ridger
Ridger Operation and Adjustment
How to adjust width and depth for ridging.
Ridging in Hard Soil
Advice for working in hard soil and using larger wheels.
Free-Wheel Trailer
Trailer Features and Usage
Describes the trailer's utility, handling, and attachment.
Trailer Braking System
Details the trailer's braking mechanism.
Pneumatic Wheels
Pneumatic Wheel Benefits
Advantages of pneumatic wheels for grip and traction.
Wheel Track Adjustment
How to adjust wheel track for different setups.
Specialized Wheels and Dual Wheel Systems
Steel Cage Wheels
Use of steel cage wheels on hard ground for enhanced grip.
Twinning Rings
How to use twinning rings to double wheel width and grip.
Wheel Track Adjustment and Ballasts
Wheel Spacers
Using spacers to widen track and increase stability.
Wheel Ballasts
Using ballasts to increase machine weight and traction.
Special Couplings and Support Wheels
Curved Coupling
Accessory for attaching trailers without removing the rotary hoe.
Rotary Hoe Support Wheel
Wheel to lift the hoe for easier transport.
Cutter Bar Protections
Front Cutter Bar Protection
Mandatory front protection for the cutter bar during transfers.
Side Cutter Bar Protection
Side protections to prevent blade damage and for safety.
Quick Hitch System
Quick Hitch Components and Assembly
Description of quick hitch parts, assembly, and lubrication.
Troubleshooting
Engine Not Starting
Checks for gasoline engine failure to start.
Fuel System Checks
Steps to check fuel supply and carburetor cleanliness.
Troubleshooting Specific Issues
Diesel Engine Starting Problems
Checks for diesel engine starting issues.
Gear Engagement Issues
How to adjust the clutch for proper gear engagement.
Troubleshooting Implement Issues
Rotary Hoe Operation Issues
Addressing jumping on hard ground with rotary hoe.
Cutter Bar Operation Issues
Addressing cutter bar coupling breaks and grass discharge.
Machine Storage
Long-Term Storage Precautions
Steps to take before storing the machine for extended periods.
Cleaning and Safety Checks for Storage
How to clean and check safety devices before storage.
Clutch Replacement and Adjustment
Clutch Replacement Procedure
Step-by-step guide for replacing the clutch.
Clutch Adjustment and Warnings
How to adjust the clutch and warnings about disassembly.
Machine Package and Warranty
Included Tool Kit
Lists items included with each machine purchase.
Ferrari Warranty Terms
Details the warranty coverage and limitations.
Certificates and Declarations
Conformity Declaration
Grants that the machine meets EEC safety levels.
Supply and Guarantee Declaration
Buyer signs for delivery and warranty.
Origin Certificate
Summarizes technical data and guarantees origin.
Consumables and Maintenance Parts
Parts Subject to Wear
Lists components that wear out with use.
Periodic Maintenance Parts
Lists parts to be replaced during regular maintenance.
Spare Parts and Serial Number
Ordering Spare Parts
How to order replacement parts, including part codes.
Serial Number Importance
Requirement to provide the machine's serial number.
