Edition 2002 -2003
BOTTOM LINE ASSORTMENT

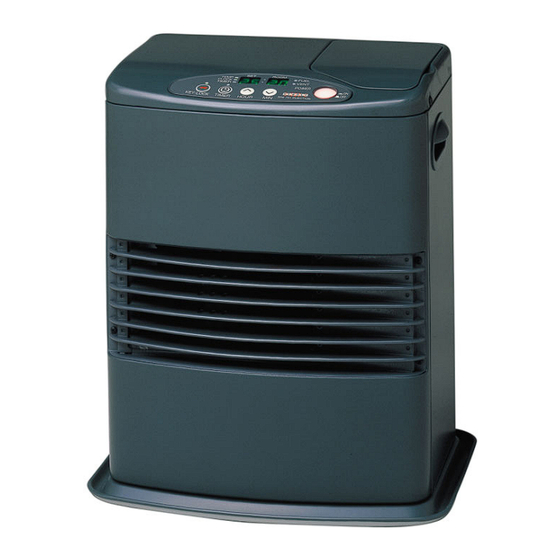

SRE 701
Type heater
Brand name
Model no.
Toyotomi Model Name
Royal Black Brilliant
Burner type
Capacity (W) max.
Capacity (W) min.
Capacity P3 (W)*
Capacity P2 (W)
Capacity P1 (W)
Tank capacity
Burning time tank (hr)
Suitable space (m
)
2
Suitable space (m
)
3
Mains
Accessories
Languages manual
Guarantee
THE 10 MOST IMPORTANT SPARE PARTS
Spare part
description
Burner mat
Removable fuel tank
Fuel tank cap high
Fuel filter high
Burner mat adhesive
Fuel tank cap cover
Manual fuel pump
Mica window
Main circuit board
Fuel pump
Injection
Webber
SRE 701 (Type C)
LC-V302-WB
8713508710556
TECHNICAL SPECIFICATIONS
Electronic Injection
Burning System (BI)
3000
800
2340
1728
1152
4.0 litres
13 hours (MIN)
48 hours (MAX)
12-48
30-120
220V/230V AC/50 Hz
Manual fuel pump, transportation cap, A5 size operating manual
Dutch/French/German/English/Spanish/Italian
2 years (except the burner mat and the manual fuel pump)
Model
D
D
A
A
Dimensions (mm)
(including base plate)
Fuel consumption (l/hr)
Fuel consumption (g/hr) Max
Power consumption
Noise level
Weight heater (kg)
EAN Code
8713508703916
8713508401607
8713508400600
8713508401003
8713508403403
8713508710365
8713508400105
8713508135007
Width
374
Depth
280
Height
430
Max
0.313
Min
0.083
250
Min
67
Preheat
320 W
Burning
32 W
High
37 dB
Low
21 dB
9.5
*Values P1, P2 and P3 are indications
Strictly for internal use
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Webber SRE 701
Summary of Contents for Webber SRE 701
- Page 1 Edition 2002 -2003 BOTTOM LINE ASSORTMENT SRE 701 Type heater Injection Brand name Webber Model no. SRE 701 (Type C) Toyotomi Model Name LC-V302-WB Royal Black Brilliant 8713508710556 TECHNICAL SPECIFICATIONS Burner type Electronic Injection Dimensions (mm) Width Burning System (BI) (including base plate) Depth Capacity (W) max.
- Page 2 Edition 2002 - 2003 488 mm Gross Weight: 10,5 20 ft Block 8x4=32 40 ft Euro 6x4=24 325 mm 425 mm FEATURES WEBBER SRE 701 INJECTION Wickless Design: Provides clean and economical heat without wick maintenance or replacement. Semi-Automatic Operation: Features a 24-hour programmable timer and integrated thermostat controller to maintain the desired room temperature.
