Sony HXR-MC2000N Service Manual

HXR-MC1500C/MC1500P/MC2000E/
MC2000J/MC2000N/MC2000U
SERVICE MANUAL
Ver. 1.0 2010.11
SERVICE NOTE (Check the following note before the service.)
– ENGLISH –
1-1. POWER SUPPLY DURING REPAIRS
1-2. PRECAUTION ON REPLACING THE VC-614 BOARD
1-3. PRECAUTION ON REPLACING THE MS-452 BOARD
1-4. SELF-DIAGNOSIS FUNCTION
1-5. METHOD OF COPING WITH SHIFT LENS ERROR
‒ JAPANESE ‒
1-1. 修理時の電源供給について
1-2. VC-614基板交換時の注意
1-3. MS-452基板交換時の注意
1-4. 自己診断機能
1-5. シフトレンズエラーの対処方法
The components identified by mark Les composants identifiés par une
0 or dotted line with mark 0 are marque 0 sont critiques pour la
critical for safety. sécurité.
Replace only with part number Ne les remplacer que par une
specified. pièce portant le numéro spécifié.
HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U
9-834-541-11
US Model
Canadian Model
AEP Model
E Model
Chinese Model
Japanese Model

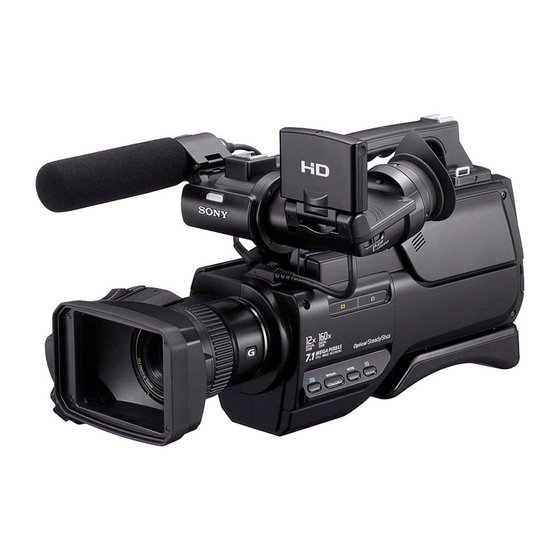

Digital HD Video Camera Recorder
Sony Corporation

Revision History

Ver. Date History
1.0 2010.11 Official Release
