Värmepumpsberedare / Boiler with heatpump
Snabbstart Guide / Quick Start
Indol Supreme 200/300/S & 200R/300R/S
Mer information och instruktionsvideos på vår hemsida www.indol.se
More information and instruction videos on our homepage www.indol.se
© 2015 Indol AB
www.indol.se
Indol Supreme Quickstart Guide, sida 1
Guide
Advertisement
Table of Contents
Related Manuals for Indol Supreme 200
Summarization of Contents
Indol Supreme Boiler Introduction

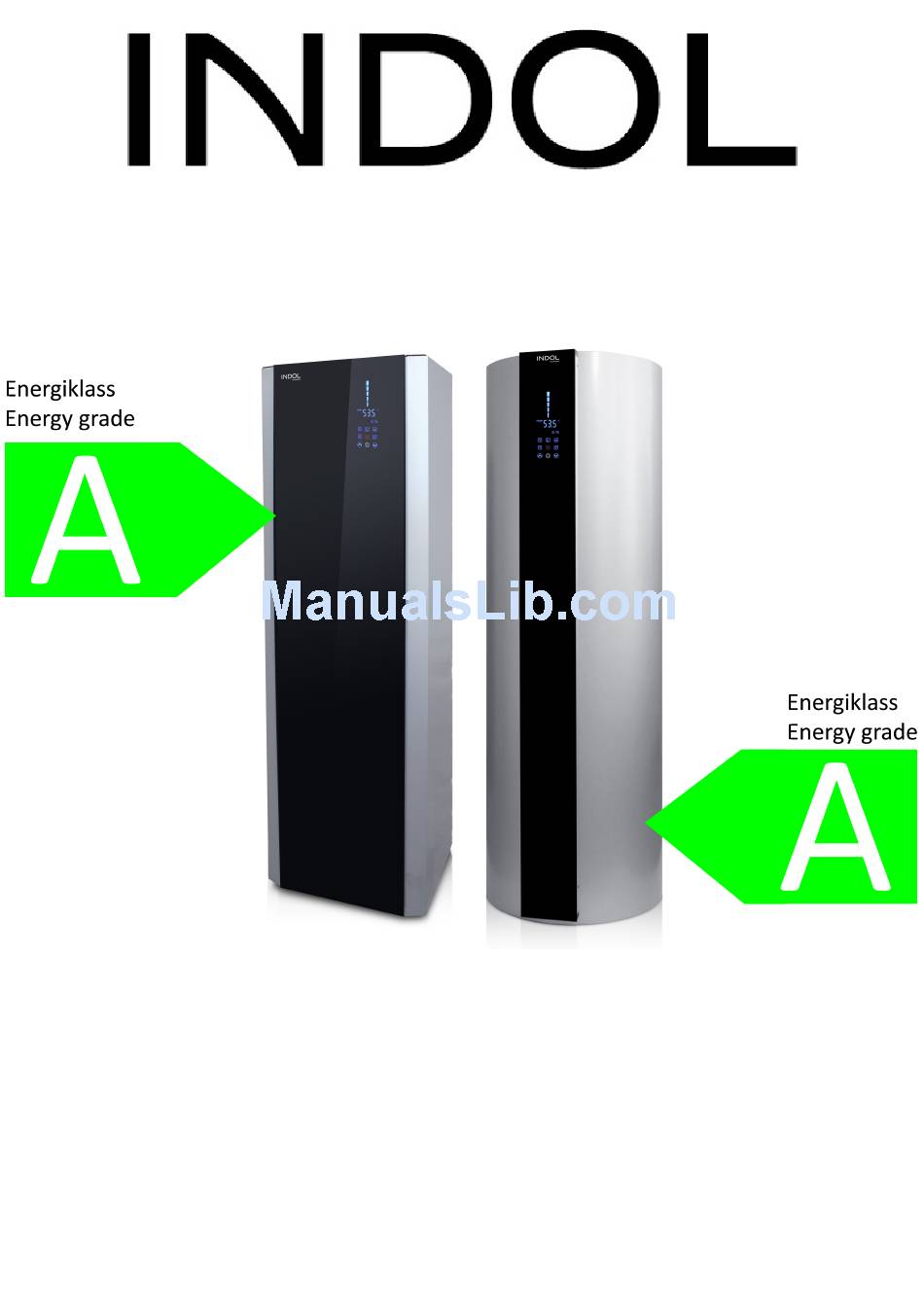

Energy Class A Rating
Highlights the 'A' energy grade for the Indol Supreme models.
Product Series Overview
Introduces the Indol Supreme 200/300/S and 200R/300R/S product lines.
Manual Introduction and Disclaimer
Image Usage Disclaimer
States that manual images are for illustration and may differ from the actual product.
Product Specifications: Supreme 200/300/S Models
Key Technical Specifications
Details technical specifications for Supreme 200, 200S, 300, and 300S models.
Product Specifications: Supreme 200R/300R/S Models
Key Technical Specifications for R Series
Details technical specifications for Supreme 200R, 300R, and 300RS models.
Location and Installation Guide
Air Handling and Placement Options
Explains different ways the unit can handle air intake and exhaust.
Standard Installation Requirements
Lists materials needed for a standard installation setup.
Installation Parts and Accessories
Required Plumbing Components
Lists essential plumbing parts and their RSK product numbers.
Ventilation and Stand Options
Details ventilation hoses and optional stands for the unit.
Supreme 200/300/S Unit Description
Component Diagram and Labels
Illustrates the Supreme 200/300/S with numbered components and their descriptions.
Supreme 200R/300R/S Unit Description
Component Diagram and Labels for R Series
Illustrates the Supreme 200R/300R/S with numbered components and descriptions.
Water, Air Connections, and Safety
Electrical Safety and Grounding
Emphasizes the importance of proper electrical grounding for safety.
Drainage and Condensate Lines
Explains the connections for draining the tank and handling condensate.
Installation Examples: Airflow Configurations
Same Room Air Circulation
Example of drawing and exhausting air within the same room.
Room Air Exhaust to Exterior
Example of drawing room air and exhausting it through an external wall.
Ducting Limitations and Insulation
Notes maximum duct length and the need for condensation insulation.
More Installation Examples: Airflow
Exterior Air Intake and Exhaust
Example of drawing and exhausting air directly from outside.
Cross-Room Airflow to Exterior
Example of drawing air from one room and exhausting it outside.
Air Handling Accessories and Options
Ducting and Transition Fittings
Details ventilation pipes (spirorör) and necessary transition fittings.
Airflow Control and Filtration Components
Covers ventilation grilles, plate valves, and air filters.
Inter-Room Air Transfer
Illustrates transferring air between different rooms.
Solar Integration for 'S' Models
Solar Water Heating Connection
Explains connecting a solar panel for water heating on 'S' models.
Floor Heating and Fan Coil Connectivity
Details 'S' model connectivity for floor heating or fan coils.
Floor Heating and Fan Coil Integration
Connecting Small Floor Heating Systems
Guide for connecting small floor heating systems to the Indol Supreme.
Connecting Fan Coil Units
Guide for connecting fan coil units to the Indol Supreme.
Unit Startup and Control Panel Overview
Pre-Start Safety Checks
Ensures all connections are made correctly and safely before startup.
Control Panel Button Functions
Describes the functions of buttons on the unit's control panel.
Setting the Water Temperature
Temperature Adjustment Procedure
Step-by-step guide for adjusting the desired water temperature.
Setting the Clock and Date
Date and Time Configuration Steps
Instructions for setting the internal clock and date.
Selecting Heating Modes
Eco Mode Operation
Details the 'Eco' mode, focusing on heat pump efficiency.
Auto Mode Operation
Explains the 'Auto' mode for automatic heat selection based on conditions.
Advanced Heating Modes
Quick Heating Mode
Describes the high requirement or quick heating mode.
Standard Heating Mode
Explains the standard heating mode with heat pump and potential electric heater use.
Vacation Mode Configuration
Setting Vacation Period
Instructions for setting the unit to vacation mode.
Timer Functionality
Setting Daily Timer Schedules
Explains how to program daily start and stop times for the unit.
Timer Setup: Start Time
Configuring Timer Start Hours
Step-by-step guide to set the timer's start hour and minutes.
Timer Setup: Stop Time and Cancellation
Configuring Timer Stop Hours
Step-by-step guide to set the timer's stop hour and minutes.
Cancelling Timer Settings
Procedure for removing existing timer settings.
Additional Information and Usage Tips
Power Outage and Display Behavior
Information on unit restart after power loss and display sleep mode.
Energy Efficiency and Temperature Optimization
Tips for maximizing energy savings and hot water production.
Maintenance Procedures
Tank Draining and Anode Inspection
Instructions for draining the tank and checking the anode.
Air Filter Requirement
Emphasizes the importance of installing and maintaining an air filter.
Ongoing Maintenance Tasks
Air Filter Cleaning and Anode Checks
Guidance on cleaning the air filter and annual anode checks.
Safety Valve Testing and System Shutdown
Procedure for testing the safety valve and shutting down the system.
Contact Information and Copyright
Company Support and Details
Provides Indol AB contact details and website information.
