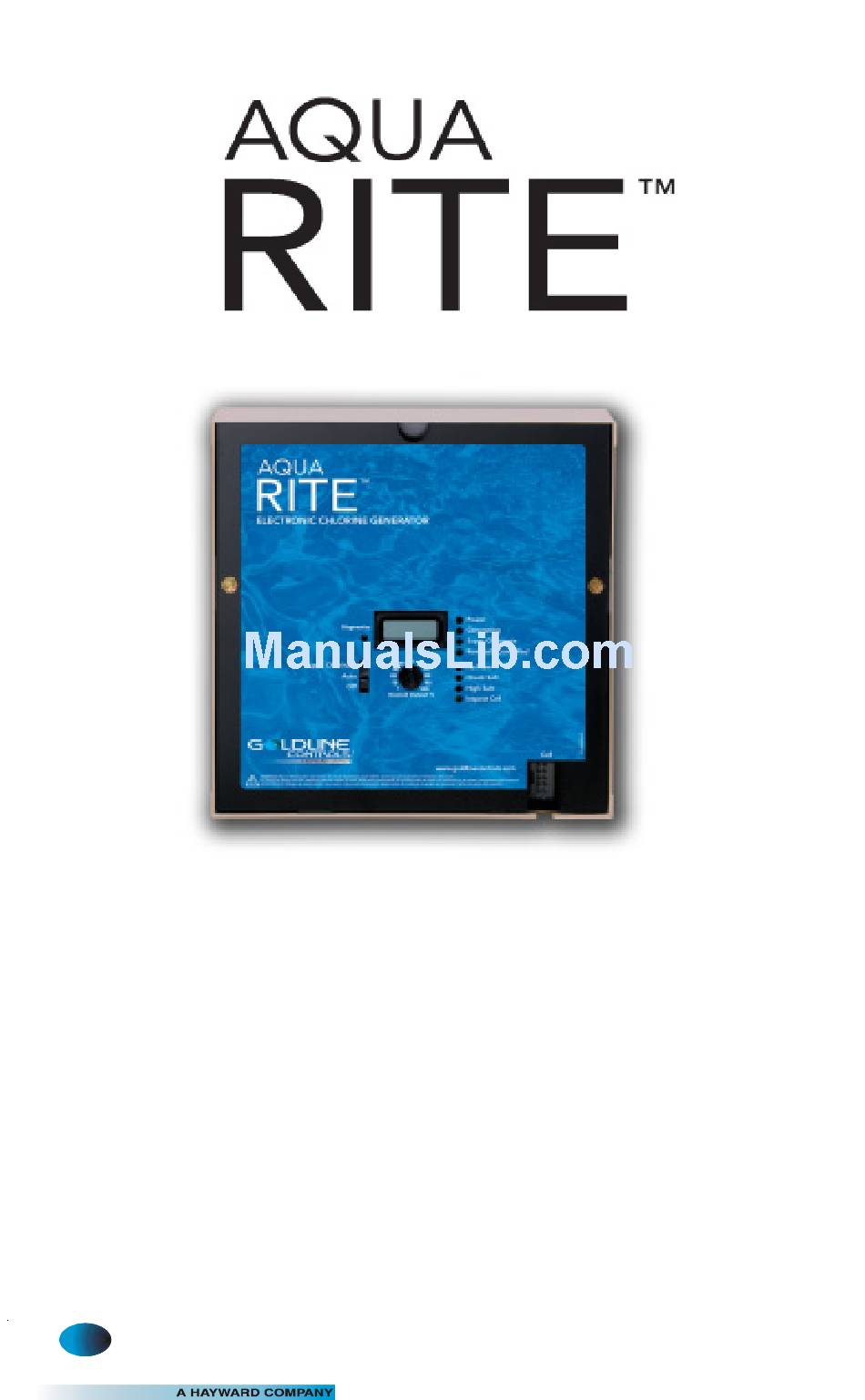

- Page 1 Electronic Chlorine Generator Operation and Installation Manual LINE ON TROLS www.goldlinecontrols.com...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS When using this electrical equipment, basic safety precautions should always be followed, including the following: READ AND FOLLOW ALL • INSTRUCTIONS • Use Copper Conductors Only • Disconnect all AC power during installation. • Warning - To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times.
-
Page 3: Table Of Contents
Plumbing Plumbing..................11 Plumbing Plumbing Plumbing Wiring Wiring....................12 Wiring Wiring Wiring TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING Troubleshooting Troubleshooting Troubleshooting Troubleshooting.................14 Troubleshooting WARRANTY WARRANTY WARRANTY WARRANTY WARRANTY Warranty Warranty..................16 Warranty Warranty Warranty Aqua Rite is a registered trademark of Goldline Controls ®... -
Page 4: Operation
The operation requires a low concentration of salt (sodium chloride) in the pool water. These levels are low enough that it normally will not be tasted. The Aqua Rite automati- cally sanitizes your pool by converting the salt into free chlorine which kills bacteria and algae in the pool. -
Page 5: Water Chemistry
Your Authorized Aqua Rite Dealer (AARD) or most pool stores can provide you with the chemicals and procedures to adjust the water chemistry. Be sure to tell the pool store that you are using an Aqua Rite chlorine generator. Saturation index The saturation index (Si) relates to the calcium and alkalinity in the water and is an indicator of the pool water "balance". - Page 6 If the level is low, determine the number of gallons in the pool and add salt according to the chart on page 4. A low salt level will reduce the efficiency of the Aqua Rite and result in low chlorine production. A high salt level can cause the Aqua Rite ® ®...
-
Page 9: Controls
Aqua Rite has stopped generating chlorine. A flashing LED indicates a 15-60 second time delay period. CHECK SALT When flashing, the salt level is low (below 2700 ppm) and Aqua Rite is generating at low efficiency. When illuminated steady, the salt level is too low and Aqua Rite has shut down. - Page 10 4. Push the Diagnostic button to exit. Desired Output %" adjustment knob The "Desired Output %" adjustment knob is located in the lower center of the Aqua Rite control panel. This setting is used to control the amount of chlorine the Aqua Rite generates.
-
Page 11: Maintenance
When connected to a pool automation control (Goldline Pro Logic, Pentair Intellitouch or Polaris Eos): The Aqua Rite is designed to operate with all pool automation controls. The Pro Logic, Intellitouch or Eos can fully control the function of the Aqua Rite chlorinator in addition to the other pool equipment. - Page 12 Spring Start-up DO NOT turn the Aqua Rite on, until the pool water chemistry has been brought to the proper levels. This information can be found on page 1.
-
Page 13: Installation
Aqua Rite system. Mounting the Aqua Rite Control The Aqua Rite is contained in a raintight enclosure that is suitable for outdoor mount- ing. The control must be mounted a minimum of 5 ft. (2 meters) horizontal distance (or more, if local codes require) from the pool/spa. -
Page 14: Plumbing
® local potable water supply. Consult local plumbing codes. The Aqua Rite is packaged with a flow switch and cell unions. The cell must be pur- chased separately. Refer to page 1 for information about available chlorinator cells. The flow switch and cell should be plumbed in the return line to the pool/spa. The preferred installation is after (downstream) all the pool equipment (filter, heater, solar, etc.). -
Page 15: Wiring
Input Power For stand alone operation: Wire the Aqua Rite to the LOAD SIDE of the filter pump timer. It is very important that the Aqua Rite is powered only when the pump is running. - Page 16 The Goldline, Pentair and Polaris controls use a 4 wire connection to communicate to the Aqua Rite and can be wired up to 500' apart. Any outdoor rated 4 conductor cable can be used. Refer to each manufacturer's instructions and the wiring diagrams below for proper wiring connection to the Aqua Rite.
-
Page 17: Troubleshooting
Aqua Rite control. Verify input voltage with a voltmeter. If there is input power, the fuse may have blown. The Aqua Rite is protected by a 20 amp mini ATO fuse located on the circuit board above the cell connector. - Page 18 - Salt level too high (High Salt LED on). - Very warm pools increase chlorine demand--increase Output %, or filter run time. - Cold water (below 50ºF) causes Aqua Rite to stop generating (Generating LED flash- ing). - Excessive scaling on cell.
- Page 19 LIMITED WARRANTY (effective 04/01/09) Hayward/Goldline warrants its Pro Logic and E-Command pool automation products as well as its Aqua Rite, Aqua Rite Pro, Aqua Plus and SwimPure chlorination products to be free of defects in materials and workmanship, under normal use and service, for a period of three (3) years. Hayward/Goldline also warrants its Aqua Trol chlorination products to be free of defects in materials and workmanship, under normal use and service for a period of one (1) year.
- Page 20 ELECTROLYTIC CHLORINE GENERATOR BASIC POOL MAINTENANCE REQUIREMENTS TEST IDEAL RANGE ADJUSTMENT REQUIRED Raise desired output % to Free Chlorine 1.0 - 3.0 ppm increase, lower desired output % to decrease -OR- increase or decrease pump filtration time. 7.2 - 7.8 Too high - add muriatic acid Too low - add soda ash.
