UDS Series
User's Manual
Shenzhen JingFeng Digital Technology Co., Ltd.
http://www.jfdigital.com
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UDS-3 and is the answer not in the manual?

Questions and answers

Related Manuals for JF Digital UDS-3

Summary of Contents for JF Digital UDS-3

  • Page 1 UDS Series User’s Manual Shenzhen JingFeng Digital Technology Co., Ltd. http://www.jfdigital.com - 1 -...
  • Page 2 Thank you for using a series of UDS- a high-performance network player made by Shenzhen JingFeng Digital Technology Co., Ltd. We hope you can enjoy the high quality music from our products. In order to make you get more information about our products, we recommend that you spend a little time reading the user’s manual before operating the device.

  • Page 3: Table Of Contents

    Contents ..............Ⅰ. DEVICE LAYOUT INTRODUCTION 1.1 UDS-1 Device layout introduction ................1.2 UDS-3 Device layout introduction ............................. 1.3 UDS-5 Device layout introduction ............Ⅱ. REMOTE CONTROL INSTRUCTIONS ............... 10 Ⅲ. OPERATION GUIDE ..........................3.1 Power ON/OFF ............

  • Page 4: Ⅰ. Device Layout Introduction

    Ⅰ. Device layout introduction 1.1 UDS-1 Device layout introduction Front panel 1. Power button and power LED are red in the standby time. 2. 7-inch true color screen 3. Receive Window with infra-red remote control. 4. 6.5mm earphone export,connect to the earphone of high impedance above 50 ohmic.

  • Page 5: Uds-3 Device Layout Introduction

    Back Panel 1. the AC power input jack 2. Power fuse box(250V/1A) 3. analog output transformer RCA jack 4. S/PDIF coaxial output transformer RCA jack 5. S/PDIF coaxial output transformer RCA jack 6. S/PDIF Fiber optics input transformer jack 7.USB2.0 input interfaces,to connect with storage device such as USB flash disk or mobile hard drive 8.

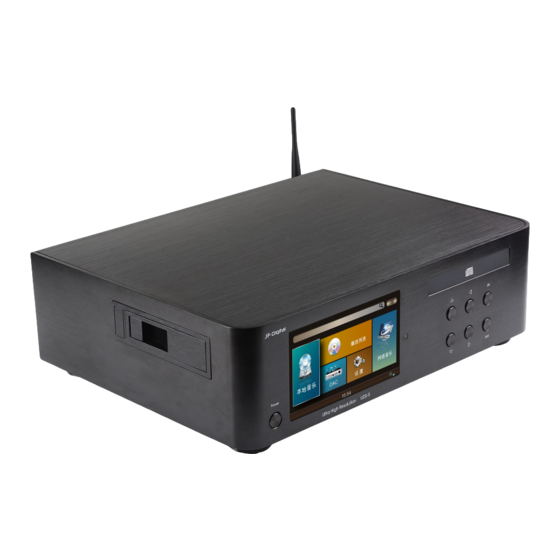

  • Page 6 Front panel 1.Power button and power LED are red in the standby time. 2. 7-inch true color screen 3. Receive Window with infra-red remote control. 4. up/down/Last/Next/OK/exit 5. CD Ripper disk 6.Pulling hard disk rack to support 4TB hard disk. UDS-3/UDS-5 Back Panel 1.

  • Page 7: Remote Control Instructions

    3. left/right Channel analog output RCA jack left/right Channel analog output RCA jack 4.left/right Channel analog input RCA jack left/right Channel analog balanced RCA jack 5. S/PDIF RCA jack 6. S/PDIF output balanced RCA jack 7. USB 2.0 Input interfaces to connect with storage device such as USB flash disk or mobile hard drive 8.
  • Page 8 Button Button Functions name icon After powered on,the remote control will get into Standby standby status until powered off.It will take 3 seconds to power off by pressing this key（Not support use） Mute Mute sounds or open audio. 1. In the player interface, press this key to switch play mode.

  • Page 9: Ⅲ. Operation Guide

    1.In playing status， press this key to choose the last or Last/Next next songs. 2.In other states, press this key to operate as left/right. This key as an enter key Press this key to stop playing and return to the main STOP menu EXIT...

  • Page 10: The Main Interface

    3.2 The main interface After the completion of the machine starting to enter the main menu, a total of five functional icons appear: - 10 -...

  • Page 11: The Secondary Menu Interface

    Local Music Including built-in disk, USB device, CD play function Playlist Display local, radio, network sharing collection function Network music Internet radio , UPNP, Samba sharing documents DAC Input external signal options, including S/P DIF input,analog input,HDMI input selection Setting contain system settings, audio parameters,etc 3.3 The secondary menu interface 3.3.1 Local music...
  • Page 12 Instructions: Press on the remote control up/ down / left / right, you can select the menu list   Press the remote's fast-forward / rewind key to select the previous or next page  Press the remote's "ADD FAV" ,it can add document to the playlist ...
  • Page 13 1. File name and album art 2. File details ,such as artist, album, genre, sampling rate, etc. 3.The current playback volume 4.The time and the progress of file 5.Control buttons, they are:recording, previous, play / pause, next page, stop, playback modes shift from left to right .
  • Page 14 Note: PCM format can switch pictures or level meter, DSD format can only display pictures Audio Setup function In the play interface, press FUN key to enter the audio setup,set the parameters ,then press the escape key to return to the current state Recording - 14 -...
  • Page 15 1. In the playback interface, press the record button on the remote control, the system will enter the path save interface 2. Select the storage device, press the OK button 3. During recording,the playback interface font turns yellow,indicating that it is recording, press the record button again to stop recording 4.

  • Page 16: Document Retrieval Function

    Special note: 1.When recording or CD ripping, the current storage device needs to have enough space, otherwise it will be inoperable or interrupting operation because of insufficient memory 2.CD information (such as cover, album, artist, etc.) function will show after upgrading Document retrieval functions When entering the local and network resources, press F1 key to enter the retrieval keyboard input interface,input the keyword of files, select the Search key, press the OK button to...

  • Page 17: Playlist

    3.3.2 Play list You can view and create lists of network resources, Internet radio and local resources in play list favorites. In the state of the local music, the network sharing and network radio, press “ADD FAV” button, each document can be stored in the play list. Network sharing you can view a list of favorite files via UPNP, Samba Radio sharing...
  • Page 18 Operating Instructions: Press the remote's "Up / Down / Left / Right" key, you can select the menu list, Press the remote's fast-forward / rewind key to select the previous or next Press the remote's "FUN" key to delete the list In the play list screen, press the remote control "ADD FAV", You can customize the favorites files, and it is easy to search for users Create user-defined folder:...
  • Page 19 3. After the folder name is created, the system will enter the list selection screen, select the documents needing to be classified , press the remote control ADD FAV key document,then plus sign turns yellow from gray , after the document selection, press EXIT interface and it has been created successfully.

  • Page 20: Network Music

    5. Delete the list: In the list screen,find the document needing to be deleted, press FUN button on the remote control, the system pop up boxes, press the OK button to confirm the deletion, or choose to cancel. 3.3.3 Network music You can view the displayed Internet radio on the internet music , UPNP and Samba share, as follows: Before the use of network resources, we must first set up the network (see the network settings),...
  • Page 21 You can view the current shared IP address of the computer within a local area network(LAN) , select the IP address prompted for a password, if the sharing file is not set the password ,then click OK, and find the shared file for playback. You can manually enter the specified IP address, the shared IP address can connect network equipment The method of entering the IP address: With the up / down keys to select the number of changes on the remote control , with the left /...
  • Page 22 1.Set up network share: first, make sure the UPNP function of router is turned on,connect the streaming server that stores shared documents with UPNP function to network. Streaming media server can be NAS device with UPNP function, also can be PC machines fitted with UPNP streaming media software 2.

  • Page 23: Dac

    1.Before playing Internet radio, make sure the network is connected, in the main menu to select online music - Internet radio 2.Go to the Radio category list: "Recommend" - "Region" - "Type" - "Language" - "User-defined radio stations." "Recommend" contains system recommended 85 domestic and foreign popular radio stations "Region"...
  • Page 24 Home key (RCLL LIST key) to exit the DAC function, return to the main menu. Display interface and the corresponding rear panel interface map UDS-1 S/P DIF input interface 1.When RCA digital inputs, entering the DAC interface to select S/PDIF - coaxial 1 DAC option 2.When optical digital inputs, entering the DAC interface to select S / PDIF - coaxial 2 DAC...

  • Page 25: Uds-3/Uds-5

    HDMI input connector Features:  Support the decoding formats of PCM and DSD  Support*2 HDMI signal input , 1 HDMI direct output (1080P/3D)  Support PCM and DSD format source signal recording  Save PCM as wav format  Save DSD as dff format UDS-3/UDS-5 S/P DIF input interface...
  • Page 26 1. When RCA inputs,entering the DAC interface to select S / PDIF corresponding to coaxial 1-4 input respectively 2. When the optical inputs,entering the DAC interface to select S / PDIF corresponding to the optical fiber 5-6 input respectively 3. When the balanced inputs, entering the DAC interface to select S / PDIF corresponding to equilibrium 7-8 input respectively HDMI input connector Features:...

  • Page 27: Analog Input

    <ON>, which can achieve Pass-Through function, and can output audio resources in an external storage device ,if set to <OFF>, only output Pass-Through signal source When not using this function, select close, to extend the life of the machine HDMI signal Recording In the DAC interface, select HDMI1-4 option in HDMI input, press the OK button to get the signal.

  • Page 28: Network Settings

    input-an balanced input Analog signal recording When needing analog signal recording, please first enter the settings - Audio settings - select file formats to be saved in the analog output (saved as WAV and DFF). Analog recording ---the format for the first time into the default is DSD2.822M. In the DAC input interface,select the balanced or unbalanced input in analog inputs, press the record button on the remote control, the system will choose the path to save the screen, press the OK button to confirm.

  • Page 29: Firmware Upgrade

    Firmware upgrade support online and local upgrade Version product names, firmware version, software version, release date, MAC information address 3.4.1 Audio Settings In the music playback or DAC player interface, press the remote control FUN key, you can go directly to the audio settings, select D / A chip to set various parameters, which will achieve a better sound experience.
  • Page 30 The system default parameters, as follows: ES9018 settings De-emphasis --- Off Jitter suppression ---- On (other items unchanged) Digital filter: DSD bandwidth of standard Digital filter: FIR attenuation fast Screen brightness --- 2 Analog recordings --- default output format is DSD2.822M 3.4.2 Network settings Network settings: network type, IP settings, DHCP, WIFI switch 1.Wired network priority settings: insert the home computer network cable directly into a LAN...
  • Page 31 2.Wireless network settings:there are two kinds of connections. The first: the traditional connection way Operation: connect the Wi-Fi antenna , select in the main menu: Settings - Network selection - Network type - wireless. The system automatically searches for wireless network equipment. Select the router, and enter the password to connect. Enter password: If the password is a pure number, press the number keys on the remote control to input, if it is numbers and letters, then switch the input mode on the display,then input the password, press OK key.
  • Page 32 Select the IP setting -IP address, and IP address input box pops up. Enter the IP address using the remote control number keys or the up / down / left / right to input. After setting the IP address ,it will automatically return to the previous level, and you can set "Router Address"...
  • Page 33 Languages: English, Simplified Chinese, Traditional Chinese, German, Italian, Japanese and other languages to match with different countries and regions. 3.4.4 Time zone settings Provide global zone selection, get the current time automatically in different countries and regions 3.4.5 Display settings - 33 -...
  • Page 34 The brightness of background light : three different display brightness adjustment, you can use the remote control to select the appropriate brightness, and the third is the brightest. The background light time: there are 4 modes available setting the display light time,including:5 seconds,10 seconds,30 seconds and always keeping brightness.
  • Page 35 ,with a spare fuse to replace.If all the ways have been carried out,the machine still does not work,please contact the manufacturer to wait to be repaired. UDS-1 fuse is 1A, UDS-3/5 fuse is 2A - 35 -...

  • Page 36: Ⅴ、 Product Specification

    DSD 1Bit/5.6MHz PCM 24Bit/192KHz DTS 24Bit/192KHz Analog Input PCM 24Bit/192KHz DSD 1Bit/5.6MHz Package contents and parameters Package contents 1*Product host 1*AC power cord 1*Remote control 1*Manual 1*WI-FI antenna UDS-1 Size 285(W)*310(D)*150(H)mm Weight 5KG/11B UDS-3/5 Size（D×W×H） 435(W)*310(D)*150(H)mm Weight 11KG/23B - 36 -...
  • Page 37 ： Warranty & Disclaimer Ⅰ.The user can get warranty service within one year from the date of signing this Warranty card,however,in the case that the user does not return the Warranty card;Thirty days shall be added to the release date for the warranty date to start. Ⅱ.Please ensure the filled information in the Warranty card completed and it shall not come into effect until it is signed by the person who hand over this product with the chop of the distributor and taken back by the distributor or its staff.
  • Page 38 Customer code(filled by manufacturer)： Servicing time Fault descriptions: Servicing time Fault descriptions: Shenzhen JF Digital Tech. Co., Ltd. Address: B Room,30th Floor,Haiyi Ge,Sceneway Ambassy.No.10 of Kexing Road,Science and Technology Park,Nanshan District,Shenzhen City,China Tel:+86-755-83225760 Fax:+86-755-86093355 Code:518031 http://www.jfdigital.com - 38 -...
