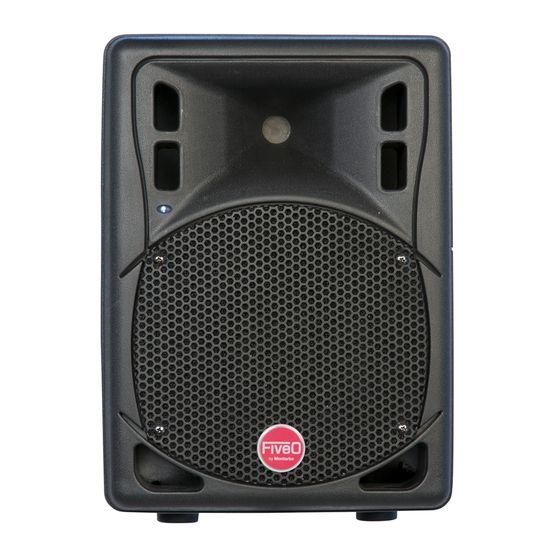

- Page 1 DUETTO lIGHT SERIES DUETTO LIGHT 8A DUETTO LIGHT 10A DUETTO LIGHT 12A DUETTO LIGHT 15A ACTIVE FULL RANGE LOUDSPEAKERS USER’S manUal...
-
Page 2: Package Contents
DUETTO LIGHT SERIES PaCKaGE COnTEnTS • Active full range loudspeaker • Power cable (3m) • 2x Floor monitor brackets • Owner’s manual • Warranty certificate Owner’s manual | DUETTO lIGHT SERIES Active Full Range Loudspeakers... -
Page 3: Important Precautions
® In the European Union | If the product is used for business purposes in your Country or to qualified personnel specifically and you want to discard it: please contact your FiveO by Montarbo dealer authorised by the Distributor. ®... - Page 4 DUETTO LIGHT SERIES Owner’s manual | DUETTO lIGHT SERIES Active Full Range Loudspeakers...
-
Page 5: Table Of Contents
DUETTO LIGHT SERIES COnTEnTS Important precautions Components and Feautures DUETTO LIGHT 8A DUETTO LIGHT 10A DUETTO LIGHT 12A DUETTO LIGHT 15A Tipical Speaker Setup Looping Speakers Rigging and Monitoring Options Technical specifications DUETTO lIGHT SERIES Active Full Range Loudspeakers | Owner’s manual... - Page 6 DUETTO LIGHT SERIES - Components and Features (115/230V - 50/60Hz) (115/230V - 50/60Hz) Owner’s manual | DUETTO lIGHT SERIES Active Full Range Loudspeakers...
-
Page 7: Components And Feautures
DUETTO LIGHT SERIES - Components and Features COmPOnEnTS anD FEaTURES HIGH FREQUENCY TRANSDUCER This unit is used to reproduce the high frequency response. WOOFER The custom powered woofer is used to reproduce the low frequencies. RUBBER FOOT The speaker includes heavy duty rubber feet on the bottom of the unit. We use forcer screw to strengthen rubber foot . - Page 8 DUETTO LIGHT 8A - Components and Features - Rear of DUETTO LIGHT 8A - 115V 230V (115/230V - 50/60Hz) MIC XLR INPUT Plug a mic directly into this port for public address usage and let your voice be heard. (No phantom power)
- Page 9 DUETTO LIGHT 8A - Components and Features XLR LINE OUTPUT Using a XLR cable, use this port to daisy chain from your DUETTO LIGHT 8A to another DUETTO LIGHT 8A or other powered speaker. AC VOLTAGE SELECTOR This switch is used to change the operating voltage. Operating voltage can be toggled between 115V or 230V/50~60Hz.
- Page 10 DUETTO LIGHT 10A - Components and Features - Rear of DUETTO LIGHT 10A - (115/230V - 50/60Hz) MIC XLR INPUT Plug a mic directly into this port for public address usage and let your voice be heard. (No phantom power) BALANCED XLR LINE INPUT This connection is designed to accept a balanced line input signal from a mixer or other line level device with a balanced output jack.
- Page 11 DUETTO LIGHT 10A - Components and Features 1/4” LINE OUTPUT This is used to send the incoming line level signal from either of the Line Level Inputs Jacks to another DUETTO LIGHT 10A or other powered speaker. XLR LINE OUTPUT Using a XLR cable, use this port to daisy chain from your DUETTO LIGHT 10A to another DUETTO LIGHT 10A or other powered speaker.
- Page 12 DUETTO LIGHT 12A - Components and Features - Rear of DUETTO LIGHT 12A - (115/230V - 50/60Hz) MIC XLR INPUT Plug a mic directly into this port for public address usage and let your voice be heard. (No phantom power) BALANCED XLR LINE INPUT This connection is designed to accept a balanced line input signal from a mixer or other line level device with a balanced output jack.
- Page 13 DUETTO LIGHT 12A - Components and Features 1/4” LINE OUTPUT This is used to send the incoming line level signal from either of the Line Level Inputs Jacks to another DUETTO LIGHT 12A or other powered speaker. XLR LINE OUTPUT Using a XLR cable, use this port to daisy chain from your DUETTO LIGHT 12A to another DUETTO LIGHT 12A or other powered speaker.
- Page 14 DUETTO LIGHT 15A - Components and Features - Rear of DUETTO LIGHT 15A - (115/230V - 50/60Hz) MIC XLR INPUT Plug a mic directly into this port for public address usage and let your voice be heard. (No phantom power) BALANCED XLR LINE INPUT This connection is designed to accept a balanced line input signal from a mixer or other line level device with a balanced output jack.
- Page 15 DUETTO LIGHT 15A - Components and Features 1/4” LINE OUTPUT This is used to send the incoming line level signal from either of the Line Level Inputs Jacks to another DUETTO LIGHT 15A or other powered speaker. XLR LINE OUTPUT Using a XLR cable, use this port to daisy chain from your DUETTO LIGHT 15A to another DUETTO LIGHT 15A or other powered speaker.
- Page 16 DUETTO LIGHT SERIES - Typical Speaker Setup MIXER XLR-XLR Balanced Cables (115/230V - 50/60Hz) (115/230V - 50/60Hz) DUETTO LIGHT 12A DUETTO LIGHT 12A Owner’s manual | DUETTO lIGHT SERIES Active Full Range Loudspeakers...
- Page 17 DUETTO LIGHT SERIES - Looping Speakers FROM MIXER Line Output (115/230V - 50/60Hz) (115/230V - 50/60Hz) To Next DUETTO LIGHT Speaker (If Applicable) DUETTO LIGHT SERIES - Rigging and Mounting Options FlOOR mOnITOR BRaCKETS These brackets are help ful for DJ’s and bands to help moniter their sound during a performance.
-
Page 18: Duetto Light 8A
DUETTO LIGHT SERIES - Technical Specifications DUETTO LIGHT 8A Active Fullrange Loudspeakers Dimensions: 11.6”(L) x 8.9”(W) x 16.1(H) / 295mm x 225mm x 409mm Weight: 18.1 Lbs. / 8.2 kg Environmental conditions: Operational temperature: 5° to 35° C (41° to 95° F) -
Page 19: Duetto Light 12A
DUETTO LIGHT SERIES - Technical Specifications DUETTO LIGHT 12A Active Fullrange Loudspeakers Dimensions: 16”(L) x 12”(W) x 23(H) / 405mm x 305mm x 585mm Weight: 38.8 Lbs. / 17.6 kg Environmental conditions: Operational temperature: 5° to 35° C (41° to 95° F) Operational humidity: 25 to 85% RH (non-condensation) Storage temperature:... - Page 20 The information contained in this manual have been carefully drawn up and checked. However no responsibility will be assumed for any incorrectness. This manual cannot cover all the possible contingencies which may arise during the product installation and use. Should further information be desired, please contact us or our local distributor.
