THERMEAU S140 Owner's Manual

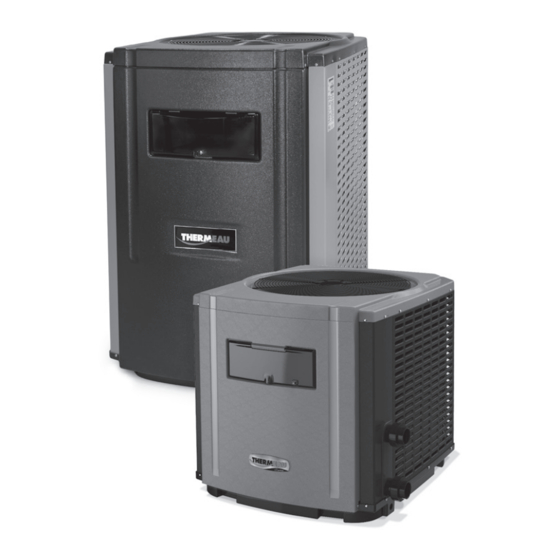

Residential and commercial pool heat pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

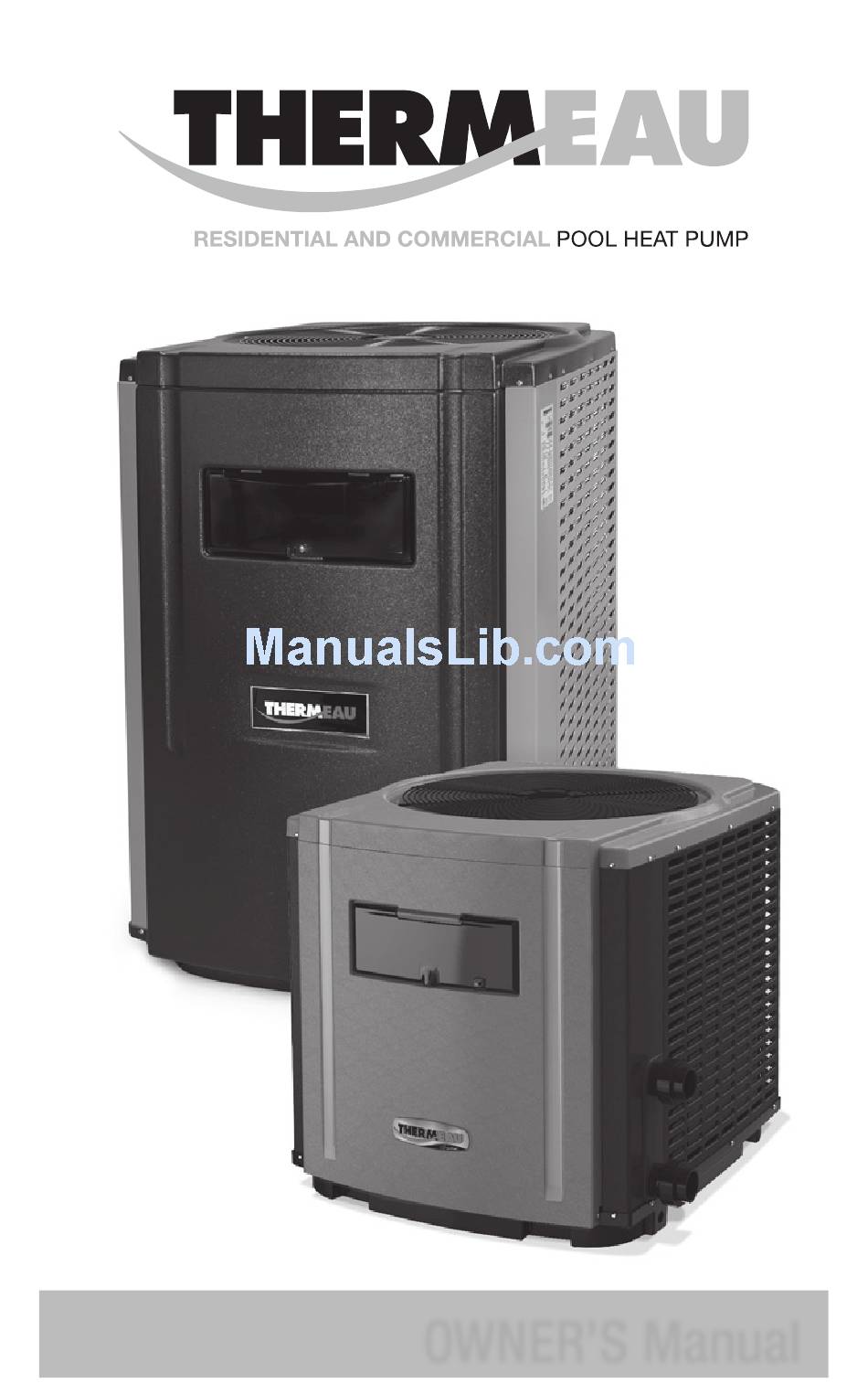

Owner's Manual
PRINTED IN CANADA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S140 and is the answer not in the manual?

Questions and answers

Related Manuals for THERMEAU S140

Summary of Contents for THERMEAU S140

  • Page 1 Owner’s Manual PRINTED IN CANADA...

  • Page 2: Table Of Contents

    Table of contents Introduction General safety Instructions Thermeau models’ specifications Installation Instructions location water piping multiple Heat Pump Connections Electrical Bonding Bonding and plumbing step-by-step instructions Electrical Connections Electrical Diagrams service Analyzer Control Electronic Temp. Controls Initial startup meaning of Display Codes...

  • Page 3: Introduction

    In general, compared to other types of pool heaters, such as gas or oil- fired, the THERmEAu pool heat pump has a lower heating capacity on a BTu/hr basis. Therefore, it needs to operate for a longer time to accomplish the desired results.
  • Page 4 Please read carefully whenever you call to request service for your heater, you must know your complete model and serial numbers. You can find this information on the name plate located on the right side of your heater. Please also record the purchase date of your device and your dealer’s name, address, and telephone number.

  • Page 5: General Safety Instructions

    General Safety Instructions We care for our customers we have provided important safety messages in this manual and on your heater. Always read and obey all safety messages. IMPORTANT The ImPORTANT sign calls attention to a note that provides important information or information essential to the completion of a task.
  • Page 6 CAUTION All electrical connections must be done by a qualified electrician and according to the local electrical codes. Always cut off the unit’s main power whenever the access panel is open or removed. Always install the machine outdoors (unless otherwise approved by the manufacturer), while respecting the minimal clearances needed for proper operation and heating.

  • Page 7: Thermeau Models' Specifications

    A robust and reliable product line Residential OPERATING S65 / TH65 S80 / TH80 S100 / TH100 S125 / TH125 S140 / TH140 SPEcIfIcATIONS Volts Hertz Phase Compressor amps 12.4 A 14.3 A 21.2 A 24.3 A 27.3 A Fan motor max.
  • Page 8 A robust and reliable product line Commercial MOdEl TH-200 TH-200-3 TH-200-3A Compressor ( HP ) Compressor type scroll scroll scroll Heat exchanger Titanium / PVC Titanium / PVC Titanium / PVC Heating range up to up to up to (°F / °C) 104°F / 40°C 104°F / 40°C 104°F / 40°C...

  • Page 9: Installation Instructions

    The THERmEAu pool heat pump is designed for outdoor installation and should not be installed in a fully enclosed area, such as a shed, garage, etc., unless ventilation is provided to ensure adequate air exchange for proper operation.

  • Page 10: Water Piping

    Water piping IMPORTANT The piping sequence is as follows: pool pump > filter > heater > pool. Auto- mated chlorine distribution systems, if used, must be placed downstream of the heater to minimize harm to the pool equipment. use rigid PVC piping if possible (sCH40 or sCH80).

  • Page 11: Multiple Heat Pump Connections

    Multiple Heat Pump Connections All plumbing on multiple heat pump installations must be done in parallel. An equal flow of water to each heat pump is important for optimum operation. NOTE: It may be necessary to adjust water pressure switch if a unit is installed below the water level.

  • Page 12: Electrical

    Electrical CAUTION The wiring of your THERmEAu pool heat pump should be performed by a qualified electrician in accordance with local requirements. WARNING The unit must always be deactivated before opening the access panel. Bonding WARNING Because all metals have different electrical potentials, all metal and electrical components of the pool system must be bonded together.

  • Page 13: Electrical Connections

    Electrical Connections WARNING The installation of the THERmEAu pool heater should be performed by a cer- tified electrician. To connect the electricity, you must unscrew the four screws of the front panel, then slide the electric cable in the hole located on the left or the right side of the base, and then insert it in the control box.

  • Page 14: Electrical Diagrams

    OwNER’s mANuAl...

  • Page 15: Service Analyzer Control

    Service Analyzer Control The control panel is factory set to display the temperature in Fahrenheit degrees. Heating mode Temperature Compressor running and parameter Heating mode display To raise the desired Access temperature or to to parameters change parameters To lower the desired temperature or to change parameters Fig.

  • Page 16: Electronic Temp. Controls

    Electronic Temp. Controls All units Description The control located on the front of your heat pump has a large three-character display for the water temperature, set points, and diagnostics (see figure 5 for front panel appearance). The three button keypad includes sET, DOwN arrow, and uP arrow buttons.
  • Page 17 Connecting to a Remote System This Pool Heater is compatible with most of all known remote systems in the industry. The following models’ diagrams show how to connect all of the remote systems to the Electronic Temp. Controller. For 2 wire remotes 1.

  • Page 18: Initial Startup

    Connection to AquaLink, Compool, Hayward, AquaLogic or any other 2 wire remote system with their own thermostat : • Remove gray jumper from terminals 1 and 2 on TB1 • Bring the two wires from the remote system to terminals 1 & 2 on Terminal Block 1 (TB1) •...

  • Page 19: Meaning Of Display Codes

    Meaning of Display Codes Service Analyzer Codes most problems will be detected by the service analyzer and a code will be displayed on the digital display of your heater. Display Meaning of codes The desired programmed temperature point is lower than 60°F (15°C). LP &...

  • Page 20: Troubleshooting

    Troubleshooting The pool heater is not running. Heat pump control set to OFF. Raise temperature set point above 60°F (15°C). Desired water temperature unit will automatically restart is reached. when the water temperature goes below the set point. main breaker is tripped. Reset it.
  • Page 21 There is water around the unit. while your THERmEAu pool To check if the water really is a heater is in the heating mode,...

  • Page 22: Requesting Assistance Or Service

    Requesting Assistance or Service IMPORTANT All service will be handled by an Authorized service Center. warranty may be voided if service is not done by an Authorized service Representative. Do not return the heater to your dealer as they do not provide service. Before calling for assistance or service, please check the “Troubleshooting”...

  • Page 23: Pool Heat Pump Warranty

    (5) years limited warranty. During the first (1) year, the costs incurred by the parts and labor needed to repair the compressor will be the responsibility of Thermeau Industries inc. During years two (2), three (3), four (4) and five (5), only parts will be covered by the warranty.
  • Page 24 Any alteration or repair by any person, agency or company not authorized by Thermeau inc. will void the warranty. Thermeau inc. is not liable for any dam- ages of any sort whatsoever, including incidental and consequential damages.
  • Page 25 Warranty Florida State Thermeau inc. warrants that the heat pump pool heater will be free of defects in workmanship and materials. The heat pump will be warranted for a period of two (2). years. During this period, all parts and labor to correct any defect in workmanship or materials will be the responsibility of Thermeau inc.
