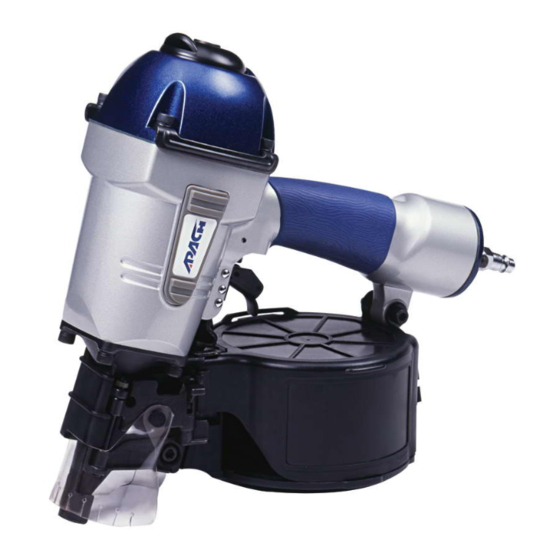

- Page 1 PNEUMATIC COIL NAILER RN-45E / CN-50E CN-57E / CN-565 CN-70E / CN-83E INSTRUCTION MANUAL READ AND UNDERSTAND THIS MANUAL BEFORE OPERATING THE TOOL IMPROPER USE OF THIS TOOL WILL RESULT IN DEATH OR SERIOUS INJURY KEEP THIS MANUAL WITH THE TOOL FOR FUTURE...
-
Page 3: Table Of Contents
PNEUMATIC COIL NAILER RN-45E / CN-50E / CN-57E CN-565 / CN-70E / CN-83E INSTRUCTION MANUAL INDEX SAFETY INSTRUCTIONS ................2 SPECIFICATIONS ..................6 COMPRESSED AIR SYSTEM ..............9 CONNECTION TO THE COMPRESSOR ...........9 TOOL OPERATION ..................10 TOOL MAINTENANCE................13 STORING....................13 TROUBLESHOOTING/REPAIRS .............14 READ AND UNDERSTAND THIS MANUAL BEFORE OPERATING THE TOOL. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS. Do not attempt to operate the tool until you read and understand all safety precautions and manual instructions. Ensure to follow the warnings and instructions to avoid serious personal injury or property damage. PRECAUTION AND INSTRUCTION ON USING THE TOOL WEAR EYE PROTECTION EQUIPMENT. - Page 5 SAFETY INSTRUCTIONS KEEP AWAY FROM A FLAMMABLE SUBSTANCE. Never use gasoline or other flammable liquids to clean the tool. Never use the tool near a flammable substance. Vapor in the tool will ignite by a spark as causing explosion. NEVER USE A WRONG FITTING. Do not use a check valve or any other fitting that allows air to remain in the tool which will be able to drive a fastener even after the air line is disconnected, possibly causing injury.
- Page 6 SAFETY INSTRUCTIONS NEVER DRIVE FASTENER ON TOP OF OTHERS. Do not drive fastener on top of other fasteners which fasteners may be deflected possibly causing injury. NEVER DRIVE FASTENER AT OVER STEEP ANGLE. Do not drive fastener with the tool at an overly steep angle as this may cause deflection of fasteners which could cause injury.
- Page 7 SAFETY INSTRUCTIONS USE EXTRA CARE WHEN EVALUATING PROBLEM TOOLS. UNLOADING THE FASTENERS AFTER FINISHING WORK. CHECK CONTACT ARM MECHANISM AND TRIGGER FREQUENTLY. NO HOSE PLAY, RESPECT THE TOOL AS A WORKING IMPLEMENT, WORK SAFELY. ALWAYS ASSUME THAT TOOL CONTAINS FASTENERS. DO NOT USE THE TOOL AS A HAMMER.
-
Page 8: Specifications
SPECIFICATIONS TOOLS LOADING Model WEIGHT HEIGHT WIDTH LENGTH CAPACITY 2.6 kg 283mm 118mm 269mm RN-45E 120 pcs 5.7 lb 11 1/8” 4 5/8” 10 5/8” 2.18 kg 116mm 275mm 265mm CN-50E 400 pcs 4.8 lb 4 3/5” 10.8” 10.4” 2.5 kg... - Page 9 SPECIFICATIONS SHANK TYPE SMOOTH RING SCREW NAIL TIP TYPE DIAMOND BLUNT DIAMOND BLUNT CHISEL AIR SUPPLY SYSTEM RECOMMENDED OPERATING 70 ~ 100 p.s.i. PRESSURE 5 ~ 7 bar MAXIMUM PERMISSIBLE 120 p.s.i. / 8 bar OPERATING PRESSURE DO NOT EXCEED!! 1.48 L at 90 p.s.i.
-
Page 10: Technical Data
SPECIFICATIONS TECHNICAL DATA NOISE CHARACTERISTIC VALUES In accordance with EN12549:1999, Noise test code for fastener driving tools, to determine and record these values. A-weighted single-event sound pressure level: L WA, 1S, d RN-45E CN-50E CN-565 CN-57E CN-70E CN-83E 95.96dBA 95.56dBA 96.7dBA... -
Page 11: Compressed Air System
COMPRESSED AIR SYSTEM USE 3-PIECE AIRSET (filter, regulator, oiler) Oiler can provide oil circulation through tool. Filter can remove liquid and impurities, which can rust or wear internal parts of the tool. Oil level in the oiler and the filter daily must be checked and drained when necessary to increases the efficiency and prolong the life of tool. -
Page 12: Tool Operation
TOOL OPERATION BEFORE OPERATING THE TOOL READ AND UNDERSTAND THE PRECAUTIONS AND WARNINGS CONTAINED IN THIS MANUAL. REFER TO “TOOL SPECIFICATIONS” IN THIS MANUAL TO IDENTIFY THE OPERATING SYSTEM ON YOUR TOOL. TOOL OPERATION CHECK 1. Disconnect the air supply from the tool. 2. -
Page 13: Nail Loading
TOOL OPERATION NAIL LOADING Pull down door latch to swing door open. Swing magazine cover open. Move up or down the nail support by pull up and twist to change setting. The nail support should be adjusted correctly to the position indicated in inches or millimeters inside magazine. - Page 14 TOOL OPERATION TEST OPERATION Protect your eyes and ears. Wear Z87.1 safety glasses with side shields. Wear hearing protection. Employers and users are responsible for ensuring the user or anyone near the tool wears this safety protection. Add a few drops of lubricant, such as UNOCAL RX22, into the air inlet.
-
Page 15: Tool Maintenance
TOOL MAINTENANCE USE A 3-PIECE AIRSET Failure to use a 3-piece airset allows the moisture and dirt inside compressor to go through into the tool directly. Wear and rust may be caused and perform poorly. USE RECOMMEND OIL Place 2 or 3 drops of spindle oil, UNOCAL RX22, into air inlet. If in-line oiler is used, manual lubrication through the air is not required daily. -
Page 16: Troubleshooting/Repairs
Troubleshooting/Repairs Serious injury could occur if followed problems happen. The troubleshooting and/or repairs must be carried out only by the Apach Co. LTD qualified specialists or an authorized service center only. Problem Cause Repair Tool dry, lacks lubrication Use Air Tool Lubricant... - Page 17 Troubleshooting/Repairs Problem Cause Repair Loose screws Tighten and recheck Air leaking at cap Seal or gasket worn or Replace gasket or seal damaged Head valve bumper worn or Replace bumper damaged Loose screws Tighten and recheck Air leaking at nose Bumper worn or damaged Replace bumper O-rings worn or damaged...
- Page 18 Troubleshooting/Repairs Problem Cause Repair Bumper worn or damaged Replace bumper Fasteners skip Dirt in driver channel Disassemble and clean nose and driver Quick connector leaks air Replace quick connect fittings Pusher spring damaged Replace spring Piston O-ring worn or Replace O-ring, check driver damaged Trigger valve O-rings worn or Replace O-rings...
- Page 19 Notes:...
- Page 20 176 Industrial 9 Rd., Tali City Taichung County, Taiwan 412 Tel: +886-4-24915576 Fax: +886-4-2491-5580 www.apach.com.tw info@apach.com.tw M010002A-06/07 The content of this manual might be changed without notice for improvement.
