SERVICE MANUAL
System
Colour system
SE230B/SE630B/SE730B/SE830B:
SECAM (L)
VHF F2 to F10
UHF F21 to F69
CATV B to Q
HYPER S21 to S41
PAL (B/G)
VHF E2 to E12
VHF italian channels A to H
UHF E21 to E69
CATV S01 to S05, S1 to S20
HYPER S21 to S41
SE230D/SE630D/SE630E/SE730D/SE730E/
SE737E/SE830D/SE830E/SX730D/SX730E/
SX737D:
PAL (B/G)
VHF E2 to E12
VHF italian channels A to H
UHF E21 to E69
CATV S01 to S05, S1 to S20
HYPER S21 to S41
SE230G/SE730G/SE830G:
PAL (I)
UHF B21 to B69
SLV-SE230/SE430/SE630/SE730/SE737/
RMT-V405/V405A/V406/V406A/V406B/V407A/V407B/V407C

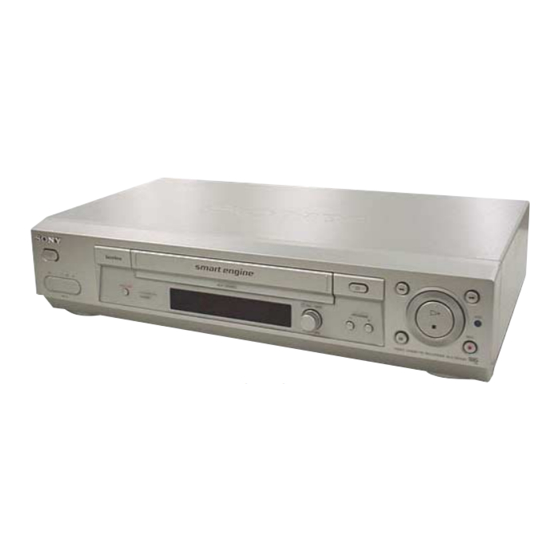

Photo: SLV-SE830N
RMT-V407A
SPECIFICATIONS
SE230I/SE730I:
PAL (I)
VHF IA to IJ, SA10 to SA13
UHF B21 to B69
CATV S01 to S05, S1 to S20
HYPER S21 to S41
SE430K/SE630N/SE730N/SE830N/SX730N:
PAL (B/G, D/K)
VHF E2 to E12, R1 to R12
UHF E21 to E69, R21 to R69
CATV S1 to S41, S01 to S05
RF output signal
SE230D/SE230G/SE230I/SE430K/SE630D/
SE630E/SE630N/SE730D/SE730E/SE730G/
SE730I/SE730N/SE737E/SE830D/SE830E/
SE830G/SE830N/SX730D/SX730E/SX730N/
SX737D:
UHF channels 21 to 69
Aerial out
75-ohm asymmetrical aerial socket
Tape speed
SE230B:
SP: PAL
23.39 mm/s (recording/playback)
NTSC 33.35 mm/s (playback only)
SECAM
23.39 mm/s (recording/playback)
SE830/SX730/SX737
SLV-SE230B/SE230D/SE430K/SE630B/SE630D/SE630E/SE630N/
SE730B/SE730D/SE730E/SE730N/SE737E/SE830B/SE830D/
SE830E/SE830N/SX730D/SX730E/SX730N/SX737D
SLV-SE230G/SE230I/SE730G/SE730I/SE830G
Refer to the SERVICE MANUAL of VHS MECHANI-
CAL ADJUSTMENT MANUAL VII for MECHANICAL
ADJUSTMENTS. (9-921-790-11)
VIDEO CASSETTE RECORDER
AEP Model
UK Model
TS-10 MECHANISM
MESECAM
23.39 mm/s (playback only)
LP: NTSC 16.67 mm/s (playback only)
SECAM
11.70 mm/s (recording/playback)
MESECAM
11.70 mm/s (playback only)
SE230D:
SP: PAL
23.39 mm/s (recording/playback)
NTSC 33.35 mm/s (playback only)
LP: NTSC 16.67 mm/s (playback only)
SE230G/SE230I/SE630D/SE630E/SE730D/
SE730E/SE730G/SE730I/SE737E/SE830D/
SE830E/SE830G/SX730D/SX730E/SX737D:
SP: PAL
23.39 mm/s (recording/playback)
NTSC 33.35 mm/s (playback only)
LP: PAL
11.70 mm/s (recording/playback)
NTSC 16.67 mm/s (playback only)
EP: NTSC 11.12 mm/s (playback only)
— Continued on next page —
Advertisement
Table of Contents
Related Manuals for Sony SLV-SE630
Summarization of Contents
SAFETY AND SERVICE GUIDELINES
SAFETY CHECK-OUT
Procedures to ensure safety after service repairs are completed.
IMPORTANT SERVICE GUIDE
Key points and advice for performing service on the VCR.
GENERAL OPERATION AND SETUP
Getting Started
Instructions for unpacking, connecting, and initial setup of the VCR.
Playing a tape
Instructions on how to insert and play a cassette tape.
Recording TV programmes
Steps for recording television programs using various methods.
Troubleshooting
Common problems and their solutions for VCR operation.
MECHANICAL AND COMPONENT OVERVIEW
DISASSEMBLY
Detailed steps for disassembling the VCR into its main components.
P.C.BOARDS
Lists the different Printed Circuit Boards (PCBs) within the VCR.
REPAIR PARTS LIST
List of parts required for repair, including exploded views.
TECHNICAL DIAGNOSTICS AND CALIBRATION
SCHEMATIC DIAGRAMS
Technical diagrams illustrating the VCR's internal circuitry.
ALIGNMENT AND ADJUSTMENT
Procedures for calibrating and adjusting the VCR's performance.
